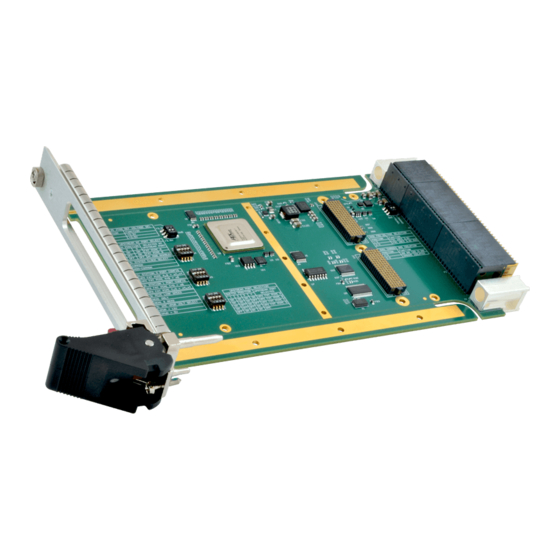

Single-slot 3u vpx bus xmc carrier card with p16 support vpx switch card

Advertisement

Quick Links

Acromag VPX4812 User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VPX4812 and is the answer not in the manual?

Questions and answers

Summary of Contents for Acromag VPX4812

  • Page 1 Artisan Technology Group is your source for quality new and certified-used/pre-owned equipment SERVICE CENTER REPAIRS WE BUY USED EQUIPMENT • FAST SHIPPING AND DELIVERY Experienced engineers and technicians on staff Sell your excess, underutilized, and idle used equipment at our full-service, in-house repair center We also offer credit for buy-backs and trade-ins •...
  • Page 2 XMC Carrier Card with P16 Support VPX Switch Card USER’S MANUAL ACROMAG INCORPORATED 30765 South Wixom Road Wixom, MI 48393-2417 U.S.A. Tel: (248) 295-0310 Copyright 2019, Acromag, Inc., Printed in the USA. Data and specifications are subject to change without notice. 8501022D...
  • Page 3 Single-Slot 3U VPX Bus XMC Carrier Card/Switch Card Module The information contained in this manual is subject to change without notice. Acromag, Inc. makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.
  • Page 4: Table Of Contents

    VPX4812/4814 User’s Manual Single-Slot 3U VPX Bus XMC Carrier Card/Switch Card Module General Information ........................5 Key Features ............................. 5 Introduction ............................. 6 Module and Backplane Profiles ....................... 6 Build Levels ............................7 Ordering Information ........................8 Preparation For Use ......................... 9 Unpacking and Inspection ........................
  • Page 5 VPX4812/4814 User’s Manual Single-Slot 3U VPX Bus XMC Carrier Card/Switch Card Module EMI/EMC Regulatory Compliance ....................23 11.0 Service and Repair ......................... 24 Service and Repair Assistance ......................24 Preliminary Service Procedure ....................... 24 Where to Get Help ......................... 24 Appendix A –...
  • Page 6: General Information

    The VPX4812 supports up to four VPX Fat Pipe (x4) connections to other cards in the system at Gen 2.0 speeds. The VPX4812 can be used as a switch card allowing an upstream Fat Pipe or Double Fan Pipe connection –...
  • Page 7: Introduction

    The VPX4812 has two primary functions that can be utilized in a VPX system simultaneously. 1. XMC Carrier Card – The VPX4812 supports a Double Fat Pipe (x8) connection from an XMC module to the on-board PCIe switch. The voltage used to power the XMC module can be toggled between 5V or 12V using a DIP switch located on the VPX4812.
  • Page 8: Build Levels

    The VPX4814 disconnects the lower PCIe lanes on P1 while retaining all of the XMC carrier card functionality of the VPX4812. This allows it to be used as an XMC carrier card in a wider range of OpenVPX backplane profiles including profiles that contain Ethernet control plane interfaces on...
  • Page 9: Ordering Information

    VPX4812/4814 User’s Manual Single-Slot 3U VPX Bus XMC Carrier Card/Switch Card Module Ordering Information Available Models VPX4812-LF VPX4812 Air-cooled Model VPX4812-CC-LF VPX4812 Conduction-cooled Model VPX4812-REDI-LF VPX4812 REDI Model VPX4814-LF VPX4814 Air-cooled Model VPX4814-CC-LF VPX4814 Conduction-cooled Model VPX4814-REDI-LF VPX4814 REDI Model Acromag, Inc.
  • Page 10: Preparation For Use

    For repairs to a product damaged in shipment, refer to the Acromag Service Policy to obtain return instructions. It is suggested that salvageable shipping cartons and packing material be saved for future use in the event the product must be shipped.
  • Page 11: Operational Block Diagram

    VPX4812/4814 User’s Manual Single-Slot 3U VPX Bus XMC Carrier Card/Switch Card Module Operational Block Diagram Acromag, Inc. Tel: 248-295-0310 - 10 - www.acromag.com...
  • Page 12: Board Layout

    VPX4812/4814 User’s Manual Single-Slot 3U VPX Bus XMC Carrier Card/Switch Card Module Board Layout Acromag, Inc. Tel: 248-295-0310 - 11 - www.acromag.com...
  • Page 13: Connectors

    PCIE_VPX_P15_TXN Note 1: These signals are unconnected on all VPX4814 models. RX is defined as a signal that is an input to the VPX4812. TX is defined as a signal that is an output from the VPX4812. Acromag, Inc. Tel: 248-295-0310 - 12 - www.acromag.com...
  • Page 14: P2 Connector

    VPX4812/4814 User’s Manual Single-Slot 3U VPX Bus XMC Carrier Card/Switch Card Module P2 Connector P2 Wafer J16_SIO11_P J16_SIO11_N J16_SIO10_P J16_SIO10_N Unused J16_SIO9_P J16_SIO9_N J16_SIO8_P J16_SIO8_N J16_SIO7_P J16_SIO7_N J16_SIO6_P J16_SIO6_N Unused J16_SIO5_P J16_SIO5_N J16_SIO4_P J16_SIO4_N J16_SIO3_P J16_SIO3_N J16_SIO2_P J16_SIO2_N Unused J16_SIO1_P...
  • Page 15: J16 Connector

    VPX4812/4814 User’s Manual Single-Slot 3U VPX Bus XMC Carrier Card/Switch Card Module J16 Connector J16_DP00_P J16_DP00_N J16_DP01_P J16_DP01_N J16_DP02_P J16_DP02_N J16_DP03_P J16_DP03_N J16_DP04_P J16_DP04_N J16_DP05_P J16_DP05_N J16_DP06_P J16_DP06_N J16_DP07_P J16_DP07_N J16_SIO10_N J16_SIO11_N J16_DP08_P J16_DP08_N J16_SIO10_P J16_DP09_P J16_DP09_N J16_SIO11_P J16_SIO8_N J16_SIO9_N...
  • Page 16: Switch Settings

    VPX4812/4814 User’s Manual Single-Slot 3U VPX Bus XMC Carrier Card/Switch Card Module Switch Settings The following describes the VPX4812 switches with their default positions and their functions. SW1 – Upstream Port Selection Switch Position Selected Upstream Port VPX Fat Pipe A (default)
  • Page 17 VPX4812/4814 User’s Manual Single-Slot 3U VPX Bus XMC Carrier Card/Switch Card Module SW4-1:3 – Upstream NT Port Selection Switch Position Selected NT Upstream Port VPX Fat Pipe A VPX Fat Pipe B NT Mode Disabled (default) Note: In addition to the switch configuration, there are settings for the PEX8624 that must be programmed to the on- board EEPROM device to enable Non-Transparent Mode.
  • Page 18: Front Panel Layout

    Front Panel Layout VPX4812 Front Panel On the front panel of air-cooled VPX4812 assemblies, there are 5 port status LED’s. The first four LED’s indicate the PCIe link status for each of the four Fat Pipe connections to other slots on the VPX backplane.
  • Page 19: Handling

    VPX4812/4814 User’s Manual Single-Slot 3U VPX Bus XMC Carrier Card/Switch Card Module Handling Modules should be handled in ESD-safe work areas in order to prevent damage to sensitive components from electrostatic discharges. These areas must be designed and maintained to prevent ESD damage.
  • Page 20: Installation

    Single-Slot 3U VPX Bus XMC Carrier Card/Switch Card Module Installation IMPORTANT: The VPX4812 has been specifically design for use with 3U VPX backplanes and my not be compatible with some 6U backplanes. Plugging the board into an unsupported 6U VPX backplane may cause permanent damage.
  • Page 21: 10.0 Specifications

    VPX4812-LF and VPX4814-LF front panel is 1.0” based on VITA 48.1. Please contact factory for IEEE 1101.10 1.0” and 0.8” front panel options. Power Requirements The VPX4812 requires +3.3V and +5V from the VPX backplane. The +/-12V supplies are used only if required by the XMC module. Power Consumption No XMC Card Installed: +3.3V: <1W...
  • Page 22: Auxiliary Supply

    Since the ramp up times of the 3.3 V and 5 V system power source and the onboard power source will vary with load, the time taken for the VPX4812 to come out of reset will vary from system to system. It is the software’s responsibility to account for this.
  • Page 23: Environmental

    Environmental Caution The VPX4812 requires air-flow of at least 200 linear-feet/minute for the air cooled version, plus what is required for an XMC device installed on this module. If the conduction cooled version is operating on an extender card, it requires air-flow of at least 300 linear-feet/minute across it.
  • Page 24: Emi/Emc Regulatory Compliance

    RoHS Directive 2011/65/EU – All Models In compliance per EN 50581 Air-cooled build levels of the VPX4812/14 are designed for use in systems meeting VDE class B, EN and FCC regulations for EMC emissions and susceptibility. Conduction cooled and REDI build levels of the VPX4812/14 are intended for integration into EMC hardened cabinets/boxes.
  • Page 25: 11.0 Service And Repair

    CAUTION: POWER MUST BE TURNED OFF BEFORE REMOVING OR INSERTING BOARDS Where to Get Help If the problem persists, the next step should be to visit the Acromag worldwide web site at http://www.acromag.com. Our web site contains the most up-to-date product and software information.
  • Page 26: Appendix A - Accessory Modules

    TRANS-V112 The TRANS-V112 is the rear transition module for the VPX4812 and is used in backplanes that bring out the rear I/O signals from the VPX4812. If you are using a custom backplane, you will not need the RTM. The TRANS-V112 brings out the P16 rear I/O signals from the XMC slot on the VPX4812.
  • Page 27 VPX4812/4814 User’s Manual Single-Slot 3U VPX Bus XMC Carrier Card/Switch Card Module Switch Settings Orb ground is connected to digital (default) ground. Orb ground is isolated from digital ground. (ORBGND) Unused Unused Connectors RP1 Connector RP1 Wafer Unused Unused Unused...
  • Page 28 VPX4812/4814 User’s Manual Single-Slot 3U VPX Bus XMC Carrier Card/Switch Card Module Unused Unused Unused Unused J16_DP18_N J16_DP18_P P1 Connector Pin Number Description J16_DPO0_P J16_DPO10_P J16_DPO0_N J16_DPO10_N J16_DPO1_P J16_DPO11_P J16_DPO1_N J16_DPO11_N J16_DPO2_P J16_DPO12_P J16_DPO2_N J16_DPO12_N J16_DPO3_P J16_DPO13_P J16_DPO3_N J16_DPO13_N J16_DPO8_P...
  • Page 29 VPX4812/4814 User’s Manual Single-Slot 3U VPX Bus XMC Carrier Card/Switch Card Module P2 Connector Pin Number Description J16_DP04_P J16_DP14_P J16_DP04_N J16_DP14_N J16_DP05_P J16_DP15_P J16_DP05_N J16_DP15_N J16_DP06_P J16_DP16_P J16_DP06_N J16_DP16_N J16_DP07_P J16_DP17_P J16_DP07_N J16_DP17_N J16_DP18_P J16_DP19_P J16_DP18_N J16_DP19_N J16_SIO10_P J16_SIO11_P J16_SIO10_N J16_SIO11_N Acromag, Inc.
  • Page 30: Certificate Of Volatility

    VPX4812/4814 User’s Manual Single-Slot 3U VPX Bus XMC Carrier Card/Switch Card Module Certificate of Volatility Certificate of Volatility Acromag Model Manufacturer: VPX4812-LF Acromag, Inc. VPX4814-LF 30765 Wixom Rd TRANS-V112-LF Wixom, MI 48393 Volatile Memory Does this product contain Volatile memory (i.e. Memory of whose contents are lost when power is removed) ■...
  • Page 31: Revision History

    VPX4812/4814 User’s Manual Single-Slot 3U VPX Bus XMC Carrier Card/Switch Card Module Revision History The following table shows the revision history for this document: Release Date Version EGR/DOC Description of Revision 4/25/2014 MDW/ARP Initial Acromag release. 9/13/2016 MDW/ARP Added VPX4814 information.
