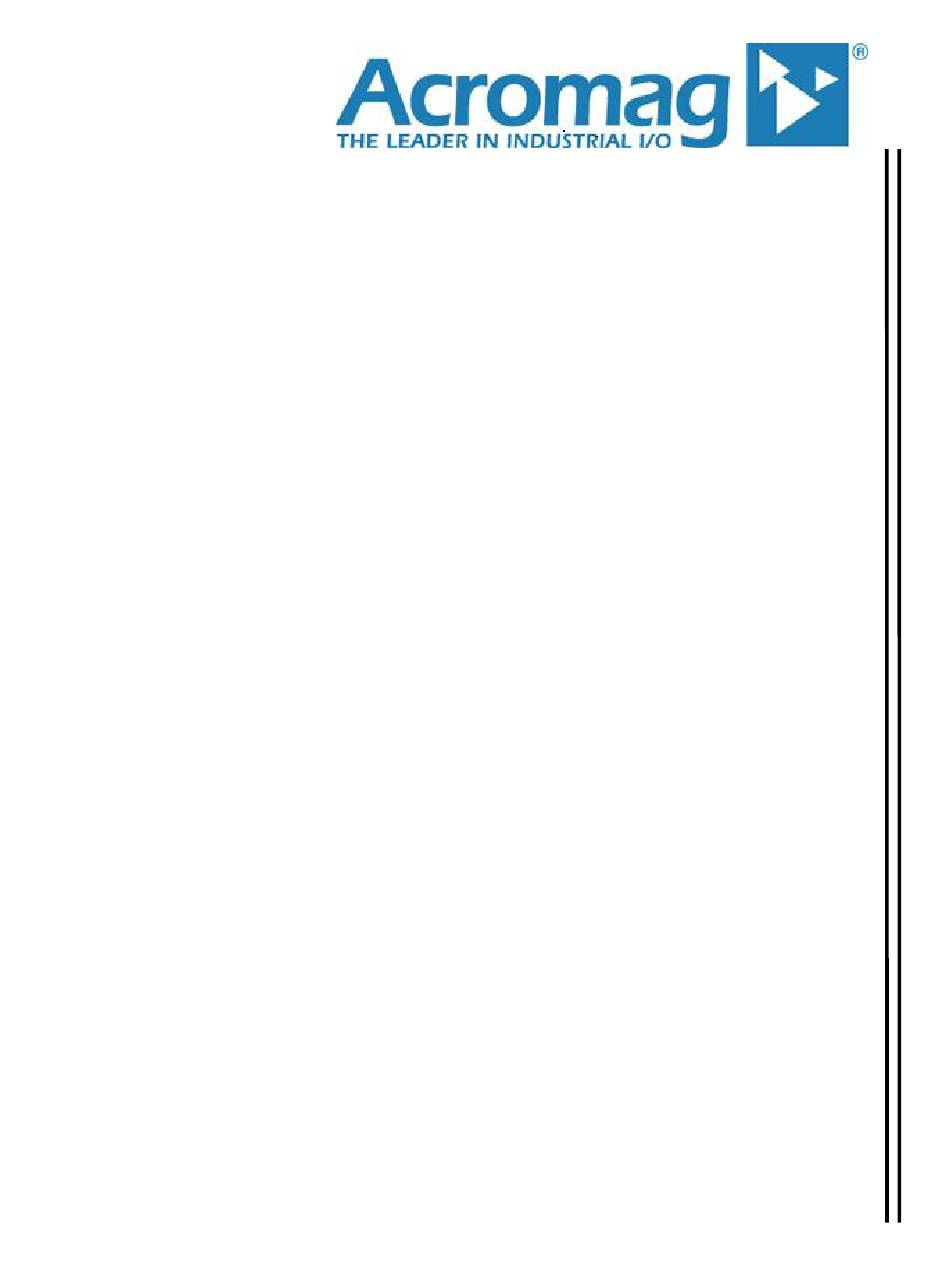

XMCAP2022 XMC AcroPack Carrier Boards
For ARCX Applications
USER'S MANUAL
ACROMAG INCORPORATED
30765 South Wixom Road
Wixom, MI 48393-2417 U.S.A.
Tel: (248) 295-0310
Copyright 2019, Acromag, Inc., Printed in the USA.
Data and specifications are subject to change without notice.
8501131C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XMCAP2022 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Acromag XMCAP2022

Summary of Contents for Acromag XMCAP2022

  • Page 1 XMCAP2022 XMC AcroPack Carrier Boards For ARCX Applications USER’S MANUAL ACROMAG INCORPORATED 30765 South Wixom Road Wixom, MI 48393-2417 U.S.A. Tel: (248) 295-0310 Copyright 2019, Acromag, Inc., Printed in the USA. Data and specifications are subject to change without notice. 8501131C...

  • Page 2: Table Of Contents

    Trademark, Trade Name and Copyright Information ................4 Environmental Protection Statement ....................4 XMCAP2022 OVERVIEW ........................4 Ordering Information ......................... 5 KEY XMCAP2022 FEATURES ........................5 SIGNAL INTERFACE PRODUCTS ......................5 JTAG Adapter Cable ..........................5 PREPARATION FOR USE ........................6 UNPACKING AND INSPECTION ......................
  • Page 3 AcroPack Series XMCAP2022 XMC Carrier Board Connectors ............................27 POWER ..............................27 PCIe BUS COMPLIANCE ........................28 ENVIRONMENTAL ..........................28 EMC Compliance ..........................28 Vibration and Shock Standard ......................28 Reliability Prediction ........................29 APPENDIX A ............................30 Heatsink Installation ........................... 30 APPENDIX B ............................

  • Page 4: General Information

    XMCAP2022 OVERVIEW The XMCAP2022 is a carrier for mini-PCIe or AcroPack mezzanine modules in an XMC form factor. This carrier board provides a modular approach to system assembly, since each carrier can be populated with any combination of analog input/output, digital input/output, communication, etc.

  • Page 5: Ordering Information

    AcroPack Series XMCAP2022 XMC Carrier Board Ordering Information The XMCAP2022-LF was designed for use in the ARCX4000 series. It is the same as the XMCAP2021-LF but with different routing to the Rear I/O connectors P14 and P16. Model I/O Type XMCAP2022-LF Rear (P14 &...

  • Page 6: Preparation For Use

    It is important that the user employ satisfactory overall system design. It is understood and agreed by the Buyer and Acromag that this is the Buyer's responsibility. WARNING: This board utilizes static sensitive components and should only be handled at a static-safe workstation.

  • Page 7: Board Configuration

    Power should be removed from the board when changing switch configurations or when installing AcroPack modules, cables and field wiring. Figure 1 XMCAP2022 Primary Side Refer to the specifications for loading and power requirements. Be sure that the system power supplies are able to accommodate the power requirements of the carrier board, plus the installed AcroPack modules within the voltage tolerances specified.

  • Page 8: Carrier Address Assignment

    Addressing (GA) bits of the XMC P15 connector. This should automatically assign a unique address to the XMCAP2022 board. If the GA bits are not supplied by the XMC carrier onto which the XMCAP2022 board is installed, SW1 may be used to select address bits A3 and A4. Figure 1 shows the location of switch SW1.

  • Page 9: Acropack Module Installation

    Power should be removed from the carrier board when installing AcroPack modules, cables, termination panels, and field wiring. Refer to Figure 4 while reading this section. Place the XMCAP2022 flat on an anti-static surface for support. To install, first insert the edge of the AcroPack module into the carrier connector at an angle similar to that shown in the figure.

  • Page 10: Field Grounding Considerations

    Rear Field I/O Connectors Field I/O connections on the XMCAP2022 model are made via the P14 and P16 connectors. The Field I/O connections from the AcroPack module in Site A are available through the XMC P16 and PMC P14 connector. The Field I/O connections from the AcroPack module in Site B are available through the PMC P14 connector.

  • Page 11: Acropack Field I/O Connectors

    AcroPack Series XMCAP2022 XMC Carrier Board See Table 2.A below for pin assignments for Slot A and Table 2.B for pin assignments for Slot B. AcroPack Field I/O Connectors The field side connector of AcroPack modules mate to Samtec SS5-50-3.00-L-D-K-TR socket connectors on the carrier board.
  • Page 12 AcroPack Series XMCAP2022 XMC Carrier Board XMCAP2022 XMCAP2022 Carrier Module Field A I/O Signal Rear I/O Rear I/O P1, P2 Connection Connection Samtec Number (Site A - P16) (Site A - P14) SS5-50-3.00-L-D-K-TR Field A I/O 13 Field A I/O 14...
  • Page 13 AcroPack Series XMCAP2022 XMC Carrier Board XMCAP2022 XMCAP2022 Carrier Module Field A I/O Signal Rear I/O Rear I/O P1, P2 Connection Connection Samtec Number (Site A - P16) (Site A - P14) SS5-50-3.00-L-D-K-TR Reserved/isolation Field A I/O 31 Field A I/O 32...
  • Page 14 AcroPack Series XMCAP2022 XMC Carrier Board XMCAP2022 XMCAP2022 Carrier Module Field A I/O Signal Rear I/O Rear I/O P1, P2 Connection Connection Samtec Number (Site A - P16) (Site A - P14) SS5-50-3.00-L-D-K-TR Reserved/isolation Reserved/isolation Field A I/O 49 Field A I/O 50...
  • Page 15 AcroPack Series XMCAP2022 XMC Carrier Board XMCAP2022 Carrier Module Field B I/O Signal Rear I/O P1, P2 Connection Samtec Number (Site B - P14) SS5-50-3.00-L-D-K- Reserved/isolation Field B I/O 13 Field B I/O 14 Reserved/isolation Reserved/isolation Field B I/O 15...
  • Page 16 AcroPack Series XMCAP2022 XMC Carrier Board XMCAP2022 Carrier Module Field B I/O Signal Rear I/O P1, P2 Connection Samtec Number (Site B - P14) SS5-50-3.00-L-D-K- Reserved/isolation Reserved/isolation Field B I/O 31 Field B I/O 32 Reserved/isolation Reserved/isolation Field B I/O 33...

  • Page 17: Arcx 4000 Series Cross Reference

    AcroPack Series XMCAP2022 XMC Carrier Board XMCAP2022 Carrier Module Field B I/O Signal Rear I/O P1, P2 Connection Samtec Number (Site B - P14) SS5-50-3.00-L-D-K- Field B I/O 48 Reserved/isolation Reserved/isolation Field B I/O 49 Field B I/O 50 Reserved/isolation...
  • Page 18 AcroPack Series XMCAP2022 XMC Carrier Board Pin 38999 Pin PMC Pin XMC XMCAP2022 Signal J3/J5* J14/J24* J16/J26* Name Field B I/O 22 26 N/A #N/A Field B I/O 23 Field B I/O 24 Field B I/O 25 Field B I/O 26...
  • Page 19 AcroPack Series XMCAP2022 XMC Carrier Board Pin 38999 Pin PMC Pin XMC XMCAP2022 Signal J3/J5* J14/J24* J16/J26* Name Field B I/O 50 64 N/A #N/A Field A I/O 41 Field A I/O 42 Field A I/O 50 Field A I/O 49...
  • Page 20 AcroPack Series XMCAP2022 XMC Carrier Board Pin 38999 Pin PMC Pin XMC XMCAP2022 Signal J3/J5* J14/J24* J16/J26* Name Field A I/O 29 Field A I/O 30 Field A I/O 32 Field A I/O 31 #N/A Field A I/O 21 Field A I/O 22...

  • Page 21: Mini-Pcie Connectors

    Table 3. WARNING: When installing a commercial mini-PCIe module onto the XMCAP2022 board be sure that pin 45 on the module's mini-PCIe connector is not grounded or damage to the module may result. Table 3 Mini-PCIe Connectors J1 and J2 Pin Assignments...

  • Page 22: Xmc/Pcie Bus Connections

    Notes: 1. Asterisk (*) is used to indicate an active-low signal. 2. +3.3Vaux power is not used by the carrier. Contact Acromag to enable +3.3Vaux power to AcroPack modules and/or ID EEPROM. The carrier provides +3.3V power to the modules.
  • Page 23 AcroPack Series XMCAP2022 XMC Carrier Board board). JTAG is provided for developing applications that use Acromag’s FPGA AcroPack modules. An adapter cable is available to connect to a Xilinx Platform USB II programming device (or equivalent). See Signal Interface Products for ordering information.

  • Page 24: Programming Information

    Volt, and -12V supplies are sourced from +3.3 Volt host power. SLOT ADDRESSING The XMCAP2022 carrier can be assigned by a combination of host supplied Geographical Addressing bits and/or by selecting the appropriate combination of SW1 switch settings. The slot address is 8 bits long and...

  • Page 25: Jtag

    AcroPack module(s). WARNING: When installing a commercial mini-PCIe module onto the XMCAP2022 board be sure that pin 45 on the module's mini-PCIe connector is not grounded or damage to the module may result.

  • Page 26: Service And Repair

    5. SERVICE AND REPAIR Surface-Mounted Technology (SMT) boards are generally difficult to repair. It is highly recommended that a non-functioning board be returned to Acromag for repair. The board can be damaged unless special SMT repair and service tools are used. Further, Acromag has automated test equipment that thoroughly checks the performance of each board.

  • Page 27: Specifications

    J3 (JTAG) ........6-pin micro connector (Molex 78171-5006) POWER Board power requirements are a function of the installed AcroPack modules. The current specified below is for the XMCAP2022 carrier board only. +3.3 Volts (5 %) 140 mA Typical VPWR = +5V (5 %) 200 mA Typical VPWR = +12V (8 %) <100 mA Typical...

  • Page 28: Pcie Bus Compliance

    Note: This is a Class A product Vibration and Shock Standard The XMCAP2022 is designed to pass the following Vibration and Shock standards. Vibration, Sinusoidal Operating ... Designed to comply with IEC 60068-2-6: 10-500Hz, 5G, 2 Hours/axis Vibration, Random Operating ..Designed to comply with IEC 60068-2-64: 10-500Hz, 5G-rms, 2 Hours/axis Shock, Operating ......

  • Page 29: Reliability Prediction

    AcroPack Series XMCAP2022 XMC Carrier Board Reliability Prediction MTBF (Mean Time Between Failure): MTBF in hours using MIL-HDBK-217F, FN2. Per MIL-HDBK-217, Ground Benign, Controlled, G Temperature MTBF (Hours) MTBF (Years) Failure Rate (FIT 25°C 1,676,654 191.4 596.4 40°C 1,064,183 121.5 939.7...

  • Page 30: Heatsink Installation

    AcroPack Series XMCAP2022 XMC Carrier Board 7. APPENDIX A Heatsink Installation The following instructions describe how to remove the existing ARCX generic XMC heatsink and install a custom XMCAP202x heatsink. 1. Refer to the ARCX box disassembly instructions found in the ARCX box manual to remove the assembly from its enclosure.

  • Page 31: Xmcap202X Module Installation

    AcroPack Series XMCAP2022 XMC Carrier Board 3. Remove the 5 screws shown below to remove the generic XMC heatsink. 4. Install the custom heatsink as shown, using the 4 screws provided. 8. APPENDIX B XMCAP202x Module Installation The following instructions describe how to install an XMCAP202x into an ARCX box. It is assumed that the ARCX has already been removed from its enclosure and the custom heatsink has been installed.
  • Page 32 AcroPack Series XMCAP2022 XMC Carrier Board 1. Remove the standard XMC standoffs shown below – these standoffs should already be installed on the ARCX carrier board. 2. Install the XMCAP202x on the carrier as shown below using the 4 screws provided.

  • Page 33: Certificate Of Volatility

    AcroPack Series XMCAP2022 XMC Carrier Board 9. CERTIFICATE OF VOLATILITY Certificate of Volatility Acromag Model Manufacturer: XMCAP2022-LF Acromag, Inc. 30765 Wixom Rd Wixom, MI 48393 Volatile Memory Does this product contain Volatile memory (i.e. Memory of whose contents are lost when power is removed) ■...

  • Page 34: Revision History

    AcroPack Series XMCAP2022 XMC Carrier Board 10. REVISION HISTORY Release Date Version EGR/DOC Description of Revision 18 JUN 2018 Prelim 19 JUN 2018 Prelim – AcroPack A pinout revised 31 JUL 2018 Prelim – pinout to 38999 revised, board configuration drawing updated and block diagram added.
