Westin 65-1305 Installation Instructions

Westin 65-1305 Installation Instructions

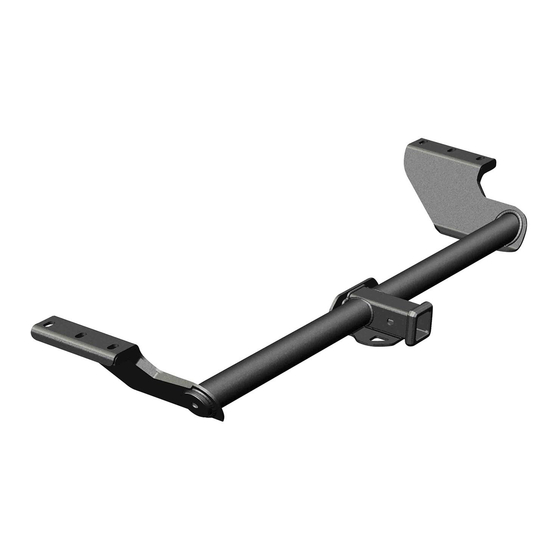

Class 3 receiver hitch for odyssey

Advertisement

AUTOMOTIVE PRODUCTS, INC.
ITEM
QUANTITY
1
1
2
4
3
4
4
4
5
2
6
2
7
2
8
2
WARNING: Never exceed the capacity ratings shown on the receiver hitch or the tow vehicle. See your vehicle's
owners guide for towing guidelines.
1.
Remove contents from box, verify if all parts listed are present and free from damage. Carefully read and understand all instruc-
tions before attempting installation. Failure to identify damage before installation could lead to a rejection of any claim.
2.
Start installation in the rear of the vehicle. Locate holes under the vehicle in where the M12 and M10 hardware will be mounted.
See Figure 1 & 2.
3.
Adjust and align center holes of the receiver hitch assembly as necessary. Loosely secure the receiver hitch assembly to the vehi-
cle. On the passenger side, mark location to drill a 1/2" hole. See Figure 2.
4.
Remove the receiver hitch assembly from vehicle. On the passenger side drill the 1/2" hole. Clean metal debris from hole.
5.
Insert both M10 bolt plates into place. On the driver side, the bolt plate will be placed in the already existing hole. On the pas-
senger side, the bolt plate will be placed in the recently drilled hole. See Figure 1 & 2.
NOTICE: This product complies with all safety specifications and requirements defined for V.E.S.C. regulation V-5 & SAE J684
Westin Automotive Products, Inc.
320 Covina Blvd
San Dimas, Ca. 91773
P.N.: 75-3069 REV A
ECO #: W14-0042
INSTALLATION INSTRUCTIONS
CLASS 3 RECEIVER HITCH
APPLICATION: ODYSSEY 1999-2015
APP PART # 65-1305
DESCRIPTION

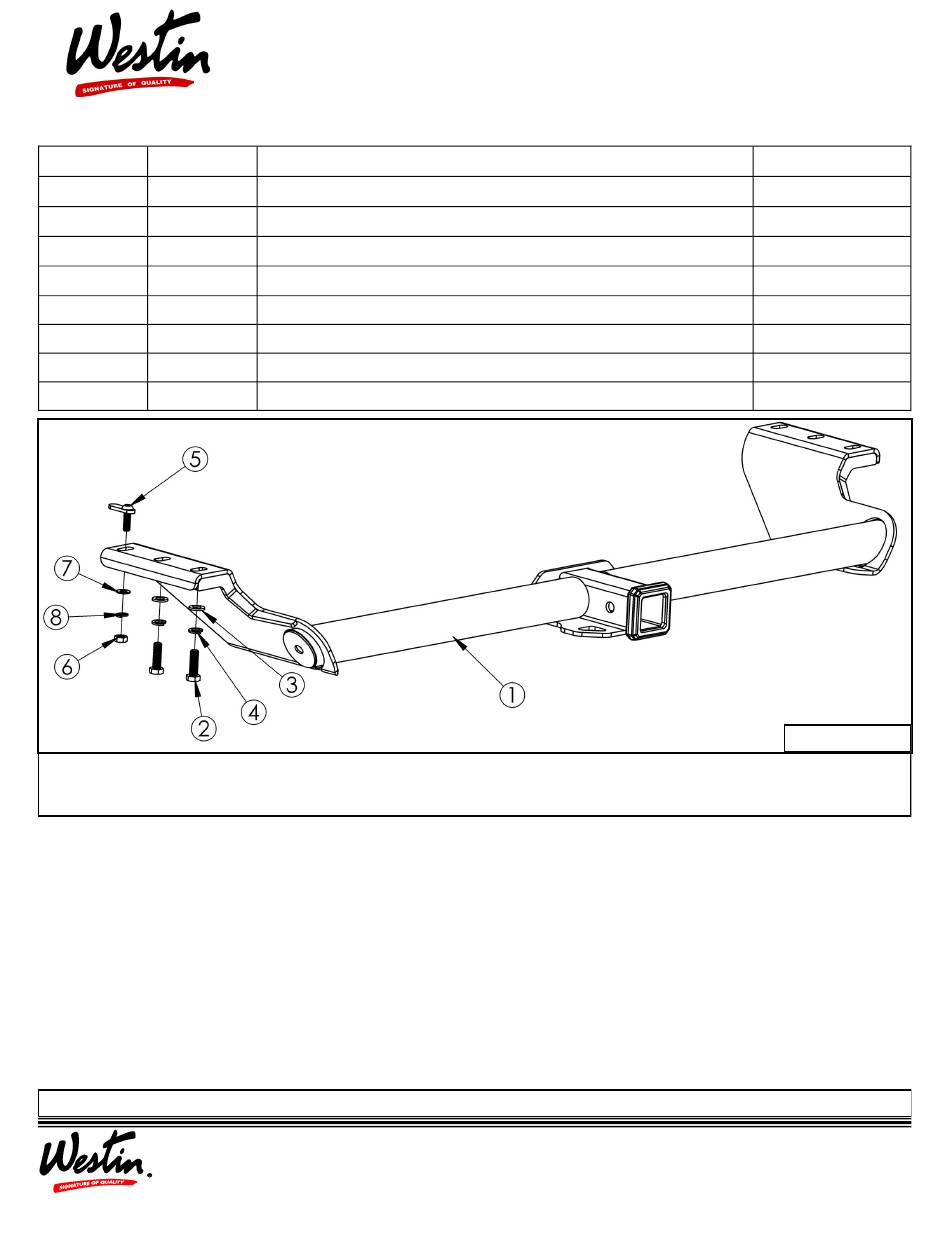

RECEIVER HITCH ASSEMBLY
M12 HEX CAP SCREW
M12 FLAT WASHER
M12 SPLIT LOCK WASHER
M10 LONG BOLT PLATE
M10 HEX NUT
M10 FLAT WASHER
M10 SPLIT LOCK WASHER
1
Thank You for choosing Westin products
For Additional installation assistance please call
Customer service (800) 793-7846
www.westinautomotive.com

TOOLS NEEDED

19MM SOCKET
10MM SOCKET
DRILL
TORQUE WRENCH
Hitch Assembly
DATE: 7/20/2015
