SPDIF Connec�on
To connect to an external sound system:
1. Connect an op�cal cable from the SPDIF port to your sound system's op�cal connector.
2. Plug in the power cord of your ViewBoard, and turn on the rear-panel power supply switch.
3. Press the Power bu�on on the right-hand side of the ViewBoard to turn the screen on.
Note: S/PDIF & Earphone audio output are working on Embd Player, HDMI, and DP channel only.
SPDIF

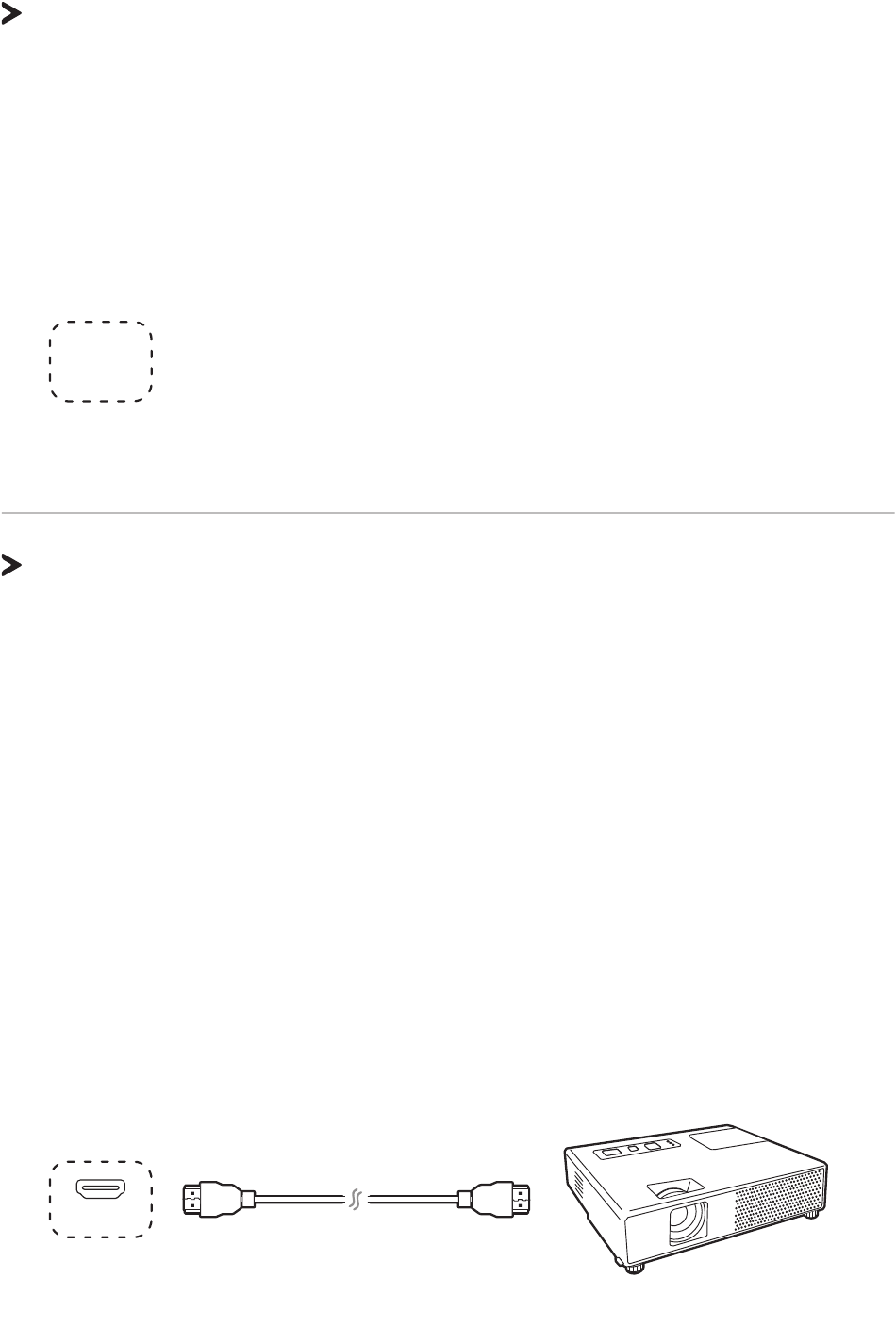

Video Output Connec�on
To output video via a display device:
1. Connect an HDMI cable to the HDMI IN port of your display device, and the other end to the HDMI
OUT port of your ViewBoard.
2. For audio, connect one end of an audio cable to your ViewBoard's AUDIO OUT port and the other
end to your speakers.
3. Plug in the power cord of your ViewBoard, and turn on the rear-panel power supply switch.
4. Press the Power bu�on on the right-hand side of the ViewBoard to turn the screen on.
Note: S/PDIF & Earphone audio output are working on Embd Player, HDMI, and DP channel only.
HDMI
