Connec�ng External Devices and Touch Connec�on

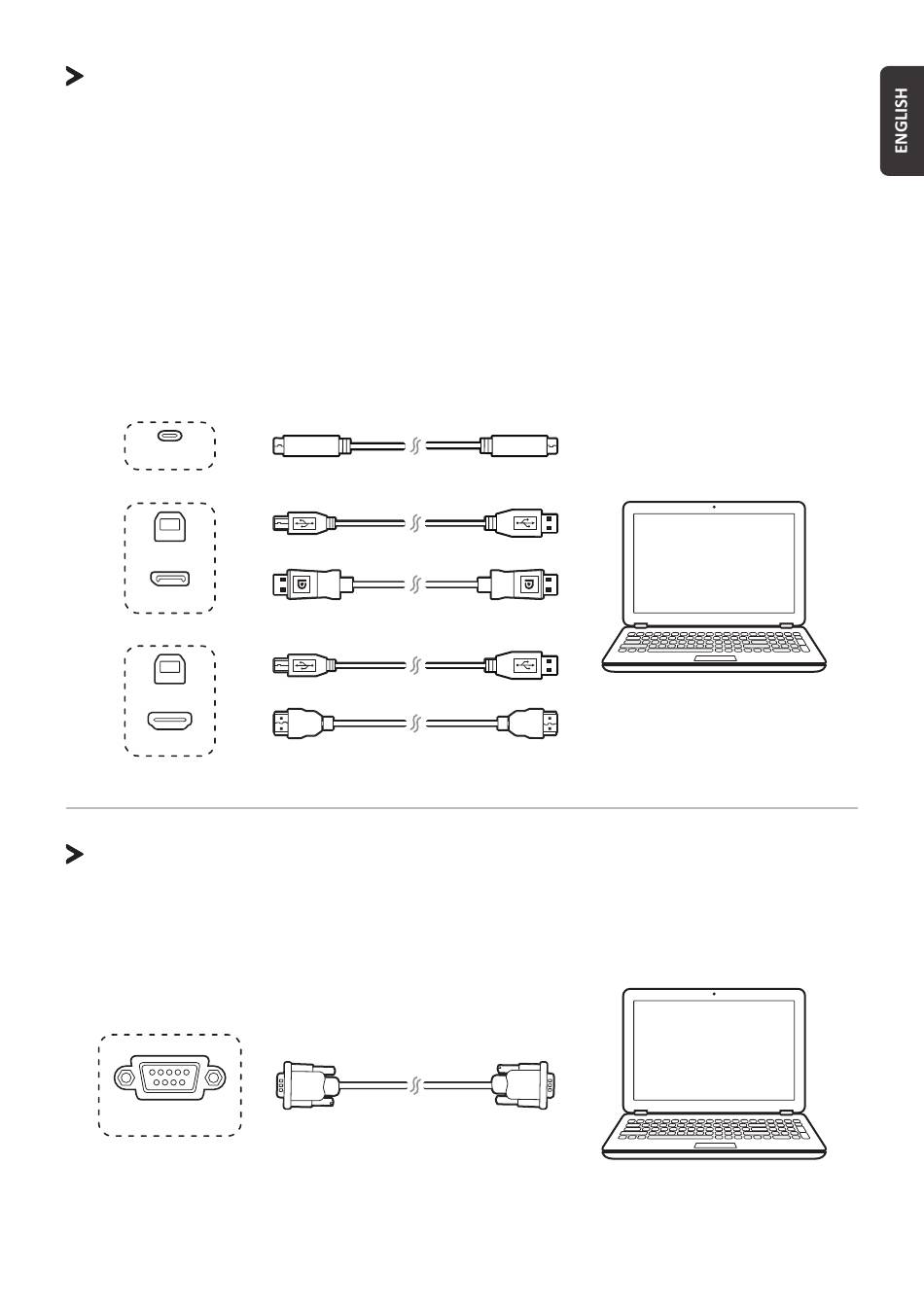

Your external device(s) can be connected in any of the following configura�ons:
Type C Connec�on
Connect a Type C cable from your external device to the Type C port on the ViewBoard.
DisplayPort Connec�on
1. Connect a DisplayPort cable from your external device to the DisplayPort port on the ViewBoard.
2. Connect a USB cable to the external device from the TOUCH port of the ViewBoard.
HDMI Connec�on
1. Connect an HDMI cable from your external device to the HDMI IN port on the ViewBoard.
2. Connect a USB cable to the external device from the TOUCH port of the ViewBoard.
Type C
TOUCH
DisplayPort
TOUCH
HDMI IN
RS232 Connec�ons
When you use a RS232 serial port cable to connect your display to an external computer certain func-
�ons can be controlled remotely by the PC, including Power On/Off, Volume adjustment, Input select,
Brightness, and more.
RS232
Type C cable
USB cable
DisplayPort cable
USB cable
HDMI cable
Serial Port Cable
Computer
Computer
