Summary of Contents for Fronius Galvo 1.5

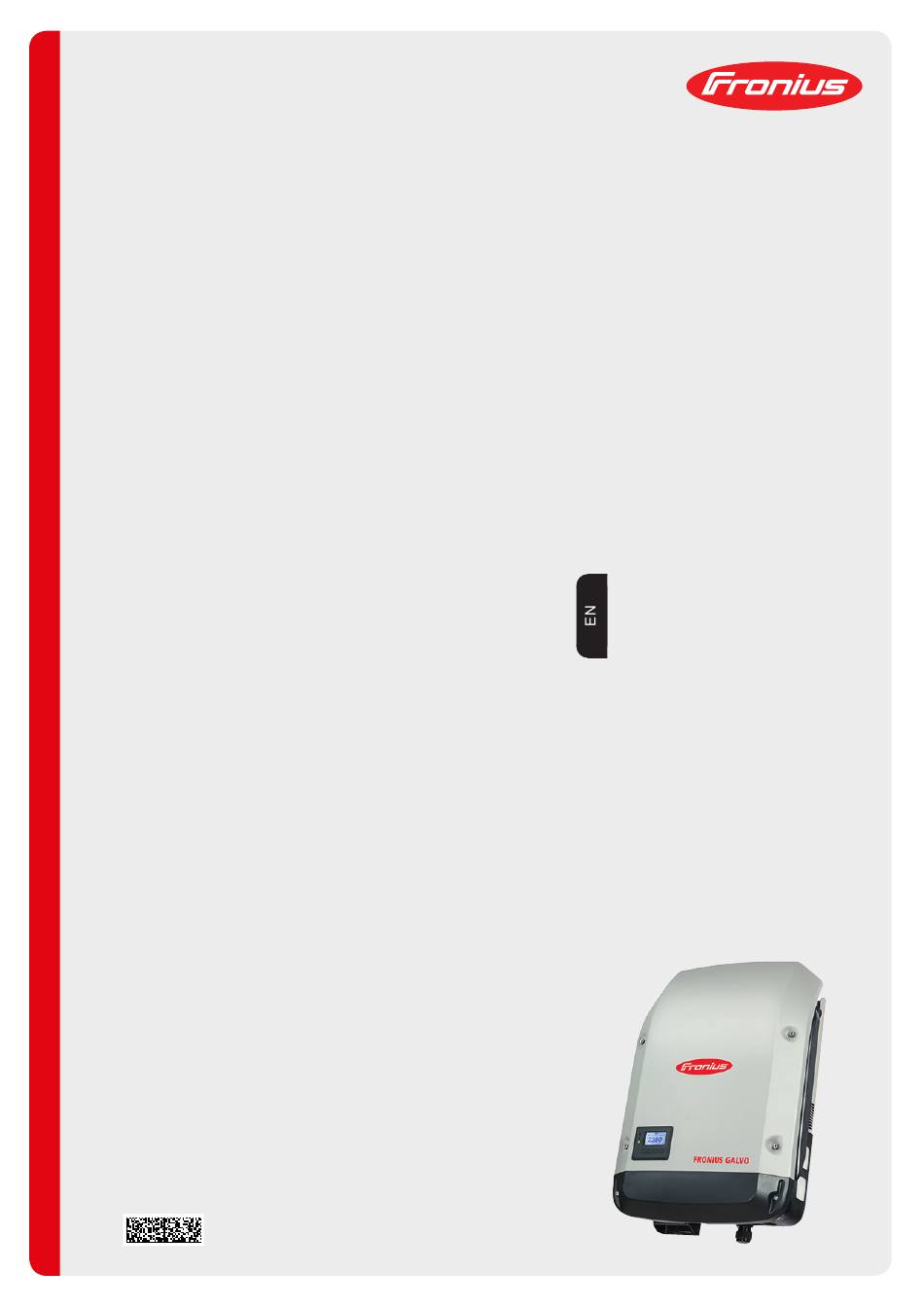

- Page 1 / Perfect Charging / Perfect Welding / Solar Energy Installations instructions Fronius Galvo - Installation Grid-connected inverter 42,0426,0171,EN 015-31102019 Fronius prints on elemental chlorine free paper (ECF) sourced from certified sustainable forests (FSC).
-
Page 3: Table Of Contents
Contents Installation location and position ........................ Explanation of safety notices ........................ Safety..............................Proper use/intended purpose........................ Explanation of symbols - choice of location ..................Explanation of symbols - installation position ..................General comments regarding choice of location................... Attaching the Mounting Bracket ......................... Safety.............................. - Page 4 Australian cable protection hoses ......................Seal cable protection hoses tightly ....................... Seal Conduits............................Serial Number Sticker for Customer Use ....................Serial number sticker for customer use ....................
-
Page 5: Installation Location And Position
Installation location and position Explanation of DANGER! safety notices Indicates immediate danger. ► If not avoided, death or serious injury will result. WARNING! Indicates a potentially hazardous situation. ► If not avoided, death or serious injury may result. CAUTION! Indicates a situation where damage or injury could occur. ►... -
Page 6: Proper Use/Intended Purpose
Note! Fronius will not accept any costs associated with production downtimes, installer costs, etc., that may arise as the result of a detected arc and its consequences. Fronius accepts no liability for fires that can occur despite the presence of the integrated arc detec- tion/extinguishing system (e.g. -
Page 7: Explanation Of Symbols - Choice Of Location
When designing the photovoltaic system, ensure that all components are operated within their permitted operating ranges at all times. Observe all the measures recommended by the solar module manufacturer to ensure that the solar module retains its properties in the long term. Obey the regulations of the power supply company regarding connection methods and en- ergy fed into the grid. -
Page 8: Explanation Of Symbols - Installation Position
As the inverter generates low levels of noise under certain operating con- ditions, it should not be installed close to living areas. Do not install the inverter in: places where there is an increased risk of damage from farm ani- mals (horses, cattle, sheep, pigs, etc.) stables or adjoining areas storage areas for hay, straw, chaff, animal feed, fertilisers, etc. -
Page 9: General Comments Regarding Choice Of Location
Do not install the inverter at an angle on a vertical wall or pillar. Do not install the inverter horizontally on a vertical wall or pillar. Do not install the inverter on a vertical wall or pillar with its connection sockets facing upwards. - Page 10 The environmental conditions for the inverter must be fulfilled at the installation site. If the inverter is to be installed on the outer wall of a cattle shed, maintain a minimum all- round clearance of 2 m between the inverter and all ventilation and other openings in the building.
-
Page 11: Attaching The Mounting Bracket
Attaching the Mounting Bracket Safety WARNING! Danger due to residual voltage in capacitors. This may result in an electric shock. ► Wait for the capacitors to discharge. The discharge time is five minutes. CAUTION! Danger due to dirt or water on the terminals and contacts of the inverter's connec- tion area. -
Page 12: Do Not Warp Or Deform The Mounting Bracket
Do not warp or Note! When fitting the mounting bracket to the wall, ensure that the mounting bracket does deform the not become warped or deformed. mounting bracket... -
Page 13: Fitting The Mounting Bracket To A Wall
Fitting the mount- ing bracket to a wall Tip: Install the inverter so that its display is at eye level Note! When mounting the mounting bra- cket on the wall, ensure that the mounting bracket does not become warped or defor- med. -
Page 14: Mounting The Inverter On A Mast
Mounting the in- When mounting the inverter on a mast or a verter on a mast vertical carrier, Fronius recommends the use of a standard mast fixing kit. This kit enables the inverter to be mounted Fronius Galvo on round or rectangular masts with various Installation Help cross-sections. -
Page 15: Connecting The Inverter To The Public Grid (Ac Side)
► The power stage set is only to be disconnected from the mounting bracket once it is de-energised. ► Maintenance and servicing in the power stage set of the inverter must only be carried out by Fronius-trained service technicians. CAUTION! Risk of damage to the inverter as the result of incorrectly tightened terminals. -
Page 16: Ac Terminals
AC terminals Ground conductor / grounding min. 2,5 mm² - max. 16 mm² Phase conductor Neutral conductor Max. cross-section of each conductor cab- 16 mm² Min. cross-section of each conductor cable: in accordance with the fuse rating on the AC side, but at least 2.5 mm² The AC cables can be connected to the AC terminals without ferrules. -
Page 17: Requirements For The Neutral Conductor
Requirements for Note! the neutral con- Ensure that the grid neutral conductor is grounded. This may not be the case for IT ductor grids (insulated grids with no grounding); it will then not be possible to use the inverter. In order to use the inverter, the neutral conductor must be connected. A neutral con- ductor that is too small may adversely affect the inverter feeding energy into the grid. -
Page 18: Maximum Fuse Rating On Alternating Current Side
C 25A Inverter Phases Max. output Max. fuse rating Fronius Galvo 1.5 1500 W 1 x C 25 A Fronius Galvo 2.0 2000 W 1 x C 25 A Fronius Galvo 2.5 2500 W 1 x C 25 A Fronius Galvo 3.0... - Page 19 For this situation, a type A residual current protective device is generally adequate. In par- ticular cases, and depending on local factors, however, the type A residual current protec- tive device may trip at the wrong time. For this reason, Fronius recommends that an RCD suitable for frequency converters be used.
-
Page 20: Connecting Solar Module Strings To The Inverter
► The power stage set, which is enclosed in a separate housing, must only be discon- nected from the connection area when in a de-energized state. ► Maintenance and servicing in the power stage set of the inverter must only be carried out by Fronius-trained service technicians. - Page 21 WARNING! Danger from inadequate ground conductor connection. This can result in serious injury and damage to property. ► The housing screws provide a suitable ground conductor connection for grounding the housing and must NOT be replaced by any other screws that do not provide a reliable ground conductor connection.
-
Page 22: General Information About Solar Modules
Note the temperature coefficients in the solar module data sheet More exact data for sizing the solar array for the particular location can be obtained using calculations tools such as the Fronius Solar.configurator (available at http:// www.fronius.com). NOTE! Before connecting solar modules, make sure that the voltage specified by the man- ufacturer corresponds to the actual measured voltage. -
Page 23: Connecting Aluminium Cables
Immediately connect the cable end to the terminal IMPORTANT! Repeat the procedure if the cable has been disconnected and is to be re- connected. Solar module Fronius Galvo 1.5-1: max. 420 V strings - checking Fronius Galvo 2.0-1: max. 420 V CAUTION! the polarity and Fronius Galvo 2.5-1: max. -
Page 24: Inverter Dc Connection
The connection of de-energised cables or sections of cable for demonstration purposes is permissible. Inverter DC con- Only break out as many target break points as the number of cables that are provided (e.g. nection if there are 2 DC cables, then break out 2 recesses). 7 x 2,5 - 10 mm²... -
Page 25: Dc Cable Routing
Torque (Nm / lbf.in.) → see printing near wire terminal 2x TX20 1,5 - 1,7 Nm DC= (+) DC= (-) DC cable routing If DC cables are laid over the shaft of the DC main switch or across the connection block of the DC main switch, they may be damaged when the inverter is swung in or they may even prevent the inverter from... -
Page 26: Grounding The Solar Modules In The Inverter
Grounding the solar modules in the inverter General Some manufacturers of solar modules sti- pulate that the modules must be grounded. Inside the inverter is a means for grounding solar modules to the negative pole via a fu- The fuse holder for grounding the solar mo- dules is located on the rear of the inverter. -
Page 27: Solar Module Ground At Negative Pole With Fuse
Inverter Fuse For solar module grounding at the negative pole Fronius recommends following fuse: nominal current 1A / 600 V, fuse size 10 x 38 mm IMPORTANT! Fuses for solar module grounding are not included with the inverter. If a so- lar module grounding is required by the solar module manufacturer, a suitable fuse has to be ordered separately. -
Page 28: Data Communication
Data communication Routing data IMPORTANT! Operating the inverter with one option card and two broken-out option card communication slots is not permitted. cables To cater for this eventuality, a suitable blanking cover (42,0405,2020) is available from Fro- nius as an option. IMPORTANT! If data communication cables are wired into the inverter, observe the follow- ing points: depending on the number and cross-section of the data communication cables that... - Page 29 IMPORTANT! Observe the ESD guidelines when handling option cards. IMPORTANT! Only one Fronius Datamanager in master mode is permitted per Fronius Solar Net ring. Switch any other Fronius Datamanagers to slave mode or remove them. Seal off the unoccupied option card slot by replacing the cover (item number 42,0405,2094);...
- Page 30 TX20 10.6 lbf.in 1.2 Nm 22.1 lbf.in 2.5 Nm...
-
Page 31: Attaching The Inverter To The Mounting Bracket
Attaching the inverter to the mounting bracket Attaching the in- WARNING! verter to the mounting bracket Danger from inadequate ground conductor connection. This can result in serious injury and damage to property. ► The housing screws provide a suitable ground conductor connection for grounding the housing and must NOT be replaced by any other screws that do not provide a reliable ground conductor connection. -
Page 33: Starting For The First Time
Starting for the first time Starting the in- WARNING! verter for the first time Danger due to incorrect operation and incorrectly performed work. This can result in serious injury and damage to property. ► Only qualified staff are authorised to commission your inverter and only within the scope of the respective technical regulations. - Page 34 * Country setups 50 Hz International 50 Hz Deutschland: Anlagengröße Italia < 11,08 kVA > 13,8 kVA 60 Hz International 60 Hz MG50 Microgrid 50 Hz DKA1 Danmark Österreich: Anlagengröße MG60 Microgrid 60 Hz < 3,68 kVA España NIE1 Northern Ireland / Tuais- Australia ESOS Territorios españoles en el ceart Éireann...
-
Page 35: Notes Regarding Software Updates
Notes regarding software updates Notes regarding If the inverter is supplied with a USB flash software updates drive, the inverter software must be up- dated as soon as the inverter has been commissioned: Plug the USB flash drive into the data communication area of the inverter Open the Setup menu Select the "USB"... -
Page 36: Usb Stick As A Data Logger And For Updating Inverter Software
Only delete all of the files (sys, fld, csv) at one time. DALO.fld log file: A log file for reading the data in the Fronius Solar.access software. Further details on the Fronius Solar.access software can be found in the "DATCOM Details" operating instructions at http://www.fronius.com DATA.csv log file: A log file for reading the data in a spreadsheet program (e.g.: Microsoft®... -
Page 37: Data Volume And Storage Capacity
Inverter no. Inverter type (DATCOM code) Logging interval in seconds Energy in watts per second, relative to the logging interval Inductive reactive power Capacitive reactive power Average values during the logging interval (AC voltage, AC current, DC voltage, DC current) Additional information Data volume and A USB flash drive with a storage capacity of 1 GB can record logging data for roughly sev-... -
Page 38: Buffer Memory
2.0 Operating Instructions, section "Setting and displaying the menu items", "Viewing and adjusting parameters in the DATCOM menu item"). On the Fronius Eco or Fronius Symo 15.0-3 208, the buffer memory also functions with just a DC supply. Suitable USB... -
Page 39: Usb Stick For Updating The Inverter Software
Note! Please note for outdoor applications that conventional USB flash drives are often only guaranteed to work within a restricted temperature range. For outdoor applications ensure that the USB flash drive also functions, for example, at low temperatures. USB stick for up- With the help of the USB stick, end customers can also update the inverter software via the dating the invert- USB item on the SETUP menu: the update file is first saved to the USB stick, from where... -
Page 40: Notes Regarding Maintenance
Note! When installed outdoors in a horizontal position: once a year, check that all screw joints are tight! Maintenance and servicing may only be carried out by Fronius-trained service technicians. Cleaning Clean the inverter as required with a damp cloth. - Page 41 Australian cable protection hoses Seal cable protec- Ensure that the cable protection hoses are tightly sealed. tion hoses tightly rigid or flexible Seal Conduits NOTE! Condensation within the conduits can Inside Outside damage the inverter or components of the photovoltaic systems. To avoid undesirable air circulation and condensation in the conduits, ►...
- Page 42 Two serial number stickers are enclosed with the inverter's Installation Instructions: 57 x 20 mm 67 x 20 mm Fronius Inverter These can be affixed by the customer in a Installation visible location of his choosing, e.g. on the front of the inverter or on the Operating Ins- tructions.
- Page 44 FRONIUS INTERNATIONAL GMBH Froniusstraße 1, A-4643 Pettenbach, Austria E-Mail: sales@fronius.com www.fronius.com Under www.fronius.com/contact you will find the addresses of all Fronius Sales & Service Partners and locations...
