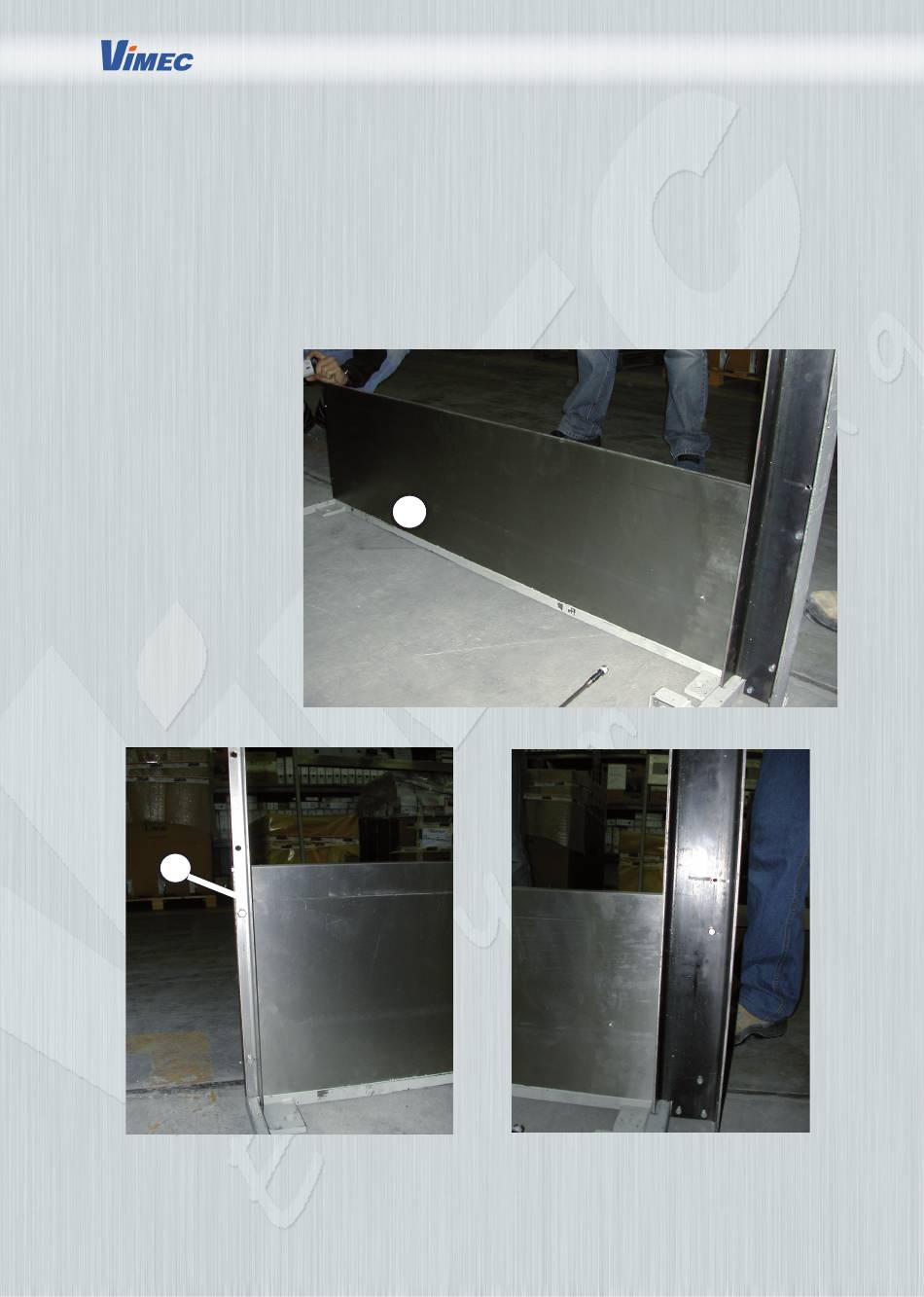

5) Fix the fi rst side panel (marked "a1" or "c1", see drawing and Figure 7) to the guide by means of
ST6 6.3x16 screws.
6) Fix the fi rst "L"-shaped profi le (marked "a1 or "c1") closing the panels with ST6.3x16 screws and
at the base with 4.2x13 screws (fi gures 7-8-9).
FIG.7
7) Then proceed in
sequence with the other
panels (a2-a3 etc.
see fi g. 8-9-10-11).
a1
FIG.8
FIG.9
a1
