IMPORTANT: Install drain plug in Transom of boat first.

Refer to instructions for Prop Installation.

Preparation

Clean mounting areas with

acetone.

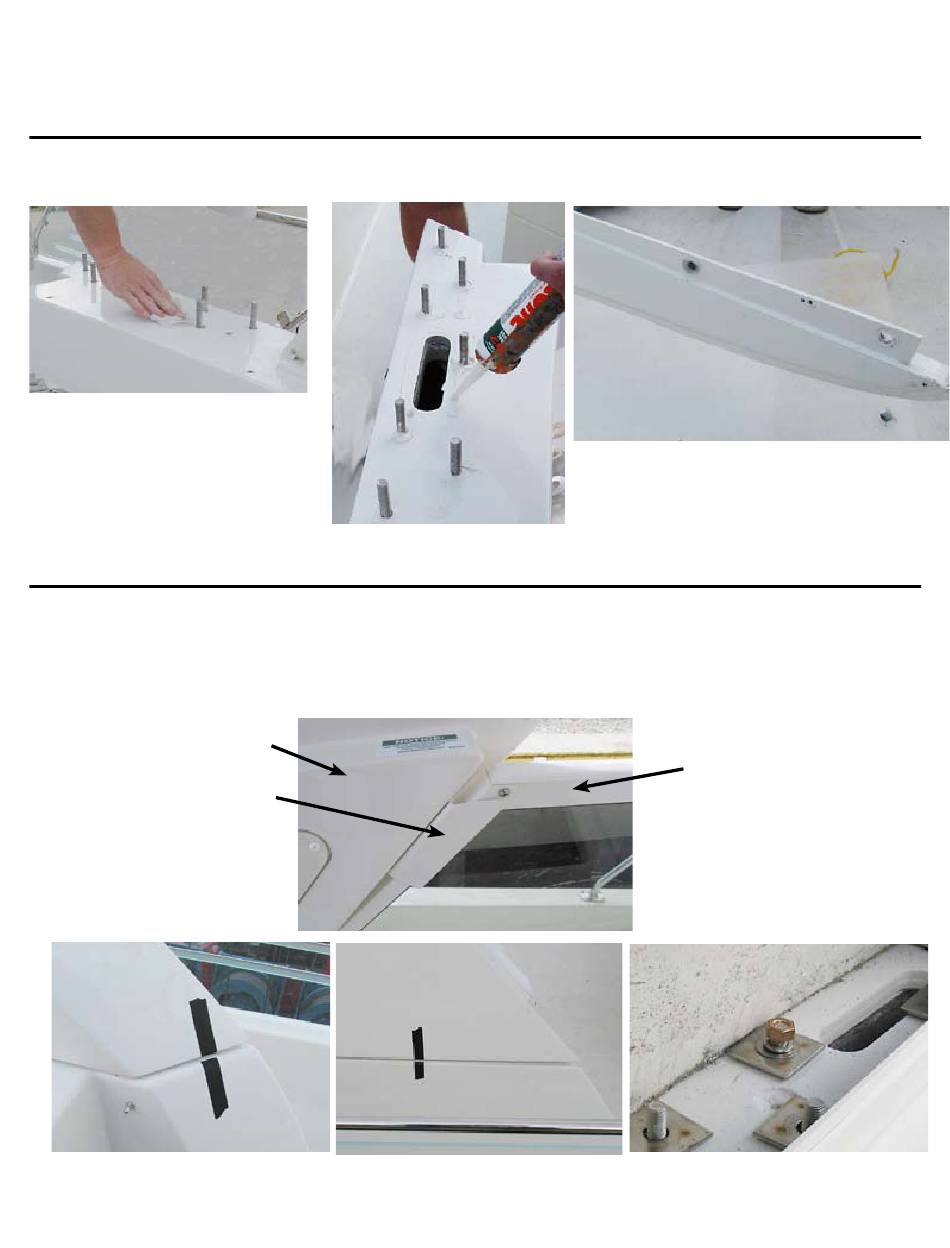

Install Arch Stubs on studs and hold in place until hardware is installed.

Use tape for alignment reference.

NOTE: On inside of both arch stubs is a bracket for windshield support. Carefully work around bracket

so you do not damage windshield.

Arch Stub

Support Bracket

Aft Tape

Tighten in place when aligned with tape.

Setup Procedures for the 44 Sojourn

Install sealant around

studs and openings

Side tape on outside

Replace plastic gromments in top of

arch stubs with new ones supplied.

Windshield

Install flat plate, flat washer,

lock washer and SS nut.
