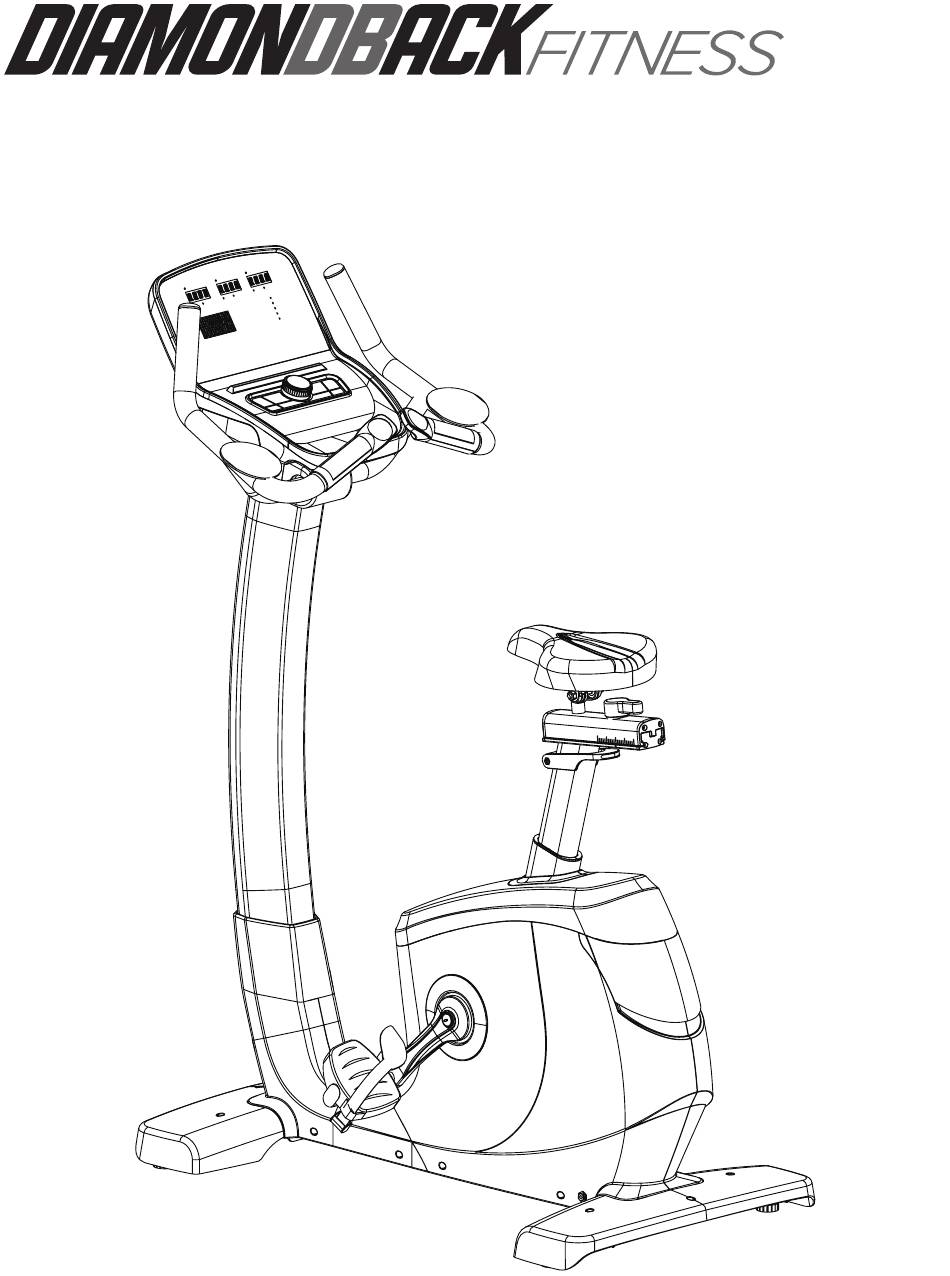

- Page 1 1260ub Upright Bike Owner's Manual...
- Page 2 Although current at the time of this printing, specifications for this model may have changed in our continuing effort for improvement. Diamondback Fitness reserves the right to modify and improve the specifications of its products without prior notice. Diamondback Fitness...
-
Page 3: Safety Instructions And Warnings
Safety Instructions & Warnings • Every piece of Diamondback Fitness equipment Place the unit in an area that will meet minimum clearance requirements: is built for maximum safety and meets or front & sides = 24 inches (61 cm) exceeds all applicable domestic and international rear = 12 inches (30.5 cm) - Page 4 42: COVER - HANDLEBAR 40: COVER - CONSOLE BACK 41 M8*1.25*50L 2PCS 42 97.2*75*42 1PC 51: PEDALS (mm) 69: SADDLE Please don’t use 51L: LEFT 51R: RIGHT power tools for any part of the assembly. 75: UPPER COVER 66: POWER CABLE Diamondback Fitness...
- Page 5 Take the packing material styrofoam and put it under the rear frame to assemble the front stabilizer (4) onto the main frame (1) using the cross bolt (7&7A), the spring washer (9) and the flat washer (16). 1260ub Owner's Manual...
- Page 6 They are not needed for assembly. Take the packing styrofoam and put it under the rear frame to assemble the rear stabilizer (2) onto the main frame (1), using the cross bolt (7&7A), the spring washer (9) and the flat washer (16). Diamondback Fitness...
- Page 7 69 : Saddle Attach the seat (69) onto the seat post by tightening the two hex nuts located on the bottom of the seat. Then slide the seat post (13) into the main frame of the bike as shown. 1260ub Owner's Manual...
- Page 8 (64 & 65). Attach the front post (17) onto the main frame using the flat washer (16), the spring washer (9), and bolt (15). Slide down the upper cover (75) and make sure it is flush with the front post. Diamondback Fitness...
- Page 9 (17) and then out of the handlebar mount hole like shown. Attach the console (76) onto front post (17) using the fixing bolts (39). Attach the back console cover (40) to the console using the fixing bolts (39). 1260ub Owner's Manual...
- Page 10 Attach the handlebar (36) onto the front post button cable (37L) and right quick button (17) using the curve washer (8) and bolt (41). cable (37R). Then snap the the handlebar cover (42) into place over the bolts (41). Diamondback Fitness...
- Page 11 After finger tightening as far as possible, finish with the tool provided, making sure both pedals are fully seated and tight against the crank arm. 51R : RIGHT SIDE Clockwise Rotation 51L : LEFT SIDE Counter-clockwise Rotation 1260ub Owner's Manual...
- Page 12 Powering the 1260ub and Final Adjustments For the most up to date info about using your console and our latest support videos, please visit www.diamondbackfitness.com Using the seat post lever, you can adjust the seat position vertically. Using the seat slide lever, you can adjust the seat position horizontally.
-
Page 13: Troubleshooting
Positioning a small spray bottle and towel near 1. Make sure the unit is unplugged from the the unit will help ensure that your Diamondback power source. Fitness equipment looks new for many years. - Page 14 Improper assembly the same duration as the express warranty can be avoided if the unit is assembled by herein. Diamondback Fitness shall not be liable an authorized technician. Damage due to for any incidental or consequential damages.
- Page 15 For the most up to date info about using your console and our latest support videos, please visit www.diamondbackfitness.com If you have any questions please contact our support team at support@diamondbackfitness.com.
