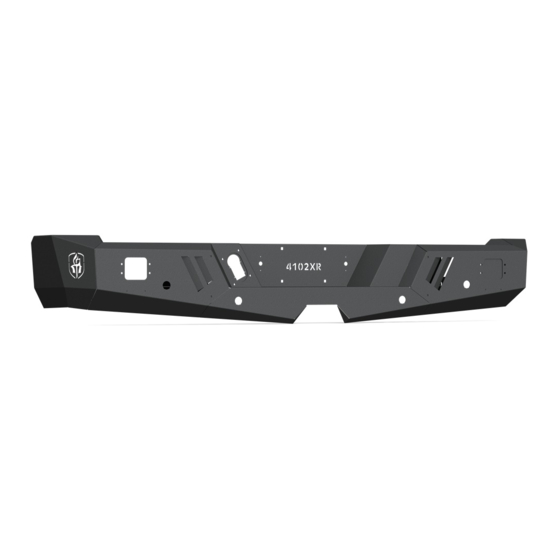

- Page 1 INSTALL INSTRUCTIONS Spartan Rear Bumper Product : 4102XR Application : 2010 — 2018 Ram 2500, 3500 Page ( 1 of 12)
- Page 2 Be sure to inspect and test fit your product to ensure proper fitment before having it coated, painted, bed lined, etc. • Road Armor will not be responsible for the cost of coating your unit if any problems with fit or finish are not noted and addressed beforehand. SAFETY FIRST! •...
- Page 3 INSTALL INSTRUCTIONS Disconnect wire harness from license plate lights. Repeat this step for the other side of the bumper. Disconnect wire harness from trailer wire plug. Once the wire harness is disconnected, push in the clips on both sides of the plug and remove plug from bumper. Using a 15mm socket remove the two bolts that hold the bumper mounts to frame.
- Page 4 INSTALL INSTRUCTIONS Install factory sensors (if equipped), trailer pin, aftermarket light, and license plate lights. Install the bolt on bracket onto the bumper assembly using the (3) 1/2” bolt tabs per side. Tighten enough to allow for adjustability. Insert (2) 1/2” bolt tabs per side into the frame brackets and secure in place with the 1/2” retaining nuts.
