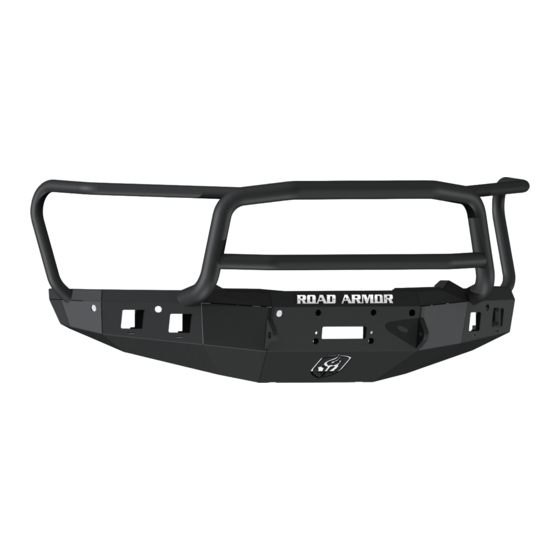

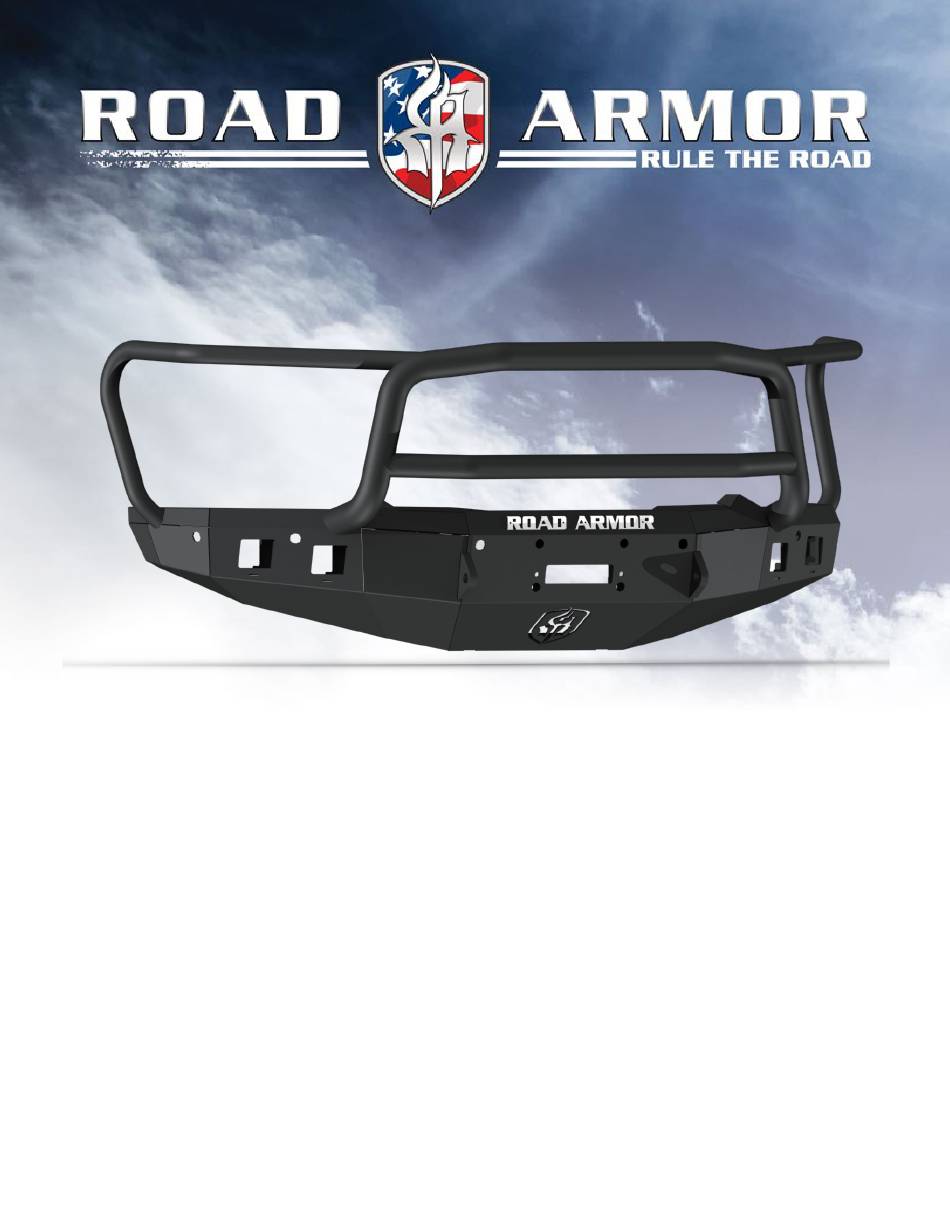

- Page 1 INSTALL INSTRUCTIONS RAM 1500 Front Stealth Bumper (Including REBEL) Product : 4191FXX Application : 2019-2020 Ram 1500 Application : 2019 Ram REBEL Page ( 1 of 5)
- Page 2 • Road Armor will not be responsible for the cost of coating your unit if any problems with fit or finish are not SAFETY FIRST! • FOLLOW ALL INSTRUCTIONS, YOUR SAFETY AND THE SAFETY OF OTHERS IS MOST IMPORTANT.
- Page 3 INSTALL INSTRUCTIONS Remove 5 - bolts from inner fender liner / bumper in each fender well. Remove & unplug wiring harness from driver side frame rail. Remove three nuts from each frame horn. Remove factory bumper from frame horn. Remove four nuts and electronic spoiler. Remove two bolts from each tow hook.
- Page 4 INSTALL INSTRUCTIONS Install each frame horn bracket using 3 - 1/2 x 1 1/2” bolts, washers, lock washers, nuts and 1 - factory tow hook bolt on each bottom side of frame & bracket. (BLUE) Loosely install bumper brackets onto frame horn bracket using 4 - 1/2 x 1 1/2” bolts tabs, washers, lock washers &...
- Page 5 INSTALL INSTRUCTIONS Mate up bumper and fully tighten hardware once you have received the desired reveal. Check torque after 500mi. FINISHED www.ROADARMOR.com 2019+ RAM 1500 Page ( 5 of 5 )
