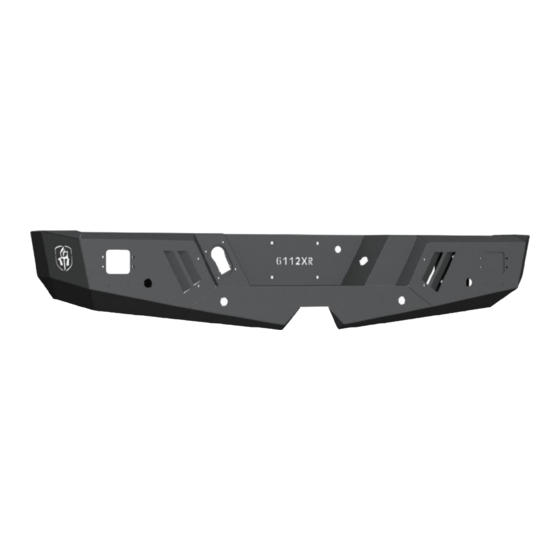

- Page 1 INSTALL INSTRUCTIONS Spartan Rear Bumper Product : 6112XR Application : 2011-2016 Ford Super Duty Page ( 1 of 10)
- Page 2 Be sure to inspect and test fit your product to ensure proper fitment before having it coated, painted, bed lined, etc. • Road Armor will not be responsible for the cost of coating your unit if any problems with fit or finish are not noted and addressed beforehand. SAFETY FIRST! •...
- Page 3 INSTALL INSTRUCTIONS Unplug bumper wiring harness from body harness. Remove nuts and double bolt plate both sides, then remove OE bumper. Remove 2 bolts from Trailer Hitch each side as shown and fit up Road Armor bracket re-using the OEM hardware. Insert a bolt tab through bumper each side and push on retainer washer using a deep socket.
- Page 4 INSTALL INSTRUCTIONS Install frame brackets onto frame using factory hardware. (Tighten just enough so that the bracket is still adjustable) Install factory license plate lights, aftermarket lighting, and sensors (if equipped) Install 1/2 bolt tabs onto bumper and secure with 1/2” retaining nuts. Line bolt tabs up into same location of the slots on the bumper.
- Page 5 INSTALL INSTRUCTIONS www.ROADARMOR.com 2017 + Ford Super Duty (V.20171019) Page ( 5 of 10)
