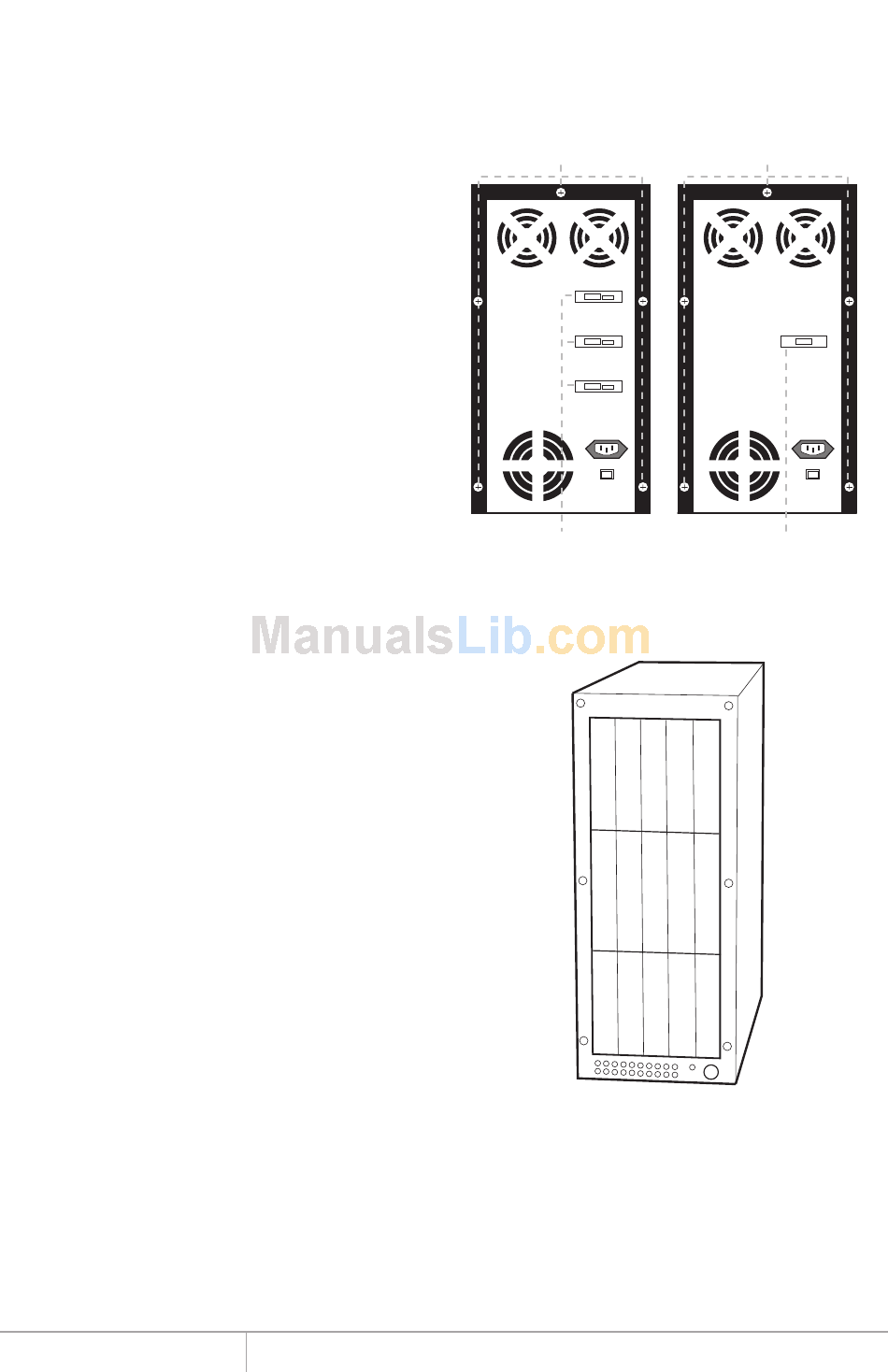

RT93DAHX RT93DAHXML
Screws Screws
Removing Cover of RAID
Tower IX
Loosen the 5 screws at the back of the
tower using a Philips screwdriver by
turning counter-clockwise. Separate the
metal casing of the tower from the housing
by lifting up the casing.
eSATA Ports Multilane Port
Installing drives into the
RAID Tower V
Step 1
Use a Philips screwdriver to secure the
3.5" SATA hard drive to the drive tray
Step 2
Slide the tray into the Disk Array drive bay.
Note: It is recommended to fill up the RAID
Tower IX with SATA drives from top to
bottom. This is to help in identifying which
drives connects to which ports for easier
troubleshooting.
Note: The 5 port HPMXA system version
PCB board is mounted inside the RAID
tower and is connected to the multilane
bridge that is mounted at the back of the
RAID tower.
