Westin 33-1920 Instructions

AUTOMOTIVE PRODUCTS, INC.

BULL BAR ASSEMBLY

ENSAMBLE DE PARRILLA
DELANTERA CON TIRÓN
LA BULL BAR
33-1920 33-1925

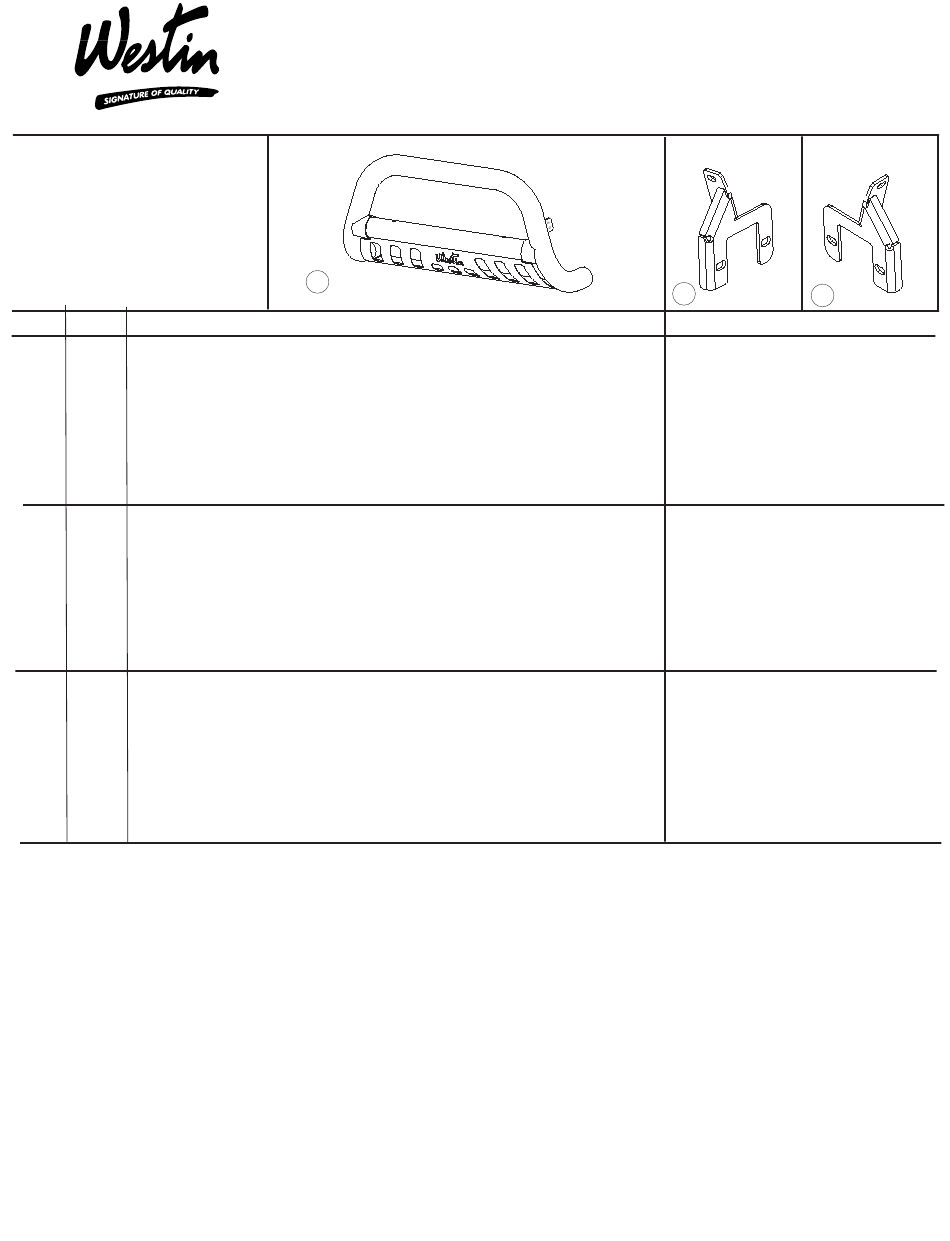

ITEM QTY

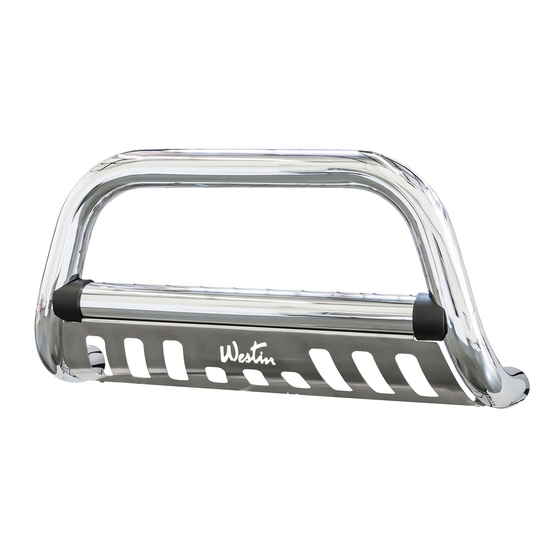

1 1 BULL BAR ASSEMBLY
2,3 2

BRACKET, PASSENGER (2) AND DRIVER (3)

4 2

PLASTIC PLUG

5 4

RUBBER BUMPER

6 4 3/8-16 X 1.00" HEX HEAD BOLT
7 8 3/8" FLAT WASHER
8 4 3/8" LOCK WASHER
9 4

3/8-16 HEX NUT

1 1 ENSAMBLE DE PARRILLA DELANTERA CON TIRÓN
2,3 2 SOPORTE
4 2 TAPONES DE PLÁSTICO
5 4 PARACHOQUES DE HULE
6 4 PERNOS CON CABEZA HEXAGONAL DEL DE 3/8-16 x 1.00"
7 8 ARANDELAS PLANAS DE 3/8"
8 4 ARANDELAS DE PRESIÓN DE 3/8"
9 4 TUERCAS HEXAGONALES DE 3/8-16
1 1 LA BULL BAR
2,3 2 SUPPORT, PASSAGER (2) ET CONDUCTEUR (3)
4 2 BOUCHONS DE PLASTIQUE
5 4 PARE-CHOCS CAOUTCHOUC
6 4 BOULONS A TETE HEXAGONALE 3/8-16 X 1,00 PO
7 8 RONDELLES PLATES 3/8 PO
8 4 RONDELLES A FREIN 3/8 PO
9 4 ÉCROUS HEXAGONAUX 3/8-16
STEP 1.
Remove the contents from box and check for damage. Verify all parts are present. Read instructions
completely before beginning.
stainless steel fasteners.
STEP 2. NOTE:
It may be necessary to remove/relocate front license plate and license plate bracket. It is not
required, but strongly recommended. If local/state laws requires a license plate, license plate relocation kit
32-0055 is available.
STEP 3.
Determine passenger and driver brackets.
STEP 4.
Locate tow hook loops on the front bumper. Remove the nut and bolt holding the tow hook loop to the tow
hook bracket. The tow hook loops will not be reinstalled. Remove the two 12mm bolts that hold the tow
hook brackets to the bumper.
STEP 5.
Position Bull Bar mount brackets over top of tow hook mount bracket. Reinstall factory 12mm bolts. Leave
SEE FIGURE 2.
loose.
STEP 6.
Attach Bull Bar to mount brackets using 3/8" stainless steel fasteners.
properly aligned and tighten all fasteners. Recommended torque values are 37 Ft. Lbs. for M12 bolts and
17 Ft.Lbs. for 3/8" stainless steel fasteners.

LIGHT INSTALLATION:

Insert threaded stud on base of the light through hole in cross tube. Using a ratchet, extension
and socket for correct size of nut supplied, insert through large clearance hole in bottom of cross tube.
INSTRUCTIONS-INSTRUCCIONES-CONSIGNES
APPLICATION: 2006-08 HUMMER H3
APLICACIÓN:
APPLICATION:
1
CONTENTS - CONTENIDO
, LADO DEL ACOMPAÑANTE
NOTE:
NOTE:
HUMMER H3 , MOD. 2006-08
HUMMER H3 2006-08
- CONTENU
(2) Y EL CONDUCTOR
Westin advises the installer to use a thread lubricant on all of the
SEE FIGURE 2.
Do not remove tow hook bracket.
2
TOOLS - HERRAMIENTA
9/16" SOCKET
9/16" WRENCH
15/16" SOCKET
15/16" WRENCH
18MM SOCKET
RATCHET
TORQUE WRENCH
DADO DE 9/16"
(3) LLAVE DE TUERCAS DE 9/16"
DADO DE 5/16"
LLAVE DE TUERCAS DE 5/16"
DADO DE 18 MM
MANERAL
LLAVE DE TORQUE
DOUILLE 9/16 PO
CLE 9/16 PO
DOUILLE 5/16 PO
CLE 5/16 PO
DOUILLE 18MM
CLIQUET
CLE DE COUPLEB
SEE FIGURE 2.
Make sure Bull Bar and brackets are
WO: 75-0551 REVISION C 4/23/08
3
- OUTILS
