CHECKING
1) Terminal wiring: Check that all cables are correctly con-
nected according to the connection diagram.
2) DIP SW setting: Check that the switches are set to ap-
propriate positions.
3) Power input voltage: Check voltage across the terminal
11 – 12 with a multimeter.
4) Input: Check that the input signal is within 0 – 100% of
full-scale.
If the RTD wires are broken, the output goes over 100%
(below 0% with downscale protection) due to burnout
function.
Confirm the status indicator LED pattern and check
leadwires in such a case.
5) Output: Check that the load resistance meets the de-
scribed specifications.
I/O RANGING & FINE ADJUSTMENTS
After the DIP SW setting is complete, set up the precise
input and output range using the front control buttons. Be
sure that the front control button function is enabled with
the DIP switch setting.
After the DIP SW setting is complete, set up the precise
input and output range using the front control buttons.
The front LEDs' colors and blinking patterns help you to
easily identify the transmitter's status and confirm the set-
up actions in each step of Calibration Modes. Please read
the following explanations referring to "Calibration Flow
Chart".
■ PREPARATION (e.g. M3LR-R4/A)
1) Mount the DIP-SW-configured M3LR on to a DIN rail.

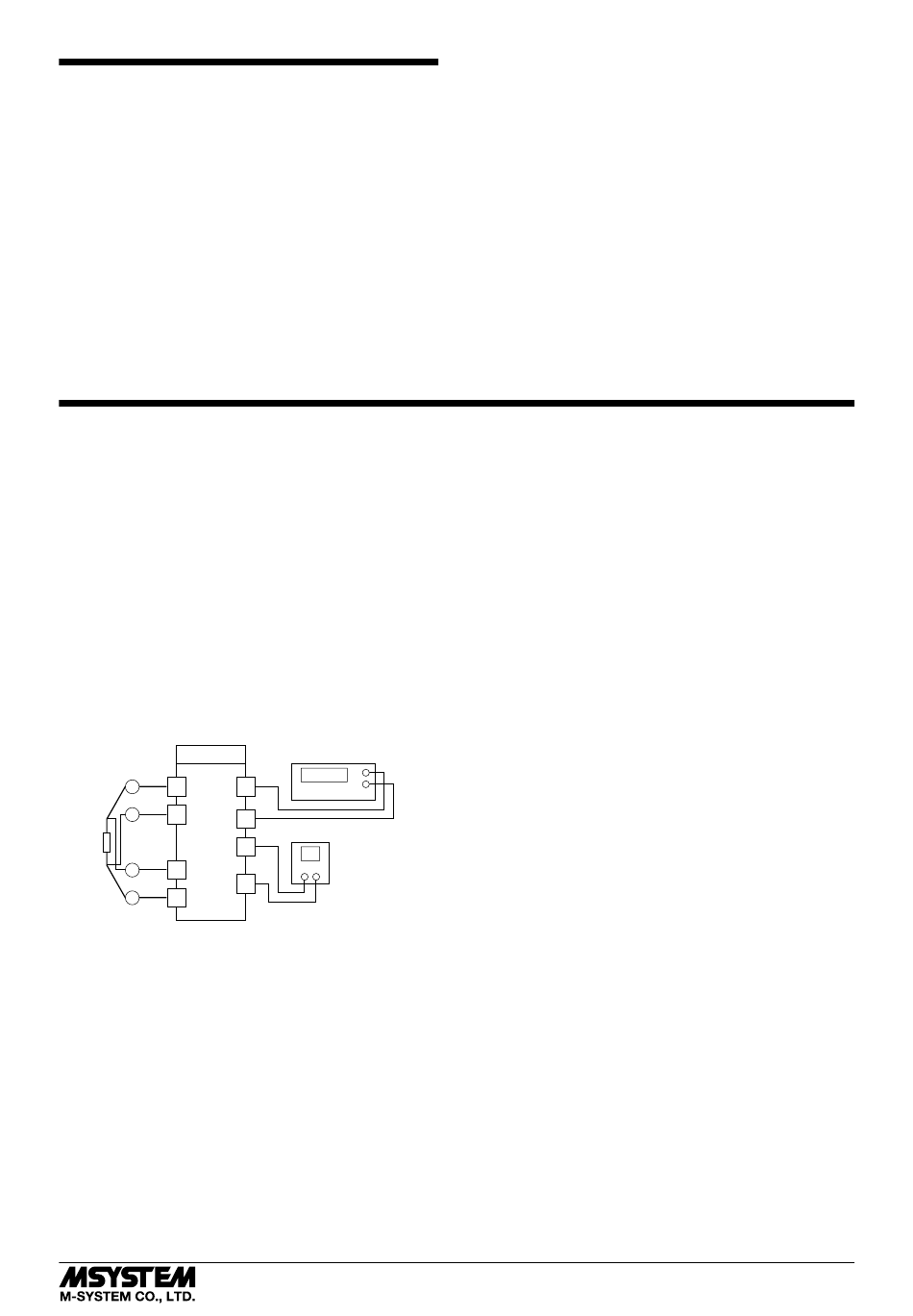

2) Connect the M3LR to a reference resistor and a multim-
eter and to a DC power source as shown below.
M3LR
4-wire
RTD
1
A
2
B
4
A
5
B
3) Turn the power supply on and wait for 10 minutes.
Multimeter
+
7 –
8
DC Power Source
11
+ –
12
