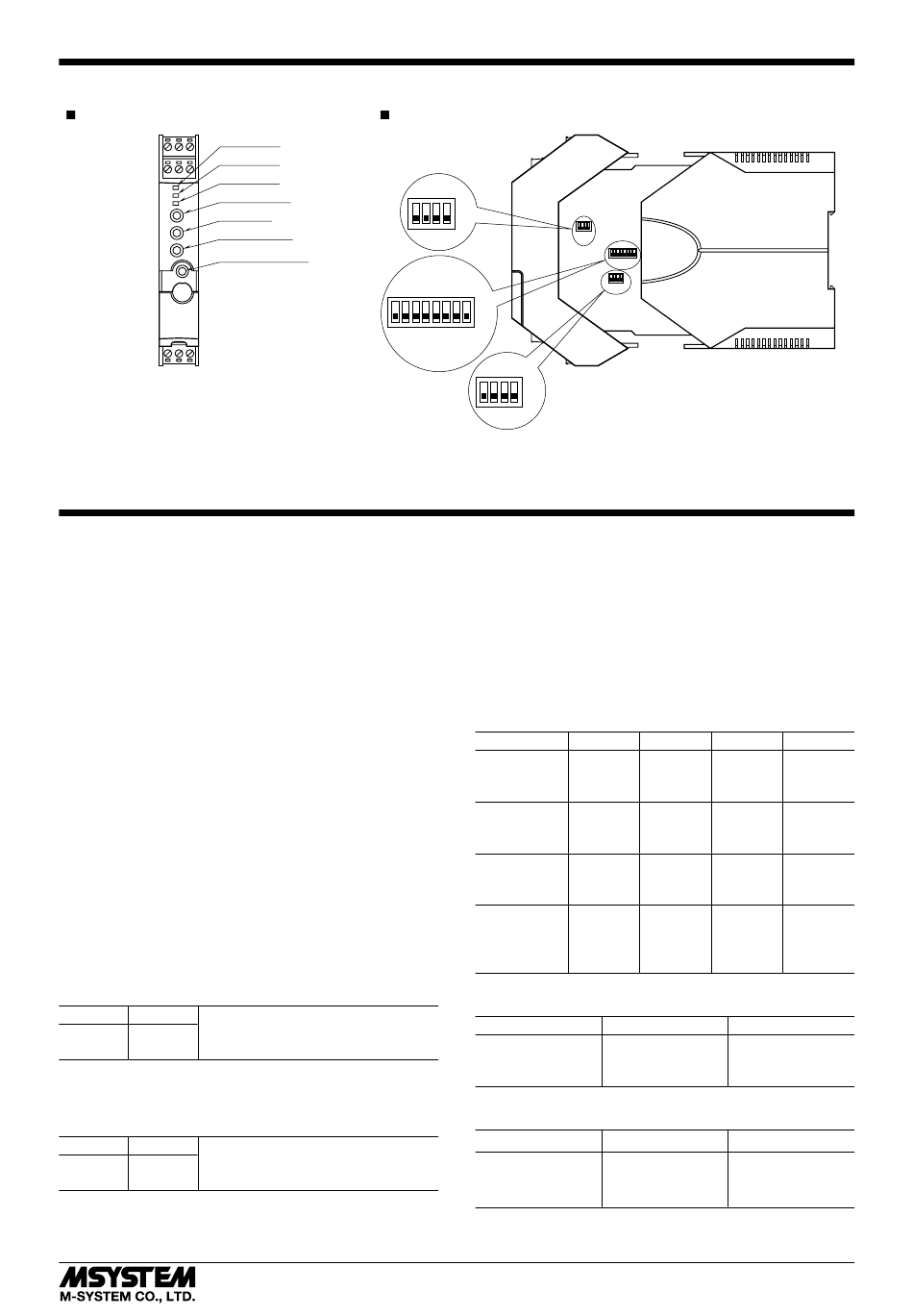

EXTERNAL & INTERNAL VIEWS
FRONT VIEW
LED1 (LD1)
LED2 (LD2)
10 11 12
LED3 (LD3)
7
8
9
MODE Button
UP Button
DOWN Button
Configurator Jack
1
2
3
4
5
6
The DIP switch setting is required to select output types before setting a precise output range using the PC configurator
software.
CONFIGURATION MODE & DIP SW SETTINGS
When you program the transmitter module, two configuration modes are available: Field Configuration using DIP SW / con-
trol buttons, and PC Software. (The Option B type is for the field configuration only.)
The internal DIP switches are used to configure input and output type. Once the module is configured, precise ranges are
set up with the front control buttons using a simulator connected to the input terminals and a multimeter connected to the
output terminals as a reference.
The calibrated input and output ranges are stored in the internal memory. The module reads the DIP-switch-calibrated con-
figuration only once after the power supply is turned on. Set the switches with the power supply removed.
Selectable I/O type and ranges are listed in Table 8 and 9.
■ DIP SW CONFIGURATION MODE
Turn the SW2-8 OFF to enable the DIP SW (Field Configu-
ration) mode as shown in Table 1.
See Table 3 to configure the input and Table 6 for the out-
put.
■ PC CONFIGURATION MODE
Turn the SW2-8 ON to enable the PC Configuration mode
as shown in Table 1. All programmable features can be
set up on a PC regardless of other DIP SW setting except
that the output type must be selected with the DIP SW1-1
through SW1-4 (See Table 7).
For detailed information on the PC configuration, refer to
the M3LRCFG instruction manual.
■ CONFIGURATION MODE (SW2)
MODE
SW2-8
Configuration mode can be Confirmed
DIP SW
OFF
with the front LED.
PC
ON
■ FRONT CONTROL BUTTON LOCK (SW2)
Table 2 setting is applicable to firmware version 2.02 or
higher (marking on the product).
LOCK
SW2-1
PC Configuration is not disabled
when the front control button func-
Unlock
OFF
tion is locked.
Lock
ON
SIDE VIEW
Configuration DIP SW
4 3 2 1
8
7 6 5 4 3 2 1
Table 1
Table 2
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
OFF
ON
SW1
SW2
SW3
OFF
ON
4 3 2 1
OFF
ON
■ RTD TYPE (SW2)
RTD
SW2-7
Pt 100
OFF
Pt 200
OFF
Pt 300
OFF
Pt 400
OFF
Pt 500
OFF
Pt 1000
OFF
Pt 50 Ω
OFF
JPt 100
OFF
Ni 100
ON
Ni 120
ON
Ni 508.4 Ω
ON
Ni-Fe 604
ON
Cu 10 @ 25°C
ON
■ RTD WIRES (SW3)
WIRES
2-wire
3-wire
4-wire
■ BURNOUT (SW3)
BURNOUT
No burnout
Upscale
Downscale
M3LR
Table 3
SW2-6
SW2-5
SW2-4
OFF
OFF
OFF
OFF
OFF
ON
OFF
ON
OFF
OFF
ON
ON
ON
OFF
OFF
ON
OFF
ON
ON
ON
OFF
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
ON
OFF
ON
OFF
OFF
ON
ON
ON
OFF
OFF
Table 4
SW3-4
SW3-3
OFF
ON
OFF
OFF
ON
ON
Table 5
SW3-2
SW3-1
OFF
ON
OFF
OFF
ON
OFF
EM-2662-A Rev.2 P. 4 / 8
