Keysight U1117A IR-to-Bluetooth Adapter
Operating Instructions
The Keysight U1117A Infrared (IR)-to-Bluetooth
Keysight U1200 Series handheld meters. The U1117A adapter enables you to connect the
handheld meter to the Keysight U1115A remote logging display or Windows PC/Android
devices/iOS devices via the Keysight mobile application/PC application software for a total
wireless remote connectivity solution of up to 100-metres
Keysight U1200
Series handheld
meters

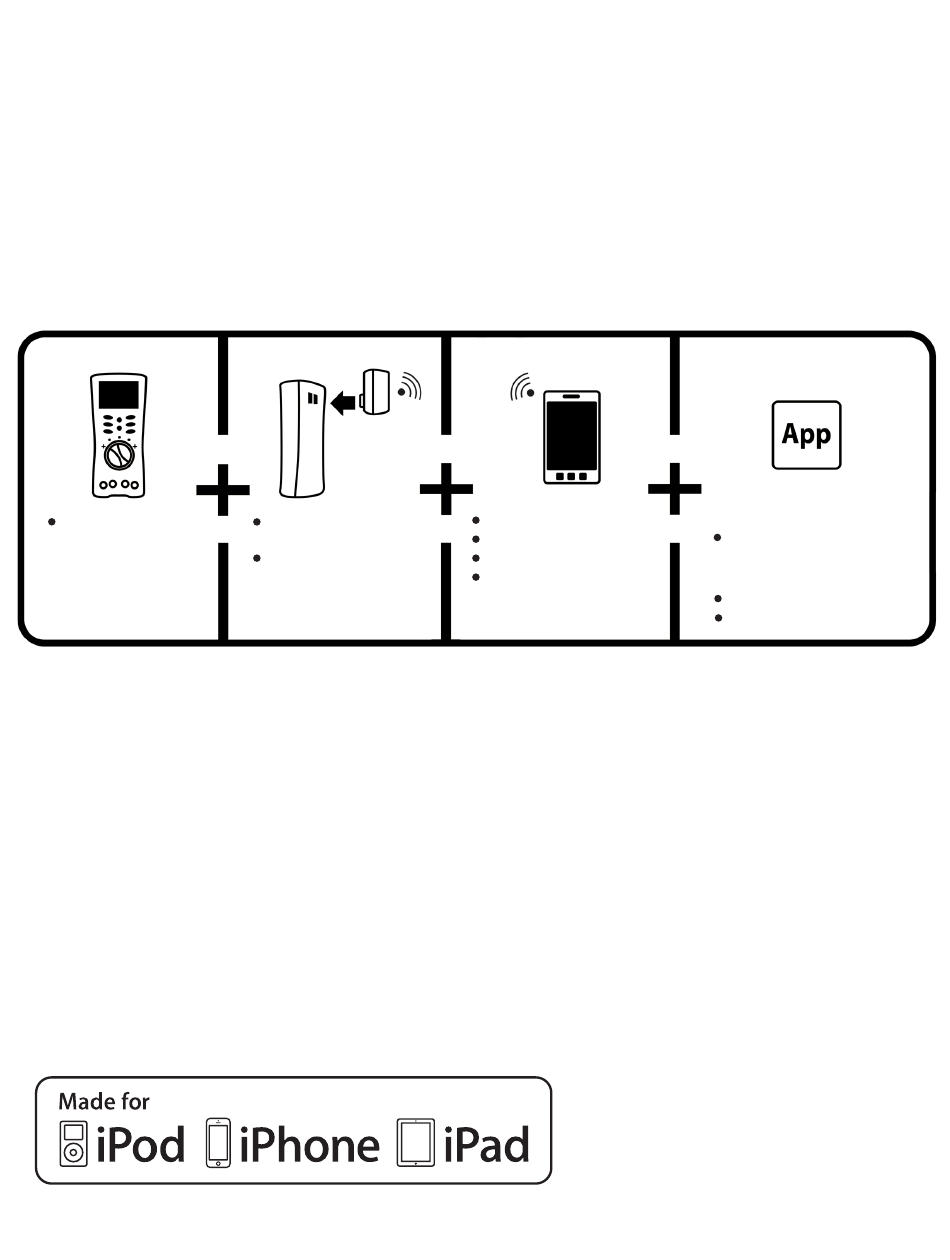

Figure 1. Keysight wireless remote connectivity solution
Standard Shipped Items Checklist
The following items are included when you make a purchase:
- U1117A IR-to-Bluetooth adapter
- Two 1.5 V AAA batteries
- Operating Instructions (this sheet)
The Bluetooth
word mark and logos are registered trademark owned by Bluetooth SIG, Inc and any
1
®
use of such marks by Keysight is under license. Other trademark and trade names are those of their
respective owners.
Only applicable when connected to any dongle with Bluetooth Class 1 classification.
2
U1117A IR-to-
Bluetooth adapter
U1177A IR-to-
Bluetooth adapter
adapter is designed to be used with the
®1
.
2
Windows PC
Android devices
iOS devices
U1115A remote logging
display
1
Keysight PC Application Software
Keysight Handheld Meter
Logger
Keysight Mobile Application
Keysight Mobile Meter
Keysight Mobile Logger
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Keysight U1117A
Summary of Contents for Keysight U1117A
- Page 1 Bluetooth SIG, Inc and any ® use of such marks by Keysight is under license. Other trademark and trade names are those of their respective owners. Only applicable when connected to any dongle with Bluetooth Class 1 classification.
-
Page 2: Product Characteristics
Bluetooth Bluetooth SPP profile, Class 1 device, range up to 100 m Compatibility Keysight Handheld Meter/Display: - Keysight U1200 Series Handheld Meters - Keysight U1115A Remote Logging Display Keysight PC Application Software: - Keysight Handheld Meter Logger Keysight Mobile Application:... - Page 3 Regulatory The U1117A complies with the requirements of the following product standards: - EMC Complies with - EN 301 489–1V1.9.2 IMDA Standards - EN 301 489–17:V2.2.1 (N5464-19) - EN 55022:2010 - EN 55024:2010 - RF (Bluetooth) - EN 300 328 V1.7.1...
- Page 4 - “Este equipamento opera em caráter secundário, isto é, não tem direito a proteção contra interferência prejucidial, mesmo de estações do mesmo tipo, e não pode causar interferência a sistemas operando em caráter primário”. Manter distância mínima de 10 cm do corpo humano. Para maiores in formações, consulte o site da ANATEL www.anatel.gov.br - The radio module certified by Japanese Radio Law is integrated inside.
-

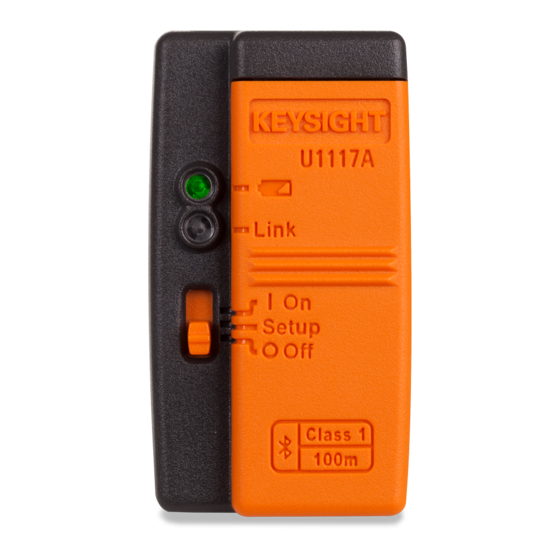

Page 5: Front View
- The adapter can only be used with Keysight handheld meters. Install and Replace the Batteries Make sure you turn off the U1117A before installing or replacing the batteries To avoid the U1117A being damage from battery leakage: - Always remove dead batteries immediately. - Page 6 Set the slide switch to On. Configure the U1117A The U1117A is designed to be used straight from the box without any configuration. How- ever, if your hardware requires special configuration, you may setup the U1117A using the U1117A Configuration Utility— downloadable at www.keysight.com/find/U1117A...
- Page 7 Connect Your U1117A Adapter to the Keysight Handheld Meter Snap the optic side of the U1117A to the handheld meter’s IR communication port. Install the U1117A to PC via Bluetooth - Before you begin, make sure the Bluetooth connection on your PC is enabled.
-
Page 8: Maintenance
Keysight U1117A adapter. Visit the URLs below for more information on the Keysight Mo- bile Apps: www.keysight.com/find/hhmeterapp Maintenance If any part of the adapter is worn out or damaged, replace it with a new U1117A adapter. Assistance For technical assistance, contact your nearest Keysight Sales Office or visit the Keysight website at www.keysight.com/find/assist...
