Keysight U1586B Operating Instructions

Keysight U1586B Temperature Adapter
Operating Instructions

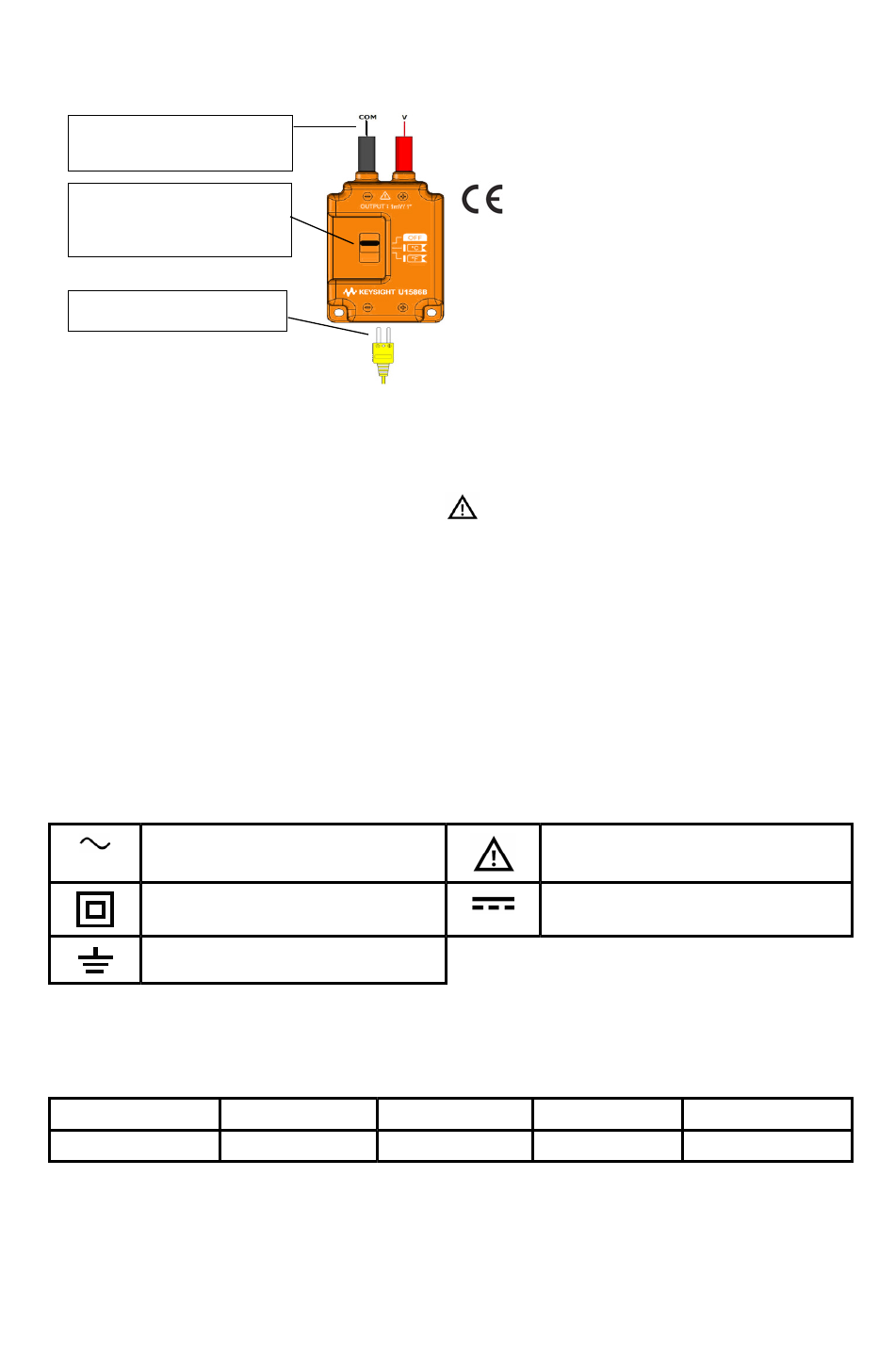

The U1586B temperature adapter is designed for Keysight handheld digital multimeter (DMM), Keysight
handheld oscilloscope, and K-Type thermocouple.
OUTPUT: mV output proportional
to inside battery. °C and °F as the
position of slider switch
Slider switch:
• OFF: inside battery level
• °C: 1 mV/°C
• °F: 1 mV/°F
INPUT: K-type thermocouple
with miniature connector
Assistance
For technical assistance, contact your nearest Keysight Sales Office or visit the Keysight website at
www.keysight.com/find/assist
Safety Informations
Please use the Keysight U1586B temperature adapter only as specified in this manual. Otherwise, the protec-
tion provided may be impaired. Refer to the safety information below.
To avoid possible electric shock, personal injury or damage to this instrument and ensure that you use the
adapter safely, follow these guidelines:
- Do not use the adapter if it is damaged. Before you use the adapter inspect the case. Look for cracks or
missing
plastic. Pay particular attention to the insulation surrounding the connectors.
- Do not touch thermocouple probe to hazardous voltage.
- Do not operate the adapter around explosive gas, vapor or dust.
- When servicing the adapter, use only specified replacement parts.
- Removed all connections as battery replacement
- Use caution when working above 30 V ac rms, 42 V peak or 60 V dc. Such voltage pose a shock hazard.
- Avoid working alone.
- Do not operate the adapter as the cover removed or loosened.
To avoid possible damage to the temperature adapter or to the equipment under test, follow below guide-
lines:
- Do not connect output banana plugs to any power source.
- Use the proper terminals, function, and range for your measurements.
AC - Alternating Current
Double Insulation
Ground
Battery Voltage Test
Set the adapter's slider switch to OFF position, the output will output the proportional mili-volt to represent
the battery voltage inside. The proportional scale is DC 9.9 mV per 1 V of battery voltage inside. The operat-
ing voltage suggested is up to 7.5 V of battery. So, always make sure the mili-volt output is up to 74.2 mV
before temperature measurement.
Battery Voltage
Output of U1586B
Introductions
The U1586B temperature adapter accepts any K-Type thermocouple with miniature connector and converts
it to 1 milli-volt per degree (Celsius or Fahrenheit).
Standard Item Purchased Checklist
The following items are included when you make a purchase:
•
U1586B temperature adapter
•
K-Type bead probe
•
Operation Instructions sheet (this sheet)
for further information.
10 V
99.0 mV 89.1 mV
Conform to European Union Directives
IEC/ EN 61010-12001 (2nd Edition)
WARNING
CAUTION
Caution, risk of danger (Refer to the user's
and service guide for details)
DC - Direct Current
9 V 8 V
79.2 mV
7.5 V
74.2 mV
