Keysight U1117A IR-to-Bluetooth Adapter
Operating Instructions
The Keysight U1117A Infrared (IR)-to-Bluetooth
Keysight U1200 Series handheld meters. The U1117A adapter enables you to connect the
handheld meter to the Keysight U1115A remote logging display or Windows PC/Android
devices/iOS devices via the Keysight mobile application/PC application software for a
total wireless remote connectivity solution of up to 100-metres
Keysight U1200
Series handheld
meters

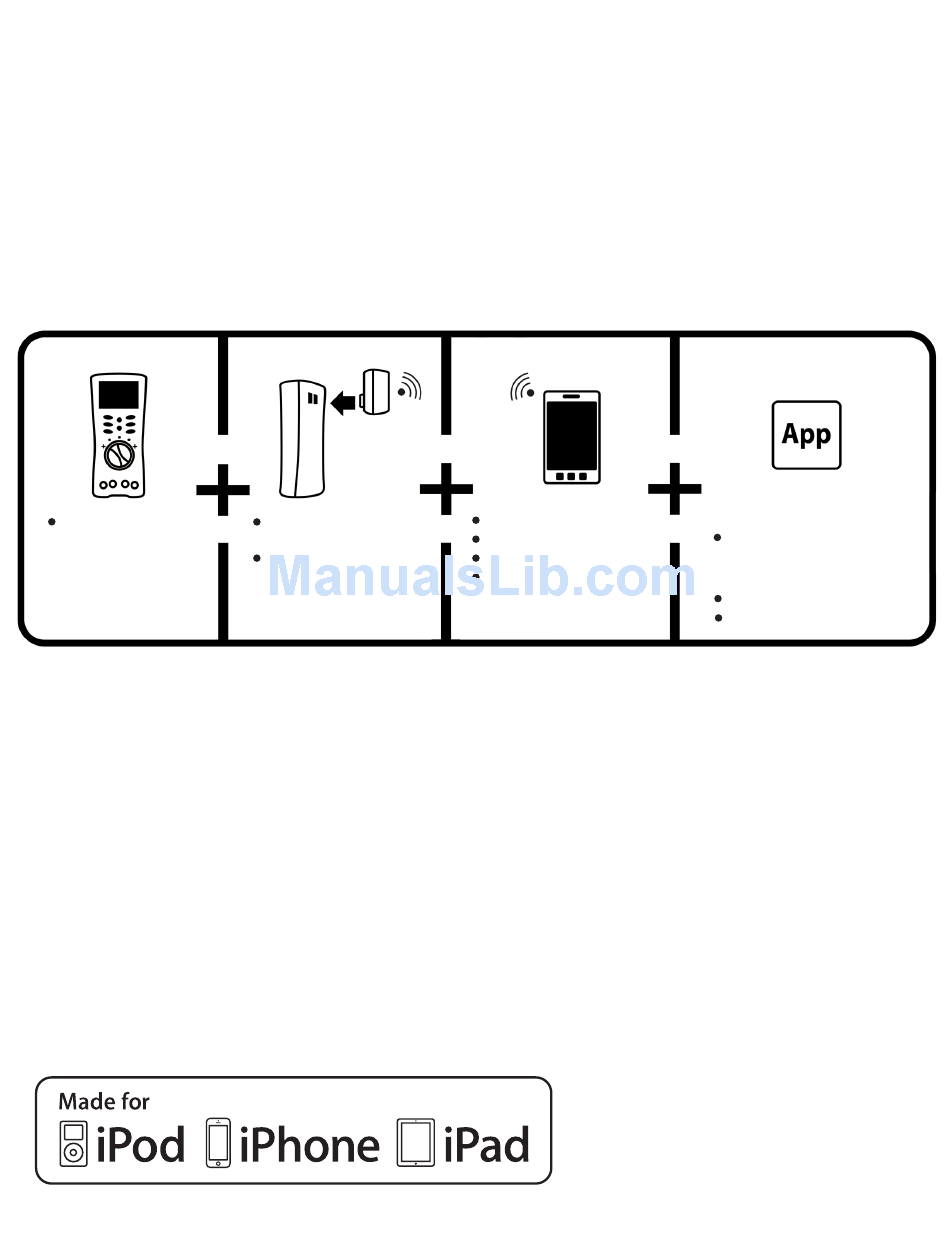

Figure 1. Keysight wireless remote connectivity solution
Standard Shipped Items Checklist
The following items are included when you make a purchase:
• U1117A IR-to-Bluetooth adapter
• Two 1.5 V AAA batteries
• Operating Instructions (this sheet)
The Bluetooth
word mark and logos are registered trademark owned by Bluetooth SIG, Inc and any
1
®
use of such marks by Keysight is under license. Other trademark and trade names are those of their
respective owners.
Only applicable when connected to any dongle with Bluetooth Class 1 classification.
2
U1117A IR-to-
Bluetooth adapter
U1177A IR-to-
Bluetooth adapter
adapter is designed to be used with the
®1
Windows PC
Android devices
iOS devices
U1115A remote logging
display
1
.
2
Keysight PC Application Software
Keysight Handheld Meter
Logger
Keysight Mobile Application
Keysight Mobile Meter
Keysight Mobile Logger
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Keysight U1117A
Summary of Contents for Keysight U1117A
- Page 1 Bluetooth SIG, Inc and any ® use of such marks by Keysight is under license. Other trademark and trade names are those of their respective owners. Only applicable when connected to any dongle with Bluetooth Class 1 classification.
-
Page 2: Product Characteristics
Three months (Does not cover normal wear and tear of mechanical parts and batteries) Bluetooth Bluetooth SPP profile, Class 1 device, range up to 100 m Compatibility Keysight Handheld Meter/Display: • Keysight U1200 Series Handheld Meters • Keysight U1115A Remote Logging Display Keysight PC Application Software: • Keysight Handheld Meter Logger Keysight Mobile Application: •... - Page 3 Regulatory The U1117A complies with the requirements of the following product standards: Complies with • IDA Standards • EN 301 489–1V1.9.2 DB 102425 • EN 301 489–17:V2.2.1 • EN 55022:2010 • EN55024:2010 • RF ( Bluetooth) • EN 300 328 V1.7.1 • RF (Health) • EN 62311:2008 •...
- Page 4 • “Este produto está homologado pela Anatel, de acordo com os procedimentos regulamentados pela Resolução nº 242/2000 e atende aos requisitos técnicos aplicados, incluindo os limites de exposição da Taxa de Absorção Específica referente a campos elétricos, magnéticos e eletromagnéticos de radiofrequência de acordo com as Resoluções nº...
- Page 5 • According to FCC part 15:21, changes or modifications not expressly approved by the manufacturer for compliance could void the user’s au- thority to operate the equipment. • According to FCC part 15.105(b): This equipment has been tested and found to comply with the lim- its for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 6: Front View
• he adapter can only be used with Keysight handheld meters. Install and Replace the Batteries Make sure you turn off the U1117A before installing or replacing the batteries. To avoid the U1117A being damage from battery leakage: •... - Page 7 1. Slide the battery cover 2. Insert the batteries. 3. Reverse the sliding away from adapter’s position to close the body. battery cover. Turn On the U1117A Set the slide switch to On. Configure the U1117A The U1117A is designed to be used straight from the box without any configuration. How- ever, if your hardware requires special configuration, you may setup the U1117A using the U1117A Configuration Utility— downloadable at www.keysight.com/find/U1117A...
- Page 8 1. Open the battery cover. Then, set the 2. Use a flat-blade screwdriver to push the slide switch to Setup. button located in the hole for around three seconds. Connect Your U1117A Adapter to the Keysight Handheld Meter Snap the optic side of the U1117A to the handheld meter’s IR communication port.
- Page 9 1. Open the Keysight Handheld Meter Logger. 2. On the Connected Instruments List (at the bottom), select the U1117A-XXXXX and click Connect to establish the multimeter connection. 3. The multimeter will remain connected until the connection is disconnected or the U1117A is turned off.
-
Page 10: Maintenance
Visit the URLs below for more information on the Keysight Mobile Apps: Android devices http://play.google.com/store/apps/details?id=com.keysight.mobilemeter http://play.google.com/store/apps/details?id=com.keysight.mobilemeterlogger iOS devices https://itunes.apple.com/us/app/keysight-mobile-meter/id675491562?ls=1&mt=8 https://itunes.apple.com/us/app/keysight-mobile-logger/id675497444?ls=1&mt=8 Maintenance If any part of the adapter is worn out or damaged, replace it with a new U1117A adapter. Assistance For technical assistance, contact your nearest Keysight Sales Office or visit the Keysight website at www.keysight.com/find/assist for further information. 1852-14-7510 U1117-90103 ©Keysight Technologies, Inc., 2014...
