Configuration Manual
Keysight U1177A IR-to-Bluetooth Adapter
Operating Instructions
The Keysight U1177A IR-to-Bluetooth
Remote Connectivity (WRC) compatible handheld meters only, where it allows Bluetooth
communication between the meter and PC. The U1177A is powered by two AAA batteries, is
able to operate for about 30 hours (with new alkaline batteries), and provides connectivity up to
a radius of 10 metres. (refer to
of WRC-compatible handheld meters)
Front View

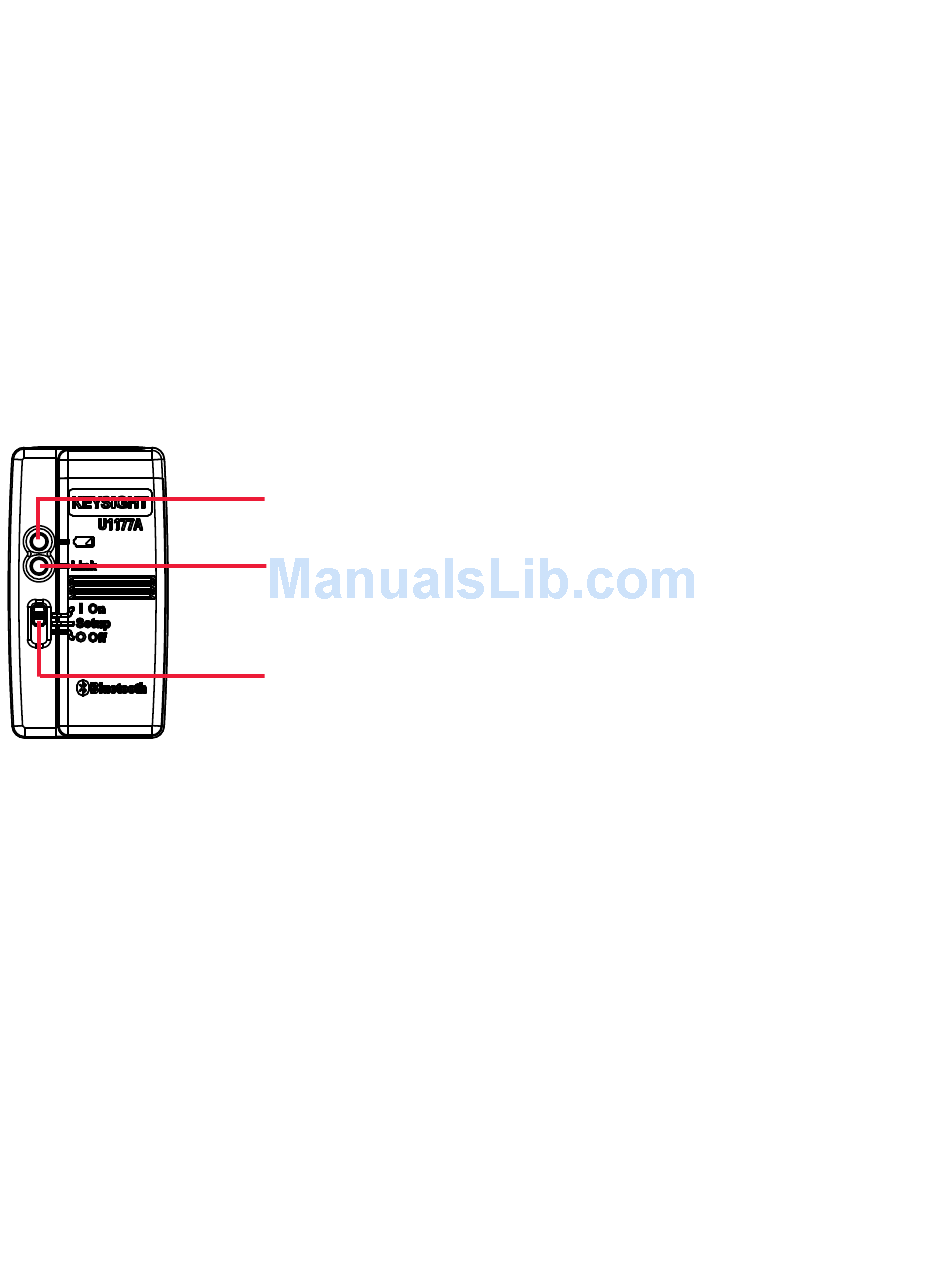

LED Indicator and Slide Switch
Standard Shipped Items Checklist
The following items are included when you make a purchase:
• U1177A IR-to-Bluetooth adapter
• Two 1.5 V AAA batteries
• Operating Instructions (this sheet)
Assistance
For technical assistance, contact your nearest Keysight Sales Office or visit the Keysight website
at
www.keysight.com/find/assist
The Bluetooth
word mark and logos are registered trademark owned by Bluetooth SIG, Inc and any use of such
1
®
marks by Keysight is under license. Other trademark and trade names are those of their respective owners.
adapter is designed for use with Keysight Wireless
®1
http://www.keysight.com/find/U1177A
Low battery — LED red flashing
1. Bluetooth disconnected — LED green flashing
2. Bluetooth connected — LED solid green
3. Bluetooth power off — LED off
Slide switch
for further information.
for a comprehensive list
Advertisement
Table of Contents
Related Manuals for Keysight U1177A
Summary of Contents for Keysight U1177A
-
Page 1: Front View
The Bluetooth word mark and logos are registered trademark owned by Bluetooth SIG, Inc and any use of such ® marks by Keysight is under license. Other trademark and trade names are those of their respective owners. - Page 2 WARRANTY: Three months (Does not cover normal wear and tear of mechanical parts and batteries) BLUETOOTH: Bluetooth Version 2.1 + EDR compliant, SPP profile, Class 2 device SAFETY: The U1177A complies with the requirements of the following safety and regulatory standards: • FCC Part15C (Certification) (15.209, 15.247) •...
- Page 3 Please remember to remove the batteries when the adapter is not in use for a long period of time. Warning on the risk of battery leakage. • The adapter can only be used with Keysight handheld digital multimeters. • The radio module certified by Japanese Radio Law is integrated inside.
- Page 4 10. Click Finish to complete the connection. The U1177A-XXXXXX is now added and connected successfully. 11. If you already had the U1177A added in My Bluetooth Places, double-click U1177A to establish a wireless serial connection with your remote multimeter. 12. Double-click U1177A again to disconnect the wireless serial connection.
- Page 5 • Only one host computer is able to connect to the U1177A at a time. Install and Replace the Batteries Make sure you turn off the U1177A before installing or replacing the batteries.
- Page 6 PC/smartphone/tablet must be matched before communication can be established. All U1177A units and handheld multimeters are shipped with the same default COM port configurations as shown above. Maintenance If any part of the adapter is worn out or damaged, replace it with a new U1177A adapter.
-
Page 7: Additional Information
Additional Information For more information on configuring the U1177A via Hyper Terminal and AT Commands, please refer to the Keysight U1177A IR-to-Blutooth Adapter Configuration Guide which can be found on the Keysight U1177A product page (http://www.keysight.com/find/U1177A). Keysight Mobile Apps Keysight has two Mobile Apps available for use with this product; Keysight Mobile Meter and Keysight Mobile Logger.
