- Page 1 Keysight 11878A 50 Ohm 3.5 mm Adapter Kit Operating and Service Manual...
- Page 2 Declarations of Conformity for this product ceed beyond a CAUTION notice until the indi- the DFARS and are set forth specifically in and for other Keysight products may be down- cated conditions are fully understood and met. writing elsewhere in the EULA. Keysight shall loaded from the Web.
-
Page 3: Waste Electrical And Electronic Equipment (Weee) Directive
To return this unwanted instrument, contact your nearest Keysight Service Center, or visit http:// about.keysight.com/en/companyinfo/environment/takeback.shtml for more information. Sales and Technical Support To contact Keysight for sales and technical support, refer to the support links on the following Keysight websites: – www.keysight.com/find/adapters (product-specific information and support, software and documentation updates) –... - Page 4 THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK. Keysight 11878A Operating and Service Manual...
-
Page 5: Table Of Contents
..........10 Mating 11878A Adapters with Precision 3.5 mm Devices . - Page 6 THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK. Keysight 11878A Operating and Service Manual...
-
Page 7: List Of Tables
........10 Keysight 11878A Operating and Service Manual... - Page 8 THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK. Keysight 11878A Operating and Service Manual...
-
Page 9: General Information

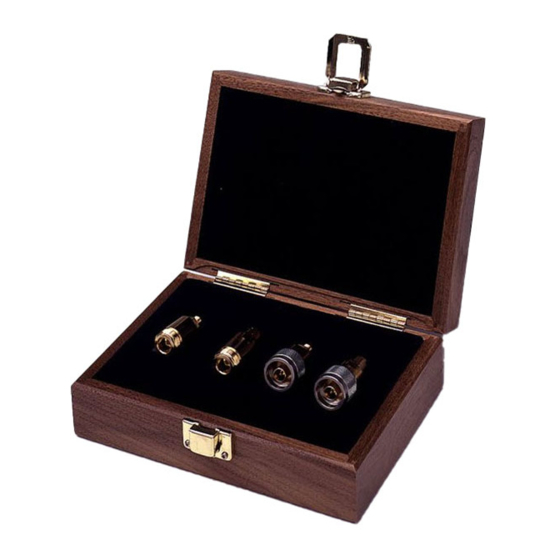

– Read and follow the directions provided later in this document when mating these adapters with SMA connectors. Description The 11878A 50 ohm 3.5 mm adapter kit contains four type-N to precision 3.5 mm adapters. The kit is useful for testing 3.5 mm devices on a network analyzer equipped with type-N test port connectors. -
Page 10: Equipment And Supplies
– NEVER rotate either center conductor (by turning the device body). – Only turn the outer nut of the male connector. – Torque to 8 in-lb (96 N-cm) for the final connection. An 8 in-lb torque wrench is available from Keysight Technologies. Refer to “Equipment and Supplies”... -
Page 11: Mating 11878A Adapters With Sma Devices
SMA connectors will mate with precision 3.5 mm connectors. However, caution is necessary to prevent accidental damage due to worn or out-of-tolerance SMA connectors. Such connectors can destroy a precision 3.5 mm connector even on the first connection. Keysight Technologies recommends that you remember the following important information: –... -
Page 12: Cleaning Connectors
Cleaning Connectors For information on cleaning connectors, refer to the Connector Care for RF and Microwave Coaxial Connectors document. It can be viewed online by searching for part number 08510-90064 at www.keysight.com. Keysight 11878A Operating and Service Manual... - Page 13 This information is subject to change without notice. Always refer to the Keysight website for the latest revision. © Keysight Technologies 1989 - 2019 Edition 2, February 8, 2019 Printed in Malaysia *11878-90001* 11878-90001 www.keysight.com...
