CAUTION! The LX Arm Accessory is designed to be used with the
45-295 LX Desk Mount LCD Arm, Tall Pole and the 45-509 LX Dual
Stacking Arm, Tall pole products. Using the LX Arm Accessory with
any other product may create an unstable situation resulting in
equipment damage and/or personal injury.
www.ergotron.com |
|
|
|
USA: 1-800-888-8458
Europe: +31 (0)33-45 45 600
China: 400-120-3051
Japan: japansupport@ergotron.com
Advertisement
Related Manuals for Ergotron 45-295
Summary of Contents for Ergotron 45-295

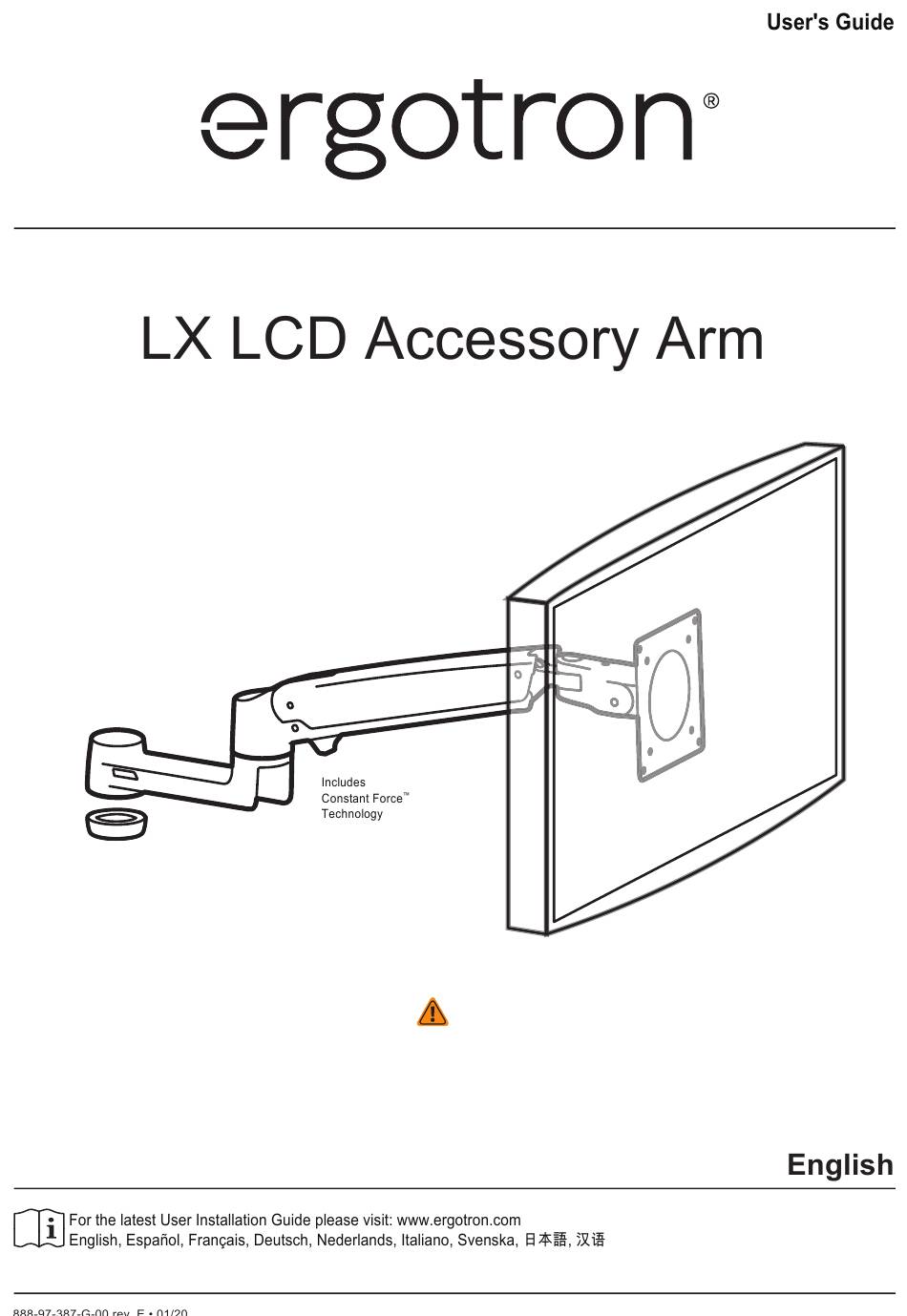

- Page 1 CAUTION! The LX Arm Accessory is designed to be used with the 45-295 LX Desk Mount LCD Arm, Tall Pole and the 45-509 LX Dual Stacking Arm, Tall pole products. Using the LX Arm Accessory with any other product may create an unstable situation resulting in equipment damage and/or personal injury.
-
Page 2: Features And Specifications
Features & Specifi cations Can have up to 4 arms on a pole when used with the 45-509 LX Dual Stacking Arm, Tall pole See updated maximum weight capacities: 7 - 20 lbs (3.2 - 9.1 kg) 11 lbs (5 kg) per monitor 360°... -
Page 3: Tools Needed
Components M4 x 10mm 2.5mm M4 x 10mm M3 x 6mm 1/8” 10 - 24 x 1/2” Tools Needed... - Page 4 M4 x 10mm M4 x 10mm M3 x 6mm 0°...
- Page 5 2.5mm CAUTION! The LX Arm Accessory is designed to be used only with the 45-295 LX Desk Mount LCD Arm, Tall Pole product, with a total of two (2) arms per pole. Using the LX Arm Accessory with any other product or in quantities greater than two (2) arms per pole may create an unstable situation resulting in equipment damage and/or personal injury.
- Page 6 2.5mm...
- Page 7 NOTE: Leave enough slack in cable to allow full range of motion. Caution: To avoid the potential to pinch cables it is important to follow the cable routing instructions in this manual. Failure to follow these instructions may result in equipment damage or personal injury.
- Page 8 Adjustment Step Important! You will need to adjust this product after installation is complete. Make sure all your equipment is properly installed on the product before attempting adjustments. This product should move smoothly and easily through the full range of motion and stay where you set it. If movements are too easy or diffi cult or if product does not stay in desired positions, follow the adjustment instructions to create smooth and easy movements.
- Page 9 Tilt – Forward and Backward CAUTION: DO NOT remove screw. Removing screw may cause damage to Increase Friction equipment. If this product moves too easily, then you'll need to increase friction: Decrease Friction If this product is too diffi cult to move, then you'll need to decrease friction: Arm Swing –...
