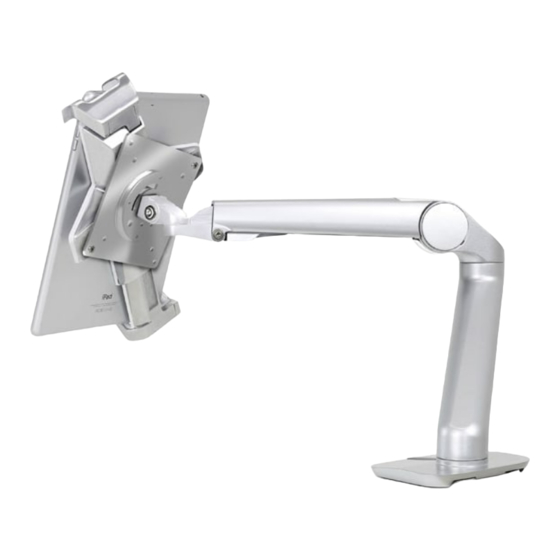

MX mini Desk Mount LCD Arm
For Grommet Hole
Mounting
Ø 3/8" (9.5 mm)
User's Guide
1 of 9
Advertisement
Related Manuals for Ergotron 45-436-026
Summary of Contents for Ergotron 45-436-026
-
Page 1: Tools Needed

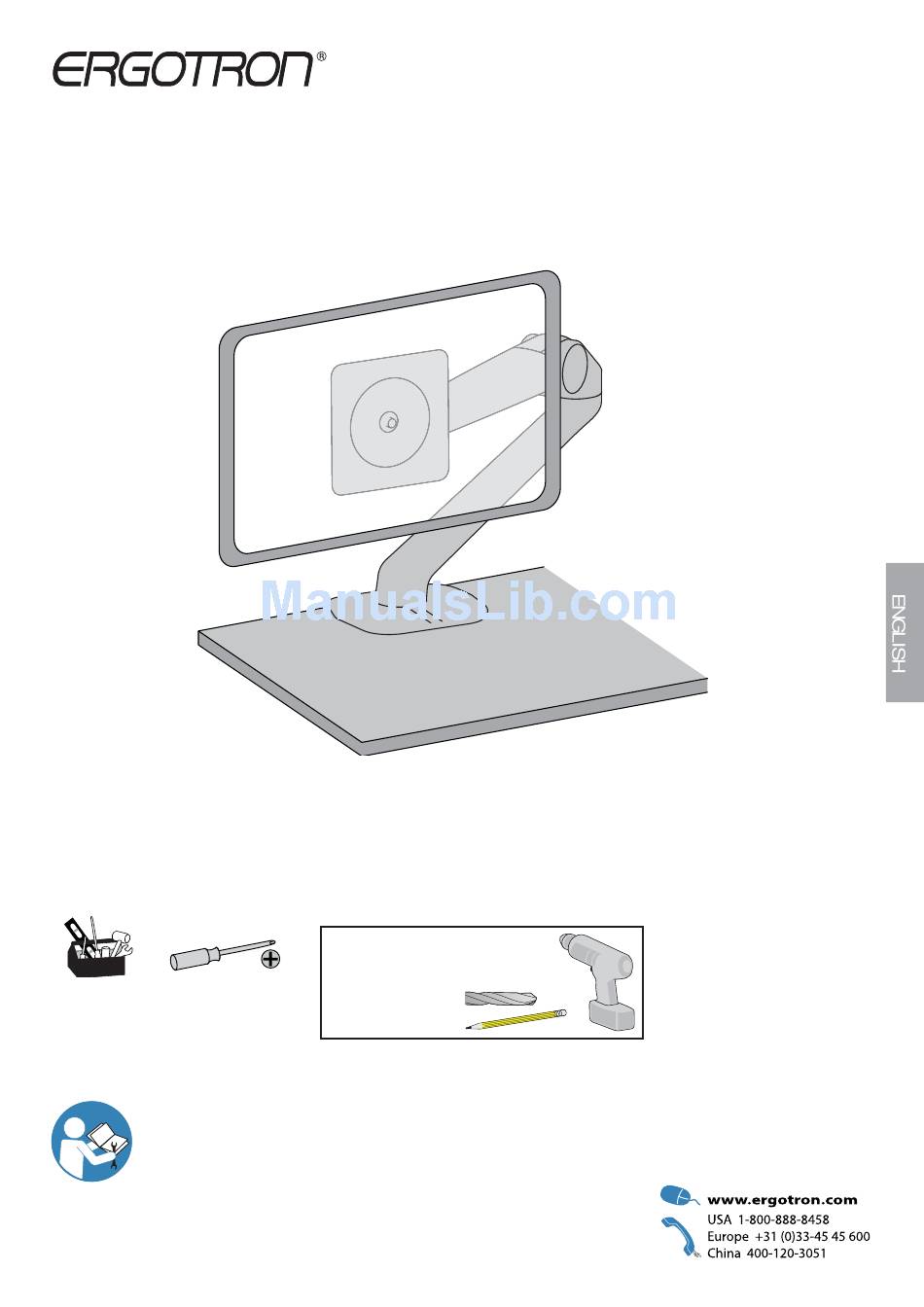

MX mini Desk Mount LCD Arm Tools Needed For Grommet Hole Mounting Ø 3/8" (9.5 mm) For the latest User Installation Guide please visit: www.ergotron.com User's Guide - English Guía del usuario - Español Manuel de l’utilisateur - Français Gebruikersgids - Deutsch Benutzerhandbuch - Nederlands Guida per l’utente - Italiano... - Page 2 Hazard Symbols Symbol Signal Word Level of Hazard Review A NOTE indicates important information that helps you NOTE make better use of this product. These symbols alert users of a safety condi- tion that demands attention. All users should A CAUTION indicates either potential damage to be able to recognize and understand the CAUTION hardware or loss of data and tells you how to avoid the...
- Page 3 Features & Specifi cations 12.6” (320 mm) Side View < 8 lbs. (3.6 kg) 90° CAUTION: DO NOT EXCEED MAXIMUM LISTED WEIGHT CAPACITY. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR! 5° Side View 180° 360° Top View Top View 180° Top View Front View Portrait/Landscape Rotation.
- Page 4 Choose 1 of the 3 Mounting Options: CLAMP GROMMET HOLE Ergotron WorkFit-T 0.28”-1.36” 1.27”-2.35” (7-35 mm) (32-60 mm) 4 of 9 888-45-340-G-00 rev. D • 04/16...
- Page 5 GROMMET HOLE Ø 3/8” (9.5 mm) < 3” (77 mm) M8 x 95mm M6 x 16mm CAUTION: Bolt must be centered in hole. 5 of 9 888-45-340-G-00 rev. D • 04/16...
- Page 6 Ergotron WorkFit-T M6 x 22mm 15x7x1mm 6 of 9 888-45-340-G-00 rev. D • 04/16...
- Page 7 Attach Display Remove Stop Screw if you would like Portrait/Landscape Rotation. M3 x 5mm 0° M4 x 10mm M4 x 10mm NOTE: VESA plate will only accept 75mm or 100mm VESA pattern. NOTE: Leave enough slack in cable to allow full range of motion. Caution: To avoid the potential to pinch cables it is important to follow the cable routing instructions in this manual.
- Page 8 Adjustment Step You may need to adjust this arm over time as the friction pivot could change tension. 10mm Increase Friction If this product moves too easily, then you'll need to increase friction: Decrease Friction If this product is too diffi cult to move, then you'll need to decrease friction: 8 of 9 888-45-340-G-00 rev.
- Page 9 Blink - Blink often to avoid dry eyes. Break • 2 to 3 minutes every 20 minutes • 15 to 20 minutes every 2 hours. For local customer care phone numbers visit: http://contact.ergotron.com NOTE: When contacting customer service, reference the serial number.
