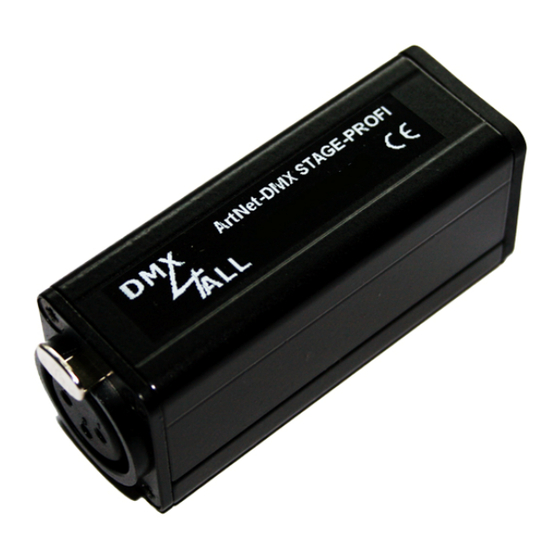

- Page 1 ArtNet-DMX STAGE-PROFI 1.1 User Manual Art-Net™ Designed by and Copyright Alderamin Group Ltd.
- Page 2 WiFi networks. As WiFi-bridge we suggest: Netgear WNCE2001. Firmware-Update-Function In order to take advantage of future features, the ArtNet-DMX STAGE-PROFI 1.1 has a firmware update function. This can be launched from the browser so that no access to the device is necessary!
-
Page 3: Technical Data
- 1024 channels OUT within the Extension Mode - 512 channels IN For DMX-INPUT operation a DMX adapter MALE/MALE is necessary Protocol: Art-Net™ or Virtual COM Port with DMX4ALL Commands (just like LAN-DMX STAGE-PROFI) Dimensions (LxBxH): 75 x 26 x 35 mm Connection... -
Page 4: Led Display
PC is not within the IP-range of the ArtNet-DMX STAGE- PROFI 1.1 Install the program IP-Configurator Connect the ArtNet-DMX STAGE-PROFI 1.1 with the net work and turn it on Start the IP-Configurator The ArtNet-DMX STAGE-PROFI 1.1 is shown in the list... - Page 5 ArtNet-DMX STAGE-PROFI 1.1 Setting the IP via Web browser The assigned IP-address 2.0.0.10 in the delivery status will be used for the web- interface as well as for the ArtNet. Please set the net work card to this IP-range to call the IP-address via the web browser.
-
Page 6: Device Configuration
ArtNet-DMX STAGE-PROFI 1.1 Device configuration Please call the IP-address 2.0.0.10 (delivery status) in the address bar of the web browser for getting the following configuration page: Each node needs an own IP-address, so the assignment in the network occurs clearly. According to the ArtNet-specifications please use the IP- addresses 2.x.x.x or 10.x.x.x. - Page 7 ArtNet-DMX STAGE-PROFI 1.1 DMX-Output For using the ArtNet-DMX STAGE-PROFI 1.1 as a DMX-OUTPUT interface please select the Interface Mode DMX-Output in the Global-Settings. By clicking DMX-Output you reach the following configuration-site: The ArtNet-parameters SubNet, Net and Port must be set in the sense of the ArtNet- specifications and show the aim for the DMX-data.
- Page 8 ArtNet-DMX STAGE-PROFI 1.1 The DMX-Routing specifies for the DMX-output how the Ports data hang together in the Extension Mode. The entered value specifies how many DMX-channels from the first Port should be outputted. After this the DMX-channels of the second Ports are attached.
- Page 9 ArtNet-DMX STAGE-PROFI 1.1 DMX-Input For using the ArtNet-DMX STAGE-PROFI 1.1 as a DMX-Input interface please select the Interface-Mode DMX-Input in the Global-settings. Please use a 1:1 MALE-MALE adapter for the connection which is separately available. By clicking DMX-Input reach the following configuration-site: The ArtNet-parameters SubNet, Net and Port must be set in the sense of the ArtNet- specifications and show the source for the DMX-data.
- Page 10 The ArtNet-DMX STAGE-PROFI 1.1 interface has an additional communication-port which can receive the data from TCP-bundle at the port 10001. This port uses the DMX4ALL-Commands in this way, that the ArtNet-DMX STAGE-PROFI 1.1 interface is compatible to the LAN-DMX STAGE-PROFI.
-
Page 11: Factory Reset
Available and the COM-port will be displayed in the device manager. Factory Reset The ArtNet-DMX STAGE-PROFI 1.1 can be reset in the delivery status. Proceed as follows: Open the Main Settings within the web browser Enter the shown Code „7319“ within the entry field Factory Defaults... - Page 12 ArtNet-DMX STAGE-PROFI 1.1 Execute Firmware-Update The ArtNet-DMX STAGE-PROFI 1.1 has an update-function which enables transferring prospective firmware-versions. Proceed as follows: Turn off the device Start Update-Software DMX4ALL LAN-Updater Generate a network connection to PC Turn on the device The yellow LED lights up for approx. 3 seconds While the yellow LED is ON, click FIND Select the ArtNet-DMX STAGE-PROFI 1.1 from the list...
- Page 13 ArtNet-DMX STAGE-PROFI 1.1 DMX über WLAN The ArtNet-DMX STAGE-PROFI 1.1 can be used together with WiiFi components to transfer the DMX data wireless. It is possible to transfer one or more DMX universes. The following picture shows the operation with one DMX-Universe:...
- Page 14 ArtNet-DMX STAGE-PROFI 1.1 Alternatively an APP, which redisplays ArtNet on a smart phone or PC, can be used as data source: WiFi ArtNet-DMX Access STAGE-PROFI 1.1 Point Configurated as DMX-Output LAN connection DMX connection WLAN connection...
- Page 15 ArtNet-DMX STAGE-PROFI 1.1 Equipment XLR-cable 3pin Lenghts: 1m, 5m, 10m, 15m XLR-adapter Available in various designs XLR 3 male – XLR 3 male XLR 3 male – XLR 5 female XLR 3 female – XLR 5 male Ethernet-Cable In different length...
- Page 16 ArtNet-DMX STAGE-PROFI 1.1 Risk-Notes You purchased a technical product. Conformable to the best available technology the following risks should not excluded: Failure risk: The device can drop out partially or completely at any time without warning. To reduce the probability of a failure a redundant system structure is necessary.
- Page 17 Germany Last changes: 07.11.2019 © Copyright DMX4ALL GmbH All rights reserve. No part of this manual may be reproduced in any form (photocopy, pressure, microfilm or in another procedure) without written permission or processed, multiplied or spread using electronic systems.
