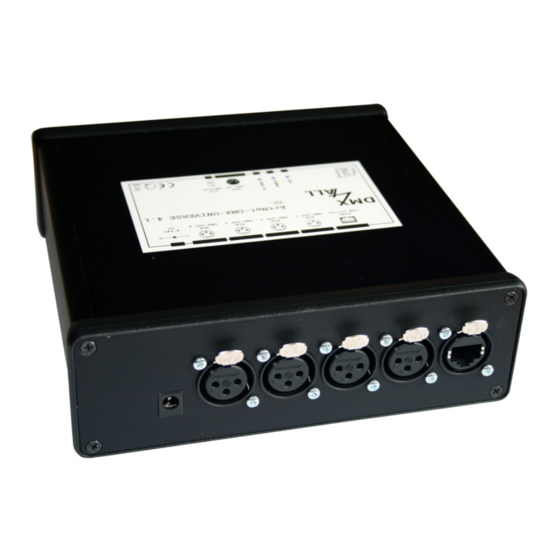

ArtNet DMX-UNIVERSE 4.1
User Manual
Art-Net™ Designed by and Copyright Artistic Licence Holdings Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ArtNet-DMX-UNIVERSE 4.1 and is the answer not in the manual?

Questions and answers

Summary of Contents for DMX4ALL ArtNet-DMX-UNIVERSE 4.1

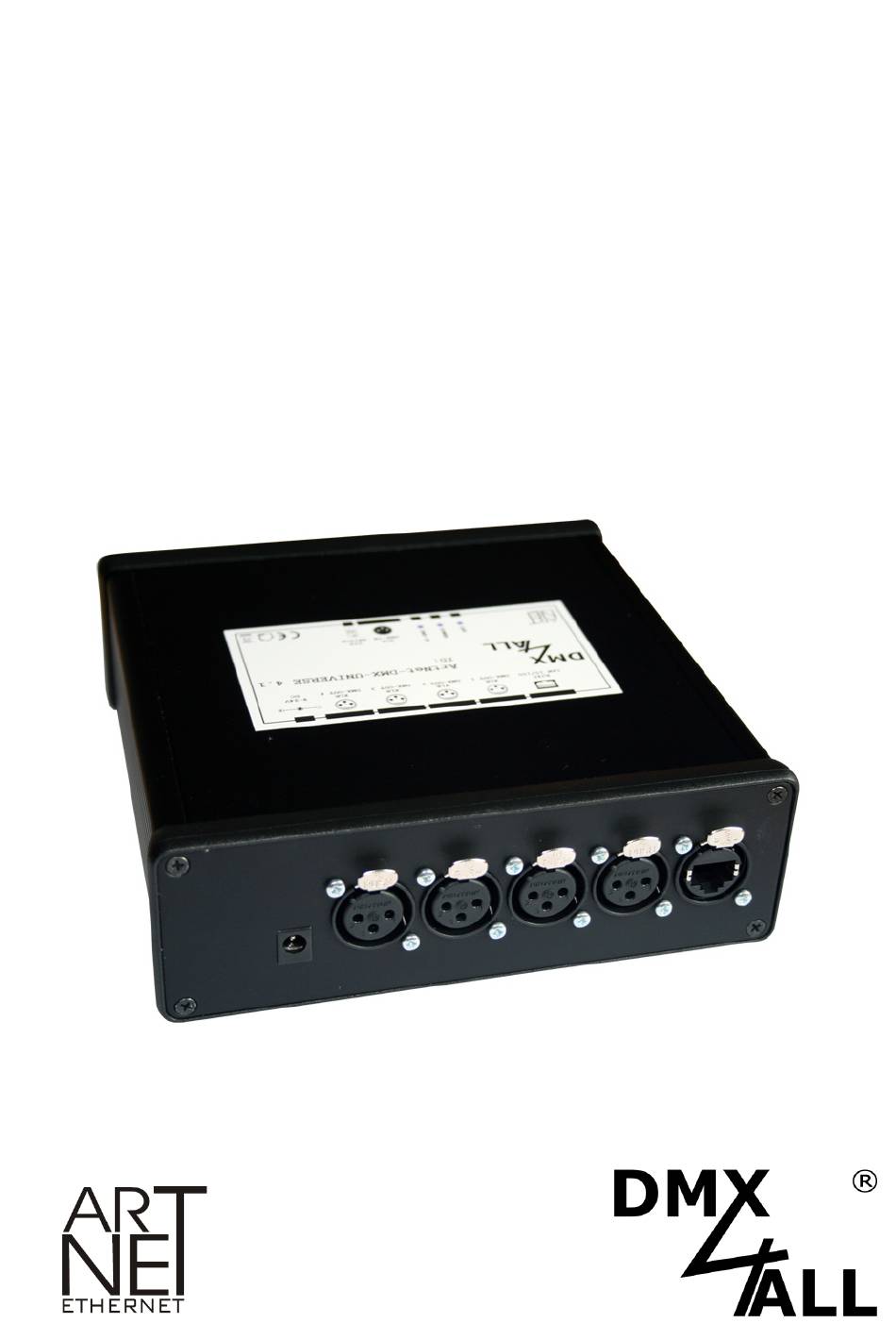

  • Page 1 ArtNet DMX-UNIVERSE 4.1 User Manual Art-Net™ Designed by and Copyright Artistic Licence Holdings Ltd.
  • Page 2: Data Sheet

    ArtNet DMX-UNIVERSE 4.1 Description The ArtNet-DMX-UNIVERSE 4.1 interface has 4 DMX-outputs and 1 DMX-input. All DMX-outputs and inputs are galvanically isolated und can be used simultaneously. With a RJ45 connection occurs the contact to the ArtNet-network. A user-friendly configuration with a web browser allows a fast and uncomplicated adjustment for all parameters.
  • Page 3 ArtNet DMX-UNIVERSE 4.1 Connection ETHERNET DMX-OUT 4 DMX-OUT 2 POWER 7-24V= DMX-OUT 3 DMX-OUT 1 CONFIG DMX-INPUT STATUS-LED DMX-INPUT-LED ETHERNET-LED...
  • Page 4: Led Display

    The DMX-IN-LED signals a DMX signal on the DMX input Configuration The configuration of the ArtNet-DMX-UNIVERSE 4.1 occurs about an web-interface which can be called about any web browser. The assigned IP-address 2.0.0.10 in the delivery status will be used for the web- interface as well as for the ArtNet.
  • Page 5 Please call the IP 2.0.0.10 in the address bar of the web browser for getting the following configuration page: The ArtNet-DMX-UNIVERSE 4.1 has 2 ArtNet Nodes which can be configured separate. Each Node needs an own IP-address, so the assignment in the network occurs clearly.
  • Page 6: Extension Setup

    ArtNet DMX-UNIVERSE 4.1 The Update-rate with whom the DMX-input data are outputted can be adjusted in different times. On change data transfers the DMX-input data only if it change, however max. every 0,1 seconds. With the option Use Unicast it is possible to send the DMX input to the ArtNet device with the Unicast IP in the network.
  • Page 7: Dmx-Outputs

    ArtNet DMX-UNIVERSE 4.1 DMX-outputs The DMX-outputs are galvanically isolated and will be controlled with the ArtNet- protocol. Each DMX-output is assigned with a port out of node 2: Node 2: Port 4 Port 3 Port 2 Port1 An assignment of the single ports to the DMX-universes have to occur in the used ®...
  • Page 8: Extension Mode

    ArtNet DMX-UNIVERSE 4.1 Extension Mode The ArtNet-DMX-UNIVERSE 4.1 interface has an Extension Mode. On each DMX- output can be spent 1024 DMX-channels. 2 ports (per 512 DMX-channels) will be spent on each DMX-output consecutively. Therefore all in all 4096 channels are possible.
  • Page 9 ArtNet DMX-UNIVERSE 4.1 The DMX Routing in the configuration specifies for each DMX-output how the data of the ports are linked together. The entered value specifies how many DMX-channels from the first port should be spent. After that the DMX-channels of the second port will be attached. Example: DMX-Routing = 512 Channel 1 Kanal 1...
  • Page 10: Factory Reset

    ArtNet DMX-UNIVERSE 4.1 Factory Reset The ArtNet-DMX-UNIVERSE 4.1 interface can be reset into the delivery status with switch 2. For this purpose please proceed as follows: Power off the device Switch 2 ON Power on the device STATUS LED lights up ca. 10 seconds While the LED is flashing please adjust switch 2 OFF The reset will be in progress and the LED flashes 3x as confirmation.
  • Page 11 ArtNet DMX-UNIVERSE 4.1 Equipment Neutrik NE 8 MC ® EtherCon plug for installation to RJ45-cables...
  • Page 12 ArtNet DMX-UNIVERSE 4.1 Risk-Notes You purchased a technical product. Conformable to the best available technology the following risks should not excluded: Failure risk: The device can drop out partially or completely at any time without warning. To reduce the probability of a failure a redundant system structure is necessary.
  • Page 13 D-44869 Bochum Germany © Copyright 2012 DMX4ALL GmbH All rights reserve. No part of this manual may be reproduced in any form (photocopy, pressure, microfilm or in another procedure) without written permission or processed, multiplied or spread using electronic systems.
