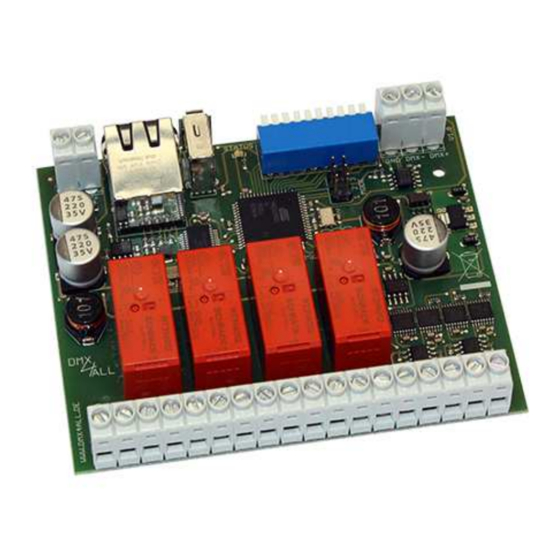

DMX4ALL ArtNet Relais/Analog Interface 4 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
ArtNet Relais/Analog Interface 4
User manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the ArtNet Relais/Analog Interface 4 and is the answer not in the manual?

Questions and answers

Related Manuals for DMX4ALL ArtNet Relais/Analog Interface 4

Summary of Contents for DMX4ALL ArtNet Relais/Analog Interface 4

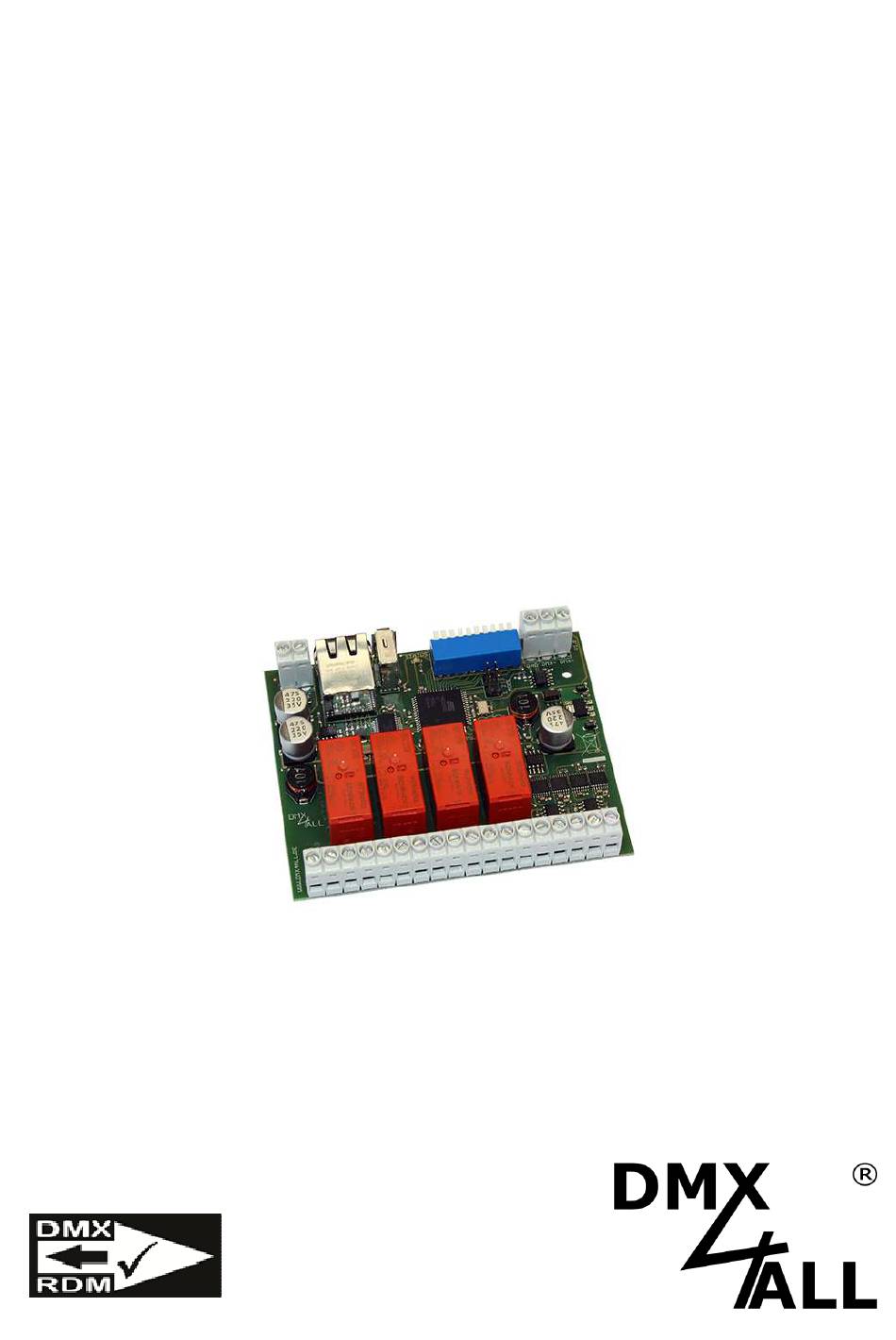

  • Page 1 ArtNet Relais/Analog Interface 4 User manual...
  • Page 2 ArtNet Relais/Analog Interface 4 For your own safety, please read this user manual and warnings carefully before installation. Description The ArtNet Relais/Analog Interface is designed for several controlling tasks. 4 switch contacts for direct and alternating voltage 4 potential-free switching outputs (normally open / NO) with up to 8A switching capacity for switching DC or AC voltage.
  • Page 3 This can be launched from the browser so that no access to the device is necessary! DMX4ALL-Command interface The ArtNet Relais/Analog Interface has another TCP communication interface. This interface uses the DMX4ALL-Commands via TCP packets. LED status display The LED status display shows the DMX reception.

  • Page 4: Data Sheet

    ArtNet Relais/Analog Interface 4 Data sheet Power supply: 12-24V DC Power consumption: 200mA@12V; 140mA@24V (without connected load at the analog output) Ethernet: RJ45 Protocol: DMX512 ArtNet (downwards compatible) DMX4ALL Commands DMX channels: 4 up to 12 channels Output: 4x switch contacts (closer / NO) Each max.
  • Page 5 ArtNet Relais/Analog Interface 4 Max. DC load The maximum current the switch contacts of the ArtNet Relais/Analog Interface can switch is shown in the following graph depending on the switching voltage: (Quelle: Data sheet RTS3T012)
  • Page 6 ArtNet Relais/Analog Interface 4 Connection Operation with DMX: DMX IN DMX OUT POWER 12-24V ADDRESS ArtNet Relais/Analog Interface POWER ANALOG OUT max. 10mA POWER Operation with ArtNet: Ethernet POWER 12-24V ADDRESS ArtNet Relais/Analog Interface POWER ANALOG OUT max. 10mA POWER...

  • Page 7: Dmx Addressing

    ArtNet Relais/Analog Interface 4 LED Display Codes The integrated LED is a Multi-functional-display. In the normal DMX-mode the LED flashes non-stop. In this case the device is working. If the LED is permanently dark, there is no DMX512-signal at the entry.
  • Page 8 ArtNet Relais/Analog Interface 4 Set the IP with IP-Configurator The IP-Configurator allows the setting of the IP-Address and net mask also, if the network settings of the PC are not in the IP-Range of the ArtNet Relais/Analog Interface. Install the program IP-Configurator Connect the ArtNet Relais/Analog Interface to network and turn on the device.

  • Page 9: Device Configuration

    ArtNet Relais/Analog Interface 4 Device Configuration Call, via the address task at the web browser, the IP of the ArtNet Relais/Analog Interface (Delivery state: 2.0.0.10) to get the following configuration site: Each ArtNet-Node needs an own IP-Address, so the assignment in the network is clear.
  • Page 10 ArtNet Relais/Analog Interface 4 For a better distinction any name can be used for the ArtNet-Node. The Short-name is limited to 18 signs and the Long-name is limited to 64 signs. Under the ArtNet-Settings you can carry out the settings for the Subnet, Net and Port/Universe.
  • Page 11 ArtNet Relais/Analog Interface 4 Switching relays with an analog value higher 0V This Mode uses no separated for the relays DMX-Channels. The relay switches as soon as the analog value is higher than 0V respectively the DMX-value for the analog output is higher than 0.
  • Page 12 ArtNet Relais/Analog Interface 4 Set resolution of analog outputs The analog output resolution will be adjusted via the MODE-Jumper 2. The analog outputs are operable with a resolution of 8 Bit (256 steps) or 10 Bit (1024 steps). 8 Bit (256 Steps)
  • Page 13 ArtNet Relais/Analog Interface 4 Set the output voltage 0-10V / 1-10V The analog outputs output voltage is adjustable via the MODE-Jumper 3: 0-10V 1-10V DMX-FAIL Function The ArtNet Relais/Analog Interface has a DMX-FAIL Function which stores the last value in the case of a DMX-signal (HOLD) loss or uses a value set with RDM before.
  • Page 14 For controlling the interface directly via TCP-connection please use the set web browser IP-address and use Port 10001. The sent and received data are RAW-data packages. Please take the potential DMX4All-Commands from the separated DMX4ALL- Command description. VCP-Control For controlling via a COM-Port a TCP-VCP-program must be installed, providing a virtual Com Port (VCP).
  • Page 15 ArtNet Relais/Analog Interface 4 Finally click Update all in the main menu to activate the VCP. Now the status Available is shown and the COM-Port is displayed in the device manager.
  • Page 16 ArtNet Relais/Analog Interface 4 RDM is the short form for Remote Device Management. As soon as the device is within the system, device-dependent settings can occur remotely via RDM command due to the uniquely assigned UID. A direct access to the device is not necessary.
  • Page 17 ArtNet Relais/Analog Interface 4 Manufacturer depending RDM control commands: SERIAL_NUMBER PID: 0xD400 Outputs a text description (ASCII-Text) of the device serial number. Send: PDL=0 Receive: PDL=21 (21 Byte ASCII-Text)

  • Page 18: Factory Reset

    ArtNet Relais/Analog Interface 4 Factory Reset It is possible to reset the ArtNet Relais/Analog Interface into the delivery status. Please proceed as follows: Turn off the device Place the MODE-Jumper J1 to J2 as shown Turn on the device The reset executes and the LEDs at the RJ45-connection...
  • Page 19 ArtNet Relais/Analog Interface 4 Execute Update The ArtNet Relais/Analog Interface has an Update-Function which allows to transfer prospective Firmware-Updates. Please proceed as follows: Turn off the device Place the MODE-Jumper J2 to J3 as shown Turn on the device The yellow LED lights up...
  • Page 20 ArtNet Relais/Analog Interface 4 Dimensions (all details in mm)
  • Page 21 ArtNet Relais/Analog Interface 4 Equipment Top-hat rail housing 1050 Power supply 12V...
  • Page 22 ArtNet Relais/Analog Interface 4 CE-Conformity This assembly (board) is controlled by a microprocessor and uses high frequency. In order to maintain the properties of the module with regard to CE conformity, installation into a closed metal housing in accordance with the EMC directive 2014/30/EU is necessary.
  • Page 23 ArtNet Relais/Analog Interface 4 Risk-Notes You purchased a technical product. Conformable to the best available technology the following risks should not excluded: Failure risk: The device can drop out partially or completely at any time without warning. To reduce the probability of a failure a redundant system structure is necessary.
  • Page 24 Germany Last changes: 24.06.2022 © Copyright DMX4ALL GmbH All rights reserve. No part of this manual may be reproduced in any form (photocopy, pressure, microfilm or in another procedure) without written permission or processed, multiplied or spread using electronic systems.
