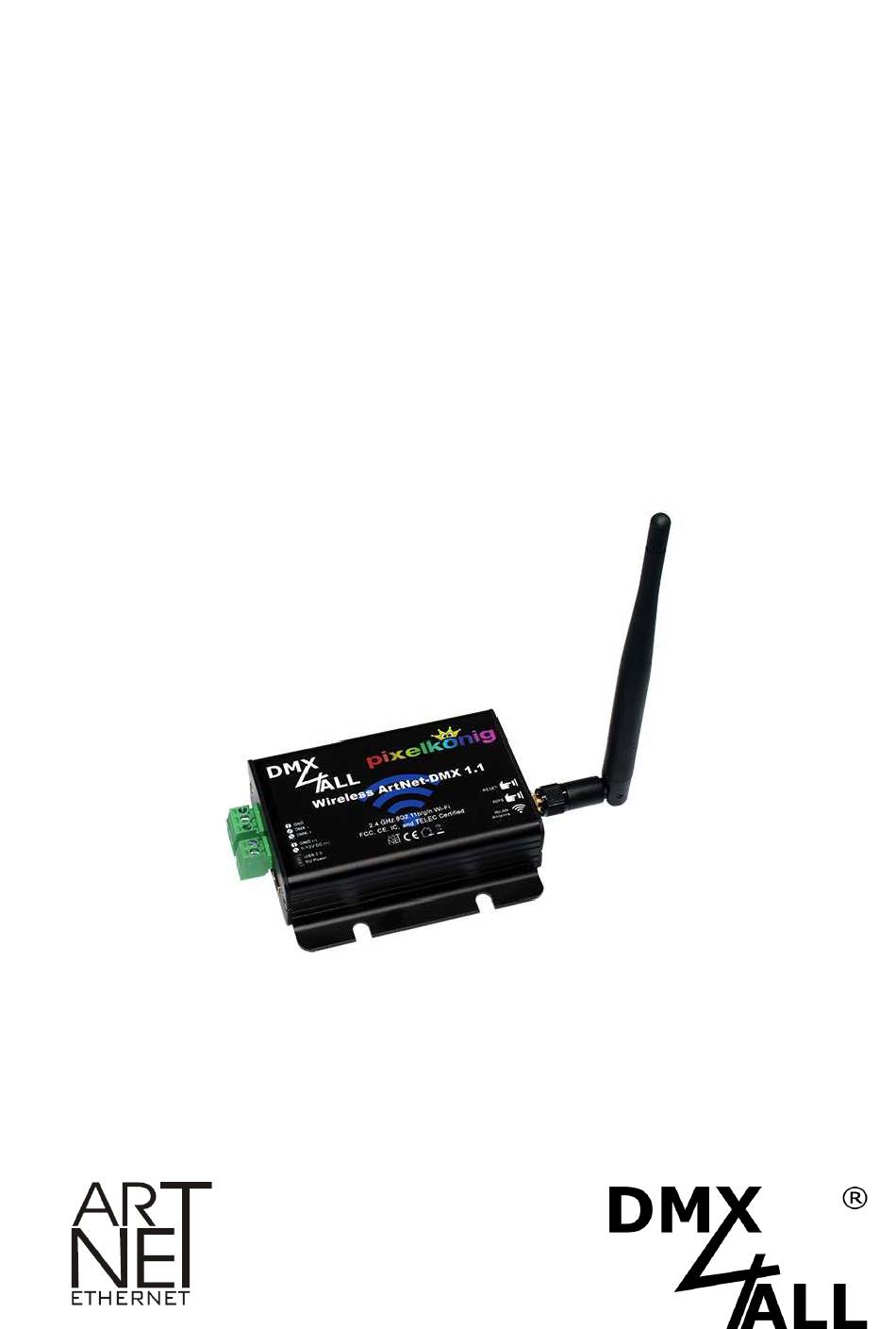

- Page 1 Wireless ArtNet-DMX 1.1 User manual Art-Net™ Designed by and Copyright Alderamin Group Ltd.
- Page 2 Wireless ArtNet-DMX 1.1 Description The Wireless ArtNet-DMX 1.1 is a compact Art-Net (DMX via Ethernet) interface ® which includes a modern ARM microcontroller. Additional the Wireless ArtNet-DMX 1.1 has a certified 2.4GHz 802.11 b/g/n Wi-Fi (FCC, CE, IC, and TELEC) for a direct connection to a Wi-Fi network.
-
Page 3: Data Sheet
Wireless ArtNet-DMX 1.1 Data sheet Power supply: 5V/1A DC via included power supply or 5-12V/1A via screw terminals ® ® Ethernet: 2.4GHz IEEE 802.11 b/g/n Wi-Fi DMX: 3 pin screw connection DMX-line abjustable: - 512 Channels OUT - 512 Channels IN Protocol: Art-Net™... - Page 4 Wireless ArtNet-DMX 1.1 Connection USB (POWER 5V/1A) DMX-LED WPS-Button RESET-Button Feeler-Connection RESET-LED WPS/WiFi-LED...
-
Page 5: Led Display
Wireless ArtNet-DMX 1.1 LED-Display DMX-LED DMX-OUTPUT Mode: Flashes DMX-Signal is not outputted Shines DMX-Signal is outputted DMX- INPUT Mode: Flashes DMX-Signal is not received Shines DMX-Signal is received WPS/WiFi-LED Flashes Device has no WiFi-Connection Shines Wifi-Connection produced Flashes Waiting for WPS-Answer... - Page 6 Quick Start with WPS Please proceed as follows to operate the Wirless ArtNet-DMX 1.1 with the WPS- Function: Connect the Wireless ArtNet-DMX 1.1 with the attached power supply. Start the WPS-Function at your Router/Access-Point. Push the WPS-Button at the Wireless ArtNet-DMX 1.1 .
-
Page 7: Device Configuration
Install the USB-driver if it does not exist so far Start the program DMX-Configurator This is available as download by www.dmx4all.de Please built a connection with the Wireless ArtNet-DMX 1.1 within the DMX- Configurator Please call up under menu Settings Hardware Settings... - Page 8 The Wireless ArtNet-DMX 1.1 can be configured as WiFi-Client or P2P-Master. Client If the Wireless ArtNet-DMX 1.1 is configured as Client, so the device registers itself to an Access-Point. Therefore the network-name must be created under Network name (SSID). The Security-Mode must be chosen and if necessary the password (Pass phrase) must be entered.
-
Page 9: Device Settings
Wireless ArtNet-DMX 1.1 Device-Settings Each device needs within the network an own IP-address, so the assignment occurs clearly in the network. This can be received via DHCP or can be assigned fixed. Is DHCP active, so the IP is received automatically. -
Page 10: Dmx-Settings
Wireless ArtNet-DMX 1.1 DMX-Settings The Wireless ArtNet-DMX 1.1 can be configured as DMX-Output (Art-Net to DMX) or DMX-Input (DMX to Art-Net). DMX-Output (Art-Net to DMX) To use the Wireless ArtNet-DMX 1.1 as DMX-Output-Interface, the Interface-Mode DMX-Output must be chosen. The parameters Net, SubNet and Port/Universe specify which DMX-data should be used. - Page 11 Wireless ArtNet-DMX 1.1 DMX-Input (DMX to Art-Net) To use the Wireless ArtNet-DMX 1.1 as DMX-Input-Interface, the Interface-Mode DMX- Input must be chosen. The Update-Rate can be adjusted with which the DMX-Input data should be outputted via Art-Net. 40Hz … 5Hz...
- Page 12 Install the program IP-Configurator Connect the Wireless ArtNet-DMX with the net work Start the program IP-Configurator A Wireless ArtNet-DMX 1.1 is shown in the list Choose the entry (by clicking) Please enter a new IP and net mask Click to SET...
- Page 13 Alternatively you can open the web browser and open the site dmx4allconfig.com An entry field appears in which you can enter the WiFi/WLAN access data: Click to connect. The Wireless ArtNet-DMX 1.1 closes now the connection to the Smartphone and creates a connection to the WiFi/WLAN-network.
-
Page 14: Factory Reset
The Wireless ArtNet-DMX 1.1 can be set back into the delivery status. Please proceed as follows: Press RESET ca. 5 seconds until the RESET-LED shines Release the RESET and the Wireless ArtNet-DMX 1.1 will be set back into the delivery status. Execute the Firmware Update The Wireless ArtNet-DMX 1.1 has an Update-Function, which allows transferring... - Page 15 Wireless ArtNet-DMX 1.1 Risk-Notes You purchased a technical product. Conformable to the best available technology the following risks should not excluded: Failure risk: The device can drop out partially or completely at any time without warning. To reduce the probability of a failure a redundant system structure is necessary.
- Page 16 Germany Last changes: 20.08.2021 © Copyright DMX4ALL GmbH All rights reserve. No part of this manual may be reproduced in any form (photocopy, pressure, microfilm or in another procedure) without written permission or processed, multiplied or spread using electronic systems.
