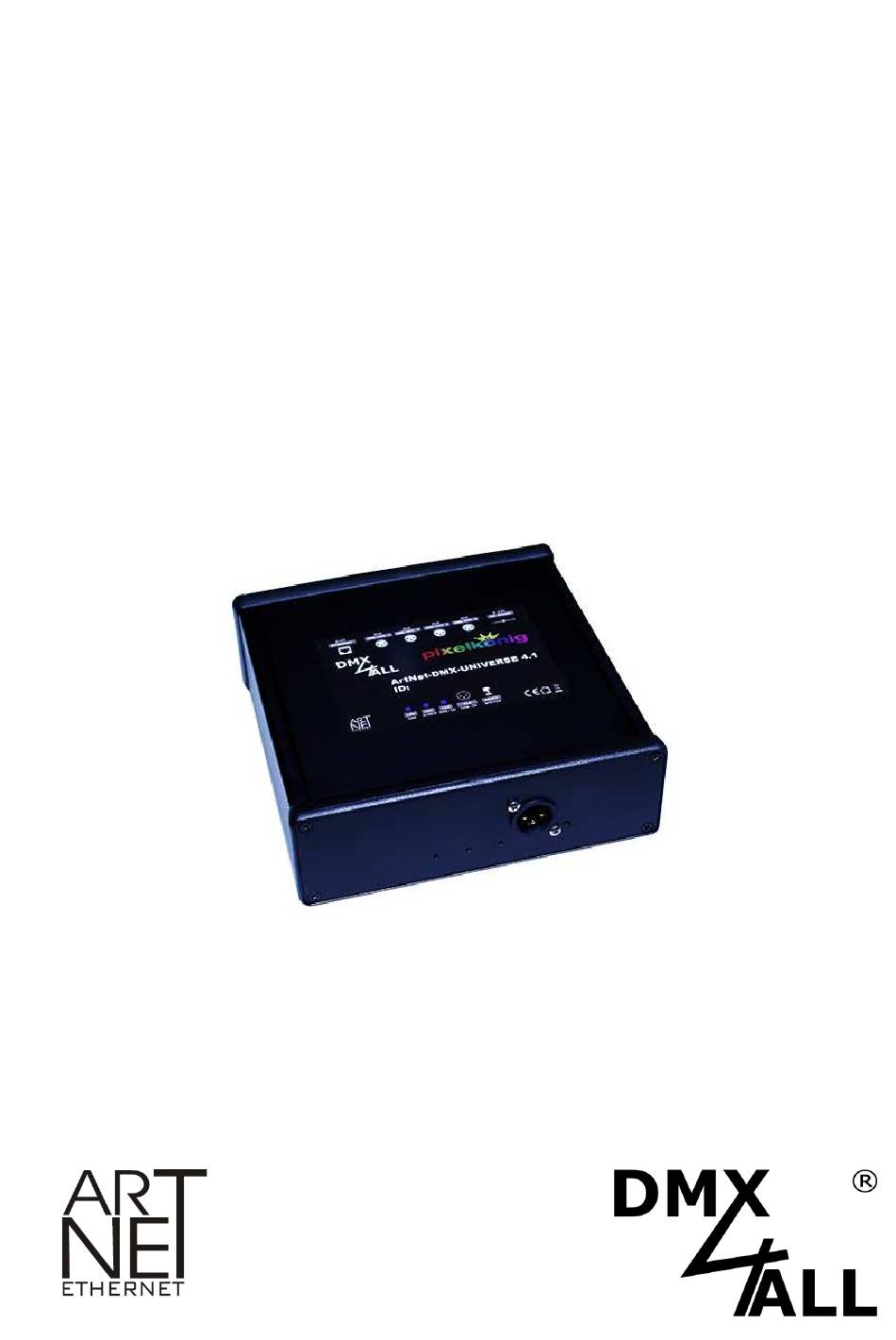

- Page 1 ArtNet DMX-UNIVERSE 4.1 User manual Art-Net™ Designed by and Copyright Artistic Licence Holdings Ltd.
- Page 2 ArtNet DMX-UNIVERSE 4.1 Description With a standard RJ45-Net work connection cable occurs the connection to ArtNet- Network. Adjustable DMX-Frame rate Within the DMX-OUTPUT-Mode the DMX-Framerate is adjustable, so this Interface is compatible with “slower“ DMX-Devices. ArtNet Merge-Function Two ArtNet-Sources are outputted together at the DMX-Output via LTP (Latest) or HTP (Highest).
-
Page 3: Data Sheet
ArtNet DMX-UNIVERSE 4.1 Data sheet Power supply: 7-24V DC via delivered plug power supply Connection: RJ45 Ethernet DMX-Input: 512 DMX-Channels ® Neutrik XLR3 DMX-Output: 4x 512 Channels or 4x 1024 Channels within Extension Mode ® Neutrik XLR3 All in- and outputs are galvanically isolated Dimension: 170 x 170 x 58mm Protocol:... - Page 4 ArtNet DMX-UNIVERSE 4.1 Connection ETHERNET DMX-OUT 4 DMX-OUT 2 POWER 8-24V= DMX-OUT 1 DMX-OUT 3 RESET DMX-INPUT LAN-LED DMX-INPUT-LED POWER-LED...
-
Page 5: Led Display
ArtNet DMX-UNIVERSE 4.1 LED-Display STATUS-LED The STATUS-LED shines, as soon as the device is working. ETHERNET-LED The ETHERNET-LED signals an existing connection via RJ45-Connection. DMX-IN-LED The DMX-IN-LED signals a DMX-Signal at the DMX-Entry. Configuration The ArtNet DMX-UNIVERSE 4.1 configuration can occur via a web interface which can be called via any web browser. - Page 6 ArtNet DMX-UNIVERSE 4.1 Set the IP with web browser The assigned IP-Address within the delivery status is 2.0.0.10 which will be used for the web-interface. Please set the net work card of your computer to this IP range to call the IP-Address 2.0.0.10 via the web browser.
-
Page 7: Device Configuration
ArtNet DMX-UNIVERSE 4.1 Device Configuration Call the IP of the ArtNet-DMX-UNIVERSE 4.1 in the web browser and within the address bar (delivery status: 2.0.0.10) to get the following configuration page: Each node needs an own IP-Address so the assignment can occur clearly within the network. -
Page 8: Dmx-Outputs
ArtNet DMX-UNIVERSE 4.1 DMX-Outputs The DMX-Outputs are galvanically isolated and are controlled via the ArtNet- Protocol. Each DMX-Output is assigned with an own Port from Node 2: Node 2: Port 4 Port 3 Port 2 Port1 By clicking DMX-Output you get the following configuration site: Each node needs an own IP-Address so the assignment can occur clearly within the network. - Page 9 ArtNet DMX-UNIVERSE 4.1 The ArtNet-Parameter SubNet, Net and Port must be set according to the ArtNet- Specifications and specify the aim of the DMX-Data. Via Sync the DMX-Output of several Devices can be synchronized by usage the ® software Software MADRIX Framerate specifies the maximum DMX-Frame rate.
-
Page 10: Extension Mode
ArtNet DMX-UNIVERSE 4.1 Extension Mode The ArtNet-DMX-UNIVERSE 4.1 has an Extension Mode. In this Mode at each DMX-Output 1024 DMX-Channels can be outputted. At each DMX-Output 2 Ports (each 512 DMX-Channels) are outputted. So, 4096 Channels are available. To activate the Extension Mode switch switch 1 on ON. Within the Extension Mode another ArtNet Node is activated, which also has 4 Ports. - Page 11 ArtNet DMX-UNIVERSE 4.1 The DMX Routing specifies for each DMX-Output how the ports are connected together. The entered value specifies how many DMX-Channels are outputted from the first Port. After this the DMX-Channels from the second port are outputted. Example: DMX-Routing = 512 Channel Channel 512 Channel 513...
- Page 12 ArtNet DMX-UNIVERSE 4.1 DMX-Input The DMX-Input is galvanically isolated and assigned to Port 1 Node 1. Node 1: Port 1 By clicking DMX-Input you get the following configuration site: Each Node needs an own IP-Address , so the assignment within the network is clear.
- Page 13 ArtNet DMX-UNIVERSE 4.1 The ArtNet-Parameters SubNet, Net and Port must be set in the sense of the ArtNet-Specifications and specify the aim for the DMX-Data. Use Broadcast : The DMX-Data are send to all devices within the ArtNet. Use Unicast : The DMX-Data will are send to a specified device with the within the ArtNet Unicast IP Several actions are available for the DMX-Input in the case of a breakdown of the...
-
Page 14: Factory Reset
ArtNet DMX-UNIVERSE 4.1 Factory Reset The ArtNet-DMX-UNIVERSE 4.1 can be reset into the delivery status with the Reset- Button. Please proceed as follows: Turn off the device Push button and hold Turn on the device LAN-LED flashes Release button Push button again and hold POWER-LED flashes ca. - Page 15 Push button and hold Turn on the device LAN-LED flashes Release button Generate network connection to PC Start Update-Software DMX4ALL LAN-Updater Select ArtNet-DMX-UNIVERSE 4.1 from list Click Firmware-Update Select and confirm Firmware-File (.bin) Please wait until the update has finished If an error occurs you can begin from the start anytime.
- Page 16 ArtNet DMX-UNIVERSE 4.1 Accessory XLR-Cable 3pin Several Lengths: 1m, 5m, 10m, 15m Network cable...
- Page 17 ArtNet DMX-UNIVERSE 4.1 CE-Conformity This assembly is controlled by a microprocessor and uses high frequency. In order to maintain the properties of the module with regard to CE conformity, installation into a closed metal housing in accordance with the EMC directive 2014/30/EU is necessary. Risk-Notes You purchased a technical product.
- Page 18 Germany Last changes: 22.03.2019 © Copyright DMX4ALL GmbH All rights reserve. No part of this manual may be reproduced in any form (photocopy, pressure, microfilm or in another procedure) without written permission or processed, multiplied or spread using electronic systems.
