- Page 1 NanoDMX USB Interface User Manual...
-
Page 2: Data Sheet

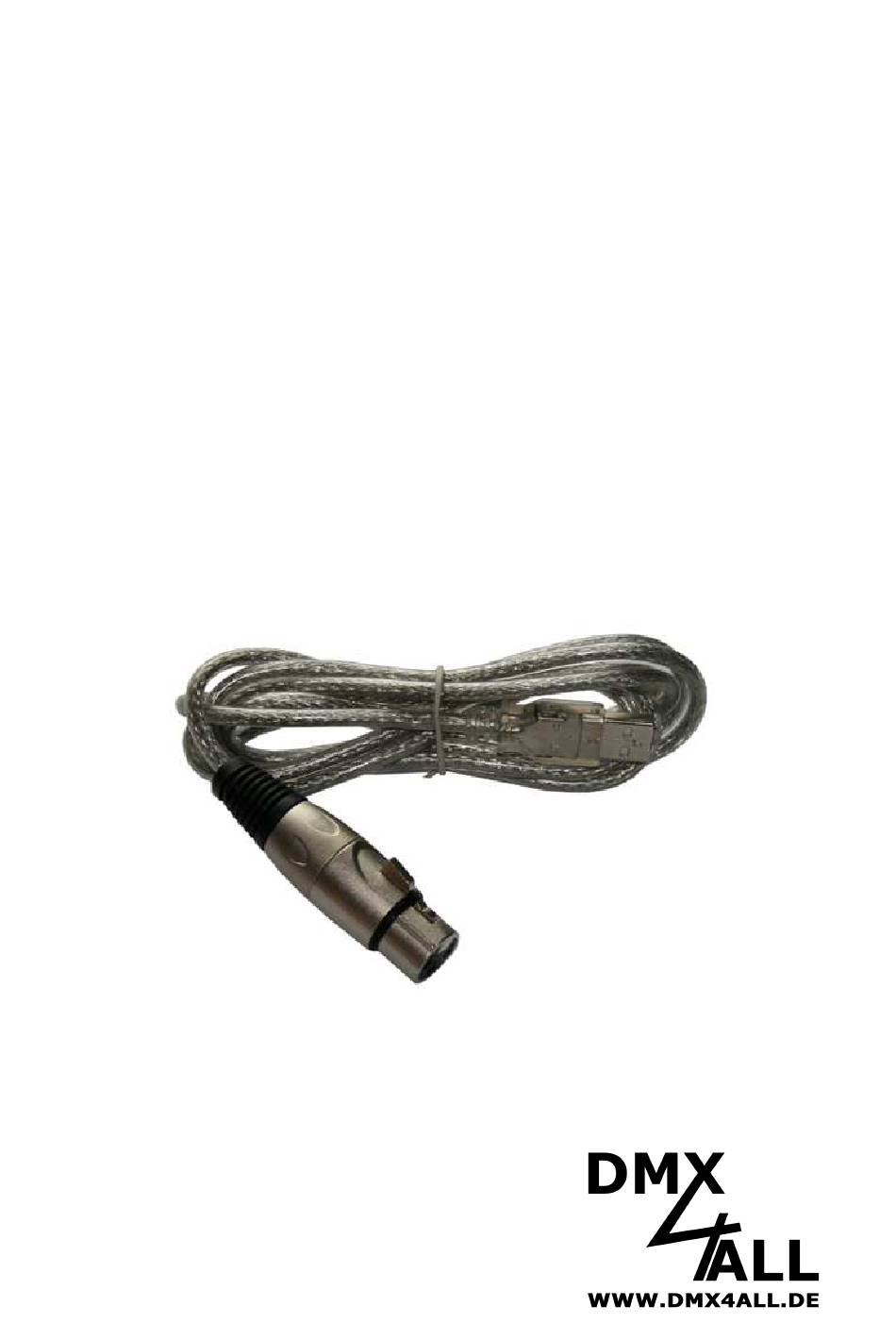

NanoDMX USB Interface Description The NanoDMX USB Interface is an “adapter cable” which enables a simple control with the PC of DMX-capable devices. Due to the USB-Port no external power supply is necessary. Each interface is provided with a micro-controller storing the value of all 512 channels and generating the DMX-signal without burding the PC. -
Page 3: Installation
CDC-Driver. It is a RS232-Emulation via USB from Windows2000. When connecting the NanoDMX USB interface, a virtual com port is set up on the PC, which can be accessed by any Windows program as well as a real RS232 interface. -
Page 4: Windows Driver Installation
NanoDMX USB Interface Windows-Driver Installation Please follow the single installation steps for installation: 1. Connect the interface to a USB-Port and wait until Windows completed the driver search. 2. Open the device manager and click with the right mouse button at the interface. - Page 5 NanoDMX USB Interface 5. Alle Geräte anzeigen and click Next 6. Select Medium 7. Thus select inf-file from CD 8. Click OK...
- Page 6 NanoDMX USB Interface 9. Click Next 10. Confirm the warnings with Yes and Die Treibersoftware trotzdem installieren 11. Complete the installation with Finish...
- Page 7 NanoDMX USB Interface Information for the usage with the program FreeStyler Please select as device in the Interface Setup DMX4ALL 3rd generation and select the according COM-Port:...
- Page 8 NanoDMX USB Interface Settings Use the program DMX-Configurator to configure the interface. You find under the menu Settings → Hardware settings the possibility for adjusting as follows: Min Output channels adjusts the number of generated DMX-Channels. By right clicking the mouse the selection menu with the number of channels opens.
- Page 9 NanoDMX USB Interface CE-Conformity This device is controlled by a microprocessor and uses high frequency. In order to maintain the properties of the module with regard to CE conformity, installation into a closed metal housing in accordance with the EMC directive 2014/30/EU is necessary.
- Page 10 Germany Last changes: 04.03.2019 © Copyright DMX4ALL GmbH All rights reserve. No part of this manual may be reproduced in any form (photocopy, pressure, microfilm or in another procedure) without written permission or processed, multiplied or spread using electronic systems.
