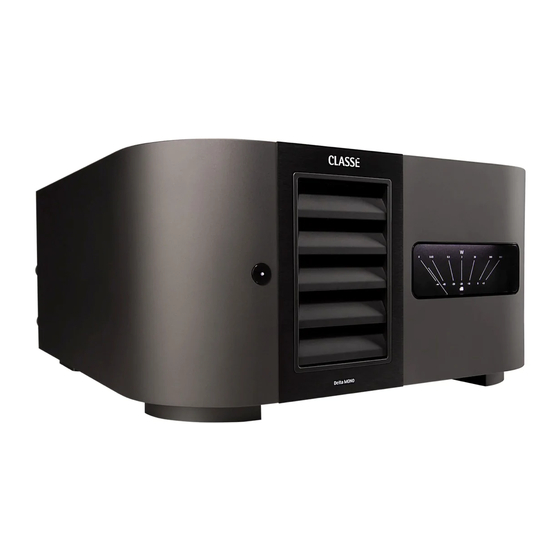

- Page 1 Owner’s Manual Delta MONO Monaural Amplifier...
-
Page 2: Table Of Contents
Contents Welcome to the Classé family ................3 Unpacking and Placement ................4 Special Design Features ...................6 Front Panel .......................7 Rear Panel ......................9 Installation .....................15 CAN-Bus ......................17 Care and Maintenance ...................20 Troubleshooting .....................21 Specifications ....................23 Dimensions ....................25... -
Page 3: Welcome To The Classé Family
Classé amplifier and record your serial number for future reference a word about installation Every effort has been made to make the Classé Delta MONO simple and straightforward to install and use. It may be placed on a shelf, in a cabinet or on the floor near the speaker(s). As with all amplifiers, the Delta MONO generates some heat and care should be taken to allow adequate ventilation. -
Page 4: Unpacking And Placement
Unpacking and Placement unpacking your amplifier Carefully unpack your power amplifier according to the supplied instructions, and remove all accessories from the carton. Please take care when lifting the amplifier, as it is extremely heavy with weight somewhat concentrated near the front right corner. - Page 5 Please note and record this number on the page entitled Important Safety Instructions for your future reference. operating voltage The operating voltage of your Delta MONO is indicated on the rear of the unit. Do NOT connect the amplifier to AC mains power of different line voltage.
-
Page 6: Special Design Features
Special Design Features highly refined This Classé amplifier utilizes our latest technology, implemented with the circuit design highest quality parts. A combination of careful part selection and circuit layout combined with an extended class A operating area enables superior performance under all conditions. -
Page 7: Front Panel
Front Panel Standby/ON Button & Status Indicator LED The front panel Standby button will toggle the amplifier between operate, its fully operational state, and a standby mode. (See also Wake on Network). The current state of the amplifier is indicated by the LED status indicator in the Standby button. - Page 8 Caution! If you see the Standby LED indicator blinking red, please check that all external connections are cleanly made and secure. If no fault is immediately obvious, try to reset the amplifier by pressing and holding the standby button. If the unit does not reset or continues to enter protection mode, please call your authorized Classé...
-
Page 9: Rear Panel
Signal-to-Noise ratio by 6 dB; they also do an excellent job of rejecting noise and interference that might otherwise be picked up between the components. If executed as in the Delta MONO with a high degree of symmetry between the inverting and non-inverting signal paths, balanced connections can offer the best performance. - Page 10 1 and 3 of the XLR connector. Speaker Outputs The Delta MONO is designed to accommodate the impedance range of all commercially available loudspeakers. Your dealer is in a good position to advise which and/or how many amplifiers are suitable for your particular loudspeakers.
- Page 11 Classé CAN-Bus Control Ports These RJ-45 connectors are reserved for control and communication applications using a Classé implementation of the Controller Area Network (CAN) Bus specification. Refer to the CAN-Bus section located later in this manual for more information. IR Input and Output Your Classé...
- Page 12 Auto Standby / Wake on Network The Delta MONO employs power saving features to ensure that it consumes a minimal amount of power while not in use. Auto Standby will switch the amplifier off if no audio signal is present for approximately 20 minutes (and if a DC trigger isn’t overriding it).
- Page 13 RJ-45 Pin-1 = DSR Pin-1 = N/C Pin-2 = DTR Pin-2 = RXD Pin-3 = CTS Pin-3 = TXD Pin-4 = GND Pin-4 = DTR Pin-5 = RXD Pin-5 = GND Pin-6 = TXD Pin-6 = DSR Pin-7 = N/C Pin-7 = N/C Pin-8 = Power Input Pin-8 = CTS...
- Page 14 11 AC Mains Input (AC IN) An IEC standard power cord (supplied) is used with the Delta MONO. Plug the cord into the IEC receptacle on the rear panel, and the other end into a suitable wall outlet. 12 AC Mains Fuse Your Classé...
-
Page 15: Installation
Installation Your new Classé amplifier is quite simple to set up and enjoy. Please follow the steps outlined below in order to safely set up and use your new amplifier. Important: It is always a good idea to power up your power amplifier(s) last, after everything else has been powered up and has stabilized. - Page 16 The Delta MONO utilizes premium quality binding posts that provide an optimum torque feature which ensures the correct pressure or tightness of the connection while preventing damage that can result from over- tightening. Secure the speaker cables by tightening the binding posts until you hear the clicks indicating you’ve reached the proper torque for the...
-
Page 17: Can-Bus
Note that some components will require a software update to recognize the Delta MONO on the CAN-Bus. Check the Classé website periodically for updates. features CAN-Bus will allow a Classé touchscreen to: •... - Page 18 Standby, otherwise the previously selected unit will continue to flash its front panel LED when powering up the next time. CAN-Bus amp features The following CAN-Bus features are available on the Delta MONO. The model, name and firmware version number will be displayed on the CAN-Bus page of the targeted unit.
- Page 19 Classé customer support. The Delta MONO Event Log can report the following events interpreted as follows: • DC Output — DC from the source has exceeded the amplifier’s ability to correct for it.
-
Page 20: Care And Maintenance
Care and Maintenance To remove dust from the cabinet of your amplifier, use a feather duster or a lint-free soft cloth. To remove dirt and fingerprints, we recommend using a microfibre cloth and static free lens cleaner such as you would use for cleaning a flat panel display. -
Page 21: Troubleshooting
Troubleshooting In general, you should refer any service problems to your Classé dealer. Before contacting your dealer, however, check to see if the problem is listed here. No sound, and Standby LED is not lit. • The amplifier is not plugged into the AC mains, or the AC mains are down (circuit breaker, fuse). - Page 22 The AC mains fuse is blown. There is a specific troubleshooting procedure for a blown AC mains fuse, since this rare occurrence sometimes indicates a significant problem. Please use the following steps, in order: a. Disconnect your amplifier from the AC mains, as well as from its input connections and speaker connections, and remove the fuse cover on the rear of the unit.
-
Page 23: Specifications
Specifications n Frequency Response 1Hz – 650kHz, -3dB (50Ω Source Impedance) n Continuous Output power ( Pure Class-A Operation) 35W / 8Ω 300W / 8Ω (at 1kHz, 0.1% THD+N) 600W / 4Ω ( With AC Line held constant) 1000W / 2Ω n Harmonic Distortion <0.0016% at 1kHz (500 kHz Bandwidth) - Page 24 n Operating Temperature -35 ° C) 50-95 ° F (10 n Overall Dimensions 444mm Width (17.50”) 492mm Depth (incl. connectors) (19.37”) 222mm Height (incl. feet) (8.74”) n Net Weight (97.7lbs) 44.3kg n Shipping Weight (111.6lbs) 50.6kg All Tests performed unweighted using balanced inputs and 500kHz measurement bandwidth (except when specified otherwise).
-
Page 25: Dimensions
