3.5

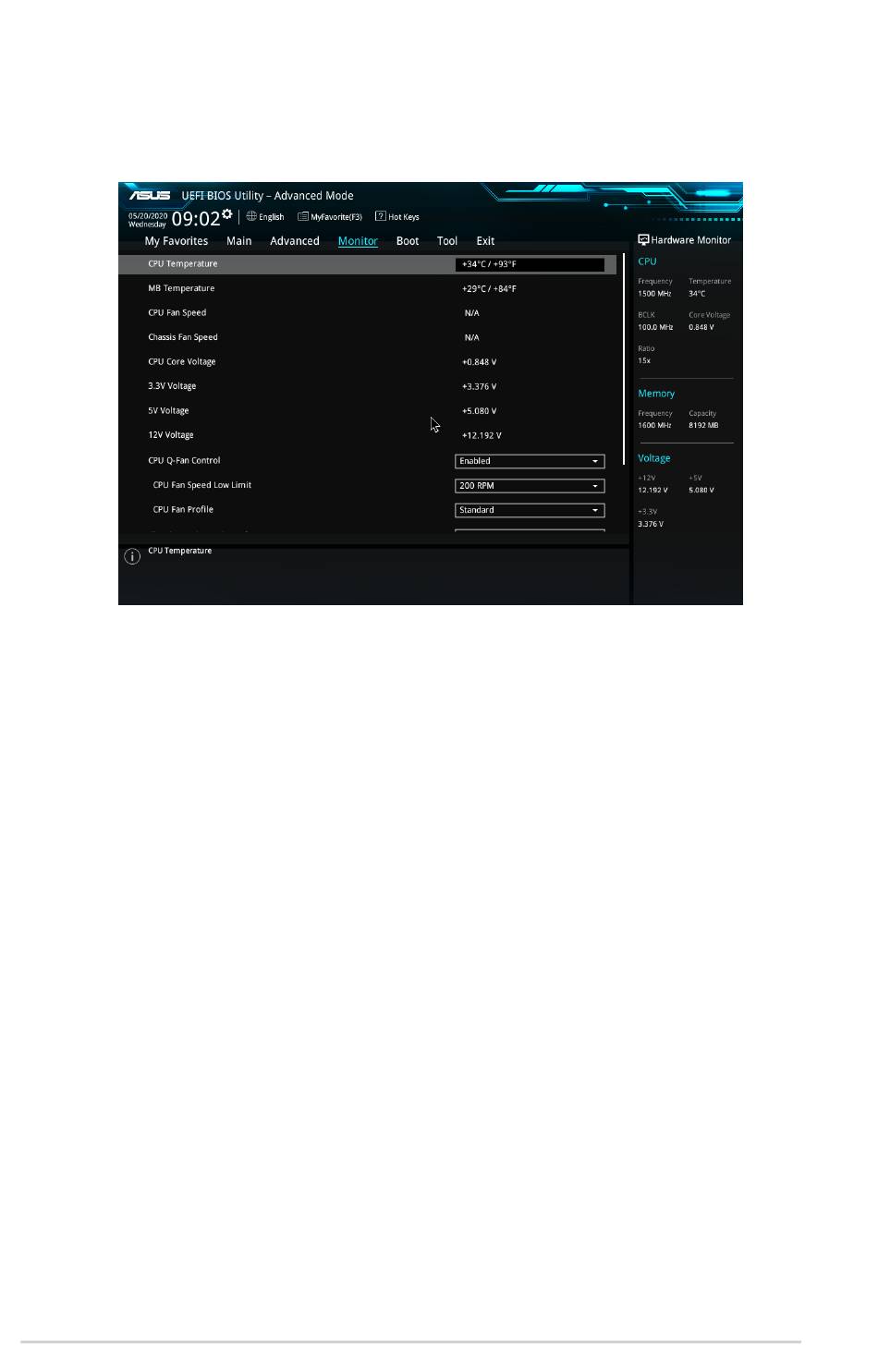

Monitor menu
The Monitor menu displays the system temperature/power status, and allows you to change
the fan settings.
3.5.1
CPU/MB/ Temperature [xxxºC/xxxºF]
The onboard hardware monitor automatically detects and displays the CPU temperature.
Select Ignore if you do not wish to display the detected temperature.
3.5.2
CPU / Chassis Fan Speed [xxxx RPM] or [Ignore] /
[N/A]
The onboard hardware monitor automatically detects and displays the CPU / chassis fan
speeds in rotations per minute (RPM). If the fan is not connected to the motherboard, the field
shows N/A. Select Ignore if you do not wish to display the detected speed.
3.5.3
CPU Core Voltage, 3.3V Voltage, 5V Voltage, 12V
Voltage
The onboard hardware monitor automatically detects the voltage output through the onboard
voltage regulators. Select Ignore if you do not want to detect this item.
3.5.4
CPU Q-Fan Control [Enabled]
[Disabled]
[Enabled]
CPU Fan Speed Low Limit [200 RPM]
This item appears only when you enable the CPU Q-Fan Control feature and allows you
to disable or set the CPU fan warning speed. Configuration options: [Ignore] [100RPM]
[200RPM] [300 RPM] [400 RPM] [500 RPM]
3-14
Disables the CPU Q-Fan control feature.
Enables the CPU Q-Fan control feature.
