This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no
liability whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at
Before installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.
Before you start using this product please follow these basic guidelines:
1.
Please carefully read the manual before through before beginning with the installation process!
2.
Please remove your motherboard from the computer to assure safest mounting process in order to prevent any possible damages to your CPU and/or motherboard's circuit board (PCB).
3.
The EK-HFB and EK-ACF type fittings require only a small amount of force to screw them firmly in place since the liquid seal is ensured by the rubber o-ring gaskets.
4.
The use of quality, market proved corrosion inhibiting coolants is always strongly recommended for any liquid cooling system.

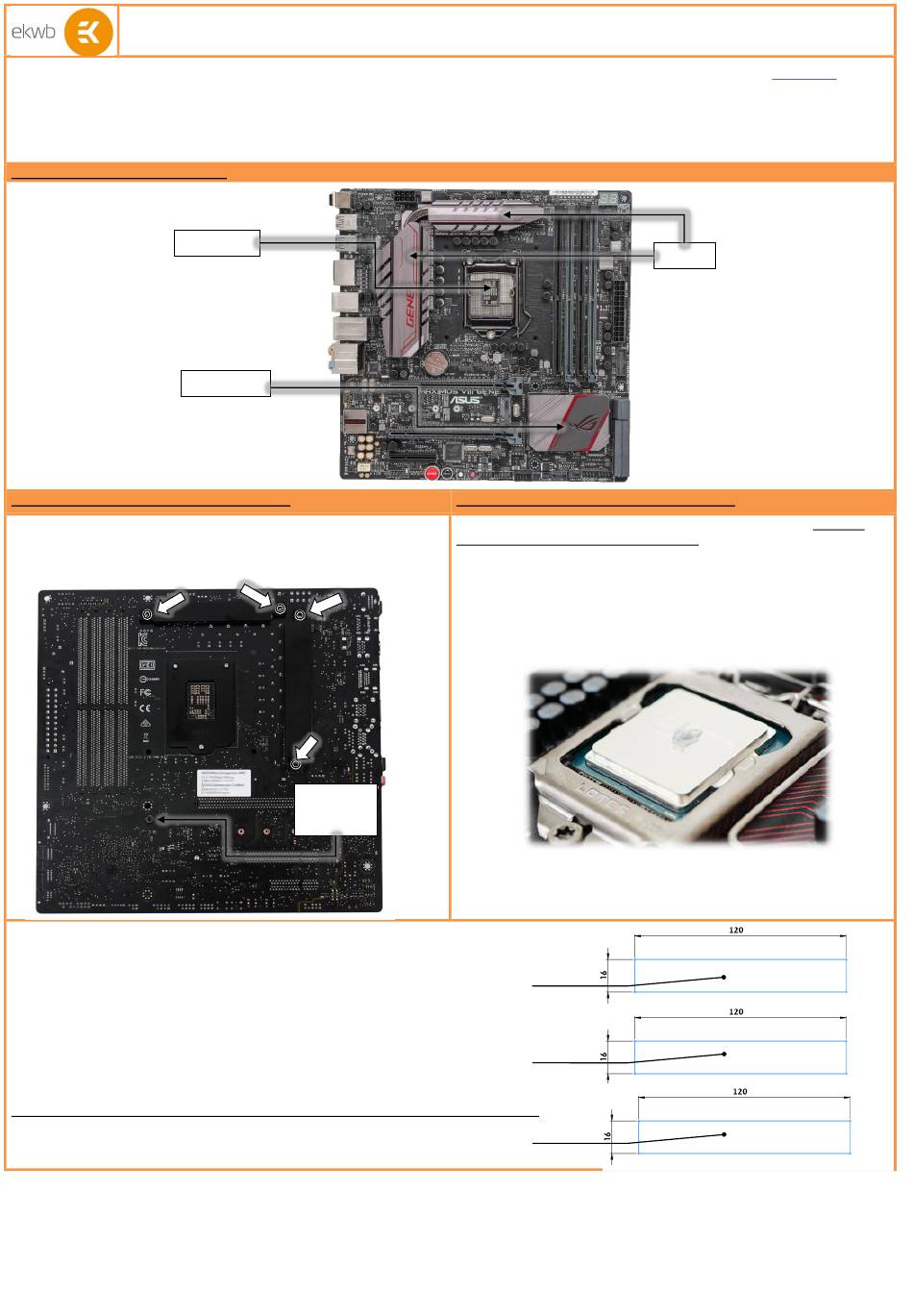

STEP 1: GENERAL INFORMATION Sample photo of ASUS Maximus VIII Gene motherboard
STEP 1: PREPARING YOUR MOTHERBOARD
REMOVING STOCK COOLER.
Remove all encircled screws. There are 4 screws on
the back of the motherboard that need to be removed in order to remove the
factory installed MOSFET heat pipe cooling solution. Please store away the two
factory backplates as they will be reused.
2.. CUTTING THERMAL PADS.
the voltage regulation area (MOSFET) on the motherboard's circuit board. WARNING: DIMENSIONS ON
PICTURES BELOW ARE SCALED.
Replacement thermal pads @ EKWB web shop:
Thermal PAD F 1mm - (120x16mm) [EAN: 3830046996732]
Thermal PAD F 0,5mm - (120x16mm) [EAN: 3830046996725]
Thermal PAD F 1,5mm - (120x16mm) [EAN: 3830046996749]
This waterblock is compatible with three motherboard models:
1. ASUS Maximus VIII Hero
2. ASUS Maximus VIII Ranger
3. ASUS Maximus VIII Gene
These motherboards have different inductor coils therefore you must be careful to install the correct thermal pad.
At motherboards 2. And 3. You MUST use thermal pad F – 0,5mm.
At motherboard 1. You must use thermal pad F – 1,5mm.
All disclosures, notices and warranty conditions are being written on EKWB web page. Please check terms of use.

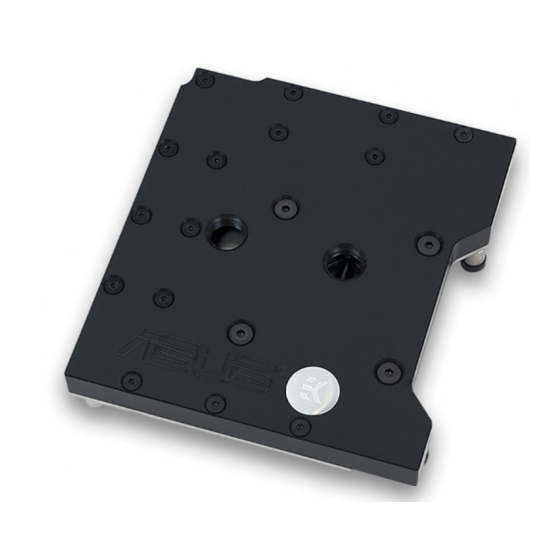

Installation manual for EK-FB ASUS M8G Monoblock water block
CPU socket
M8G PCH
(SB)
Do not remove
the PCH (SB)
Cooler!
Your block comes with thermal pads which needs to be trimmed in order to fit
STEP 2: PREPARING YOUR MOTHERBOARD
1. APPLYING THERMAL COMPOUND
spreader (IHS) - see sample photo on right
thermal grease.
The quantity of about two rice grains is just about right. There is no need to cover
the whole IHS. Applying too much thermal grease will have negative impact on the
cooling performance!
1. Thermal pad F– 1.0mm
(for mosfets):
2.1.Thermal pad F– 0,5mm
(for inductor coils):
2.2.Thermal pad F– 1,5mm
(for inductor coils):
Revision 1.0. Published on October 6
www.ekwb.com
Mosfets
CPU heat
. Apply thermal compound on
with enclosed EK-TIM Ectotherm
th
2015
for updates.
