Installation and mounting manual for EK-XRES Glass Revo D5
This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability
whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at
installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.
Before you start using this product please follow these basic guidelines:
1.
Please carefully read the manual before through before beginning with the installation process!
2.
The EK-HFB and EK-ACF type fittings require only a small amount of force to screw them firmly in place since the liquid seal is ensured by the rubber o-ring gaskets.
3.
The use of corrosion inhibiting coolants is always recommended for any liquid cooling system.

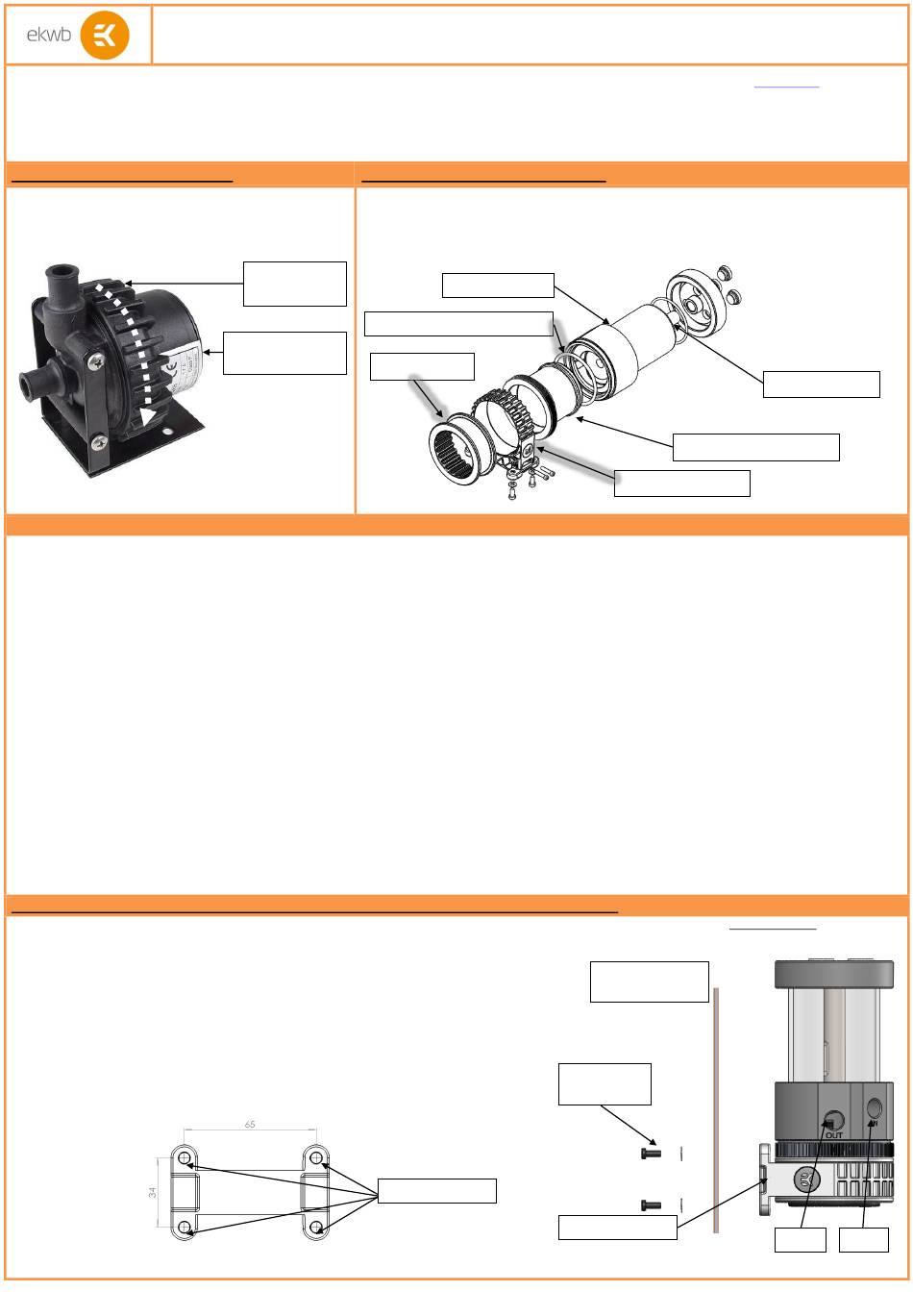

STEP 1: PREPARING THE PUMP
Unscrew the ribbed threaded ring that attaches the Laing pump's
original factory top and the main pump core housing with motor.
Store the original top, the original o-ring gasket and the attaching
ring in a safe place.
Twist LEFT to unscrew!
STEP 3: MOUNT THE EK-XRES 100 Revo D5 RESERVOIR INTO THE COMPUTER CHASSIS
By default the EK-XRES Revo D5 ships with EK-Revo D5 Holder. This holder is meant to be installed directly on the computer chassis. User may need to drill 4 (four) Φ5 mm
(enclosed sticker with designated holes) holes through chassis metal using electric power drill if there are no appropriate mounting holes available. EK recommends users to
find an appropriate position in your computer chassis to install the EK-XRES Revo D5 pump assembly.
To sucessfully install the EK-XRES Revo D5 pump/reservoir assembly please complete the following steps:
1. Find an appropriate position for the unit inside (or perhaps outside) of your computer
chassis; drill mounting holes if needed. Before drilling stick enclosed sticker to the
Computer chassis.
2. Attach the EK-Revo D5 Holder to the computer chassis metal frame using enclosed 4
(four) M4x10 DIN7984 screws and PVC washers. Secure the screws using enclosed Allen
key 2.5mm..
3. Insert the rubber dumper into the EK-Revo D5 Holder. Insert the pump into the dumper.
And secure side two M3 DIN7984 screws with enclosed 2mm Allen key. Your installation
is now complete.
STEP 2: INSTALLING THE XRES D5
(already done by EK)
1. Install the EK-XRES Glass Revo D5 (incl. pump) on to the pump main motor housing. Make sure
you install EK provided 61x3mm o-ring gasket! Reseat the gasket if needed.
You can rotate the pump and use it in any direction except upside-down to best suit your
installation.
2. Secure the EK-XRES Glass Revo D5 using enclosed M74 Nut.
Factory original
pump top
61x3mm sealing gasket (OR)
D5 pump body with
motor
Rubber Dumper
(this paragraph is intentionally left blank)
Mounting holes
Series Reservoir
EK-XRES Revo D5
D5D5
Computer chassis
M4x10 screw+
washer
EK-Revo D5 Holder
www.ekwb.com
(already done by EK)
Connection pipe
D5 pump body with motor
Pump holder
metal plate
st
Released on 4
of January, 2016.
for updates. Before
Outlet
Inlet

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EK-XRES Glass Revo D5 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for ekwb EK-XRES Glass Revo D5 Series

  • Page 1 This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at www.ekwb.com for updates. Before installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.
  • Page 2 EK-XRES Glass Revo D5 PWM (incl. pump) series reservoir pump combo featured 2 (two) G1/4 threaded ports on the main body of which 1 (one) is inlet and other is outlet. Reservoir has 3 (three) options for inlet port one is on the main boy near outlet port and three are placed on reservoir top. EKWB recommends using EK-ACF fittings with the EK-XRES Glass Revo D5 PWM series reservoir pump combo units.
