Vex Robotics VEXnet Joystick Setup page 6

Setup
VEXnet Joystick Configuration
2. Tether the USB port on the VEXnet Joystick to the USB port on the Cortex using a USB
A-to-A cable.
3. Power the Cortex ON. After a few seconds, ROBOT and VEXnet LEDs will blink green,
indicating that the Cortex and VEXnet Joystick have successfully paired.
© 2011 Carnegie Mellon Robotics Academy / For use with VEX Robotics Systems
in ROBOTC
(cont.)

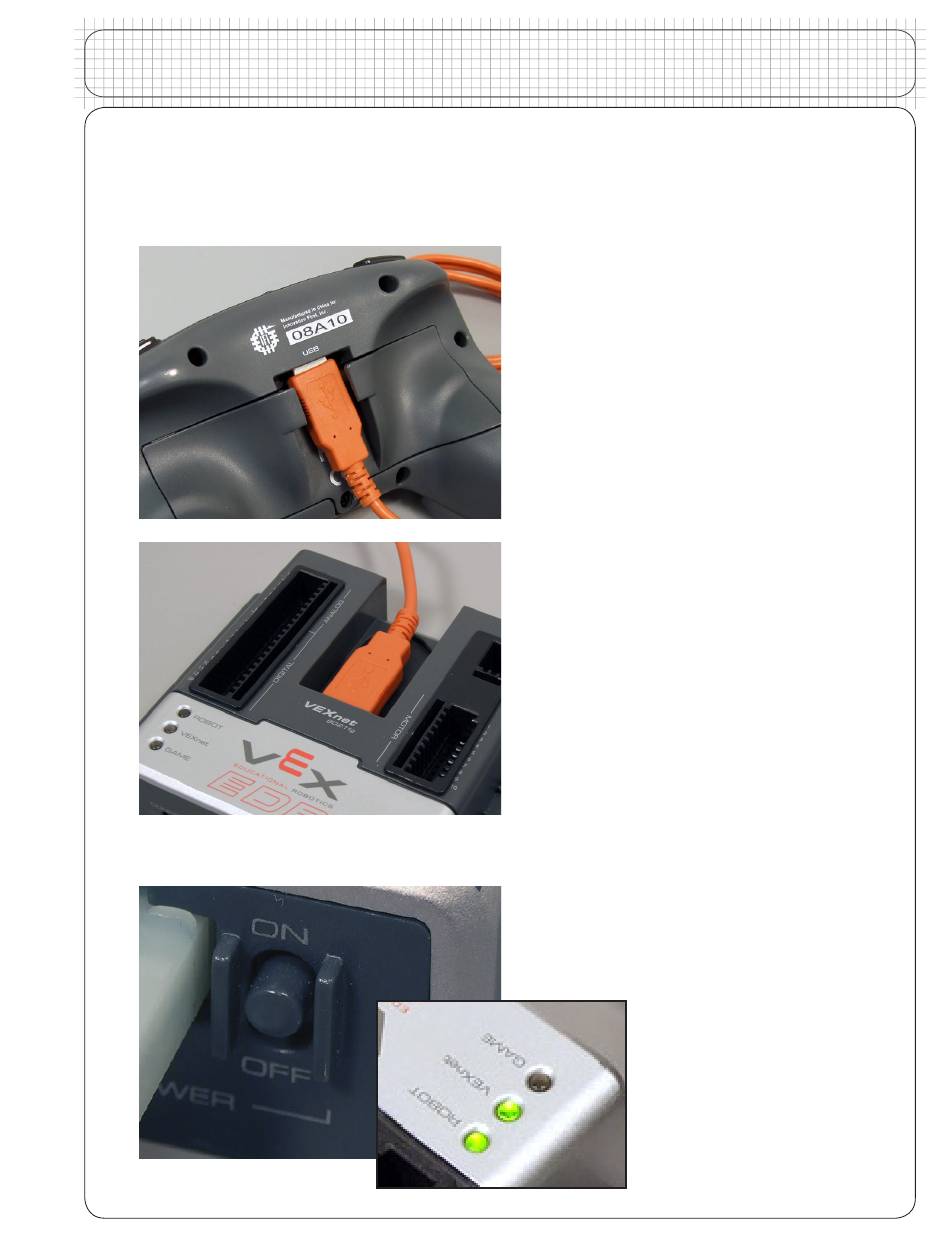

2a. VEXnet Joystick USB Port
Plug one end of the USB A-to-A cable into
the USB port on the VEXnet Joystick.
2b. VEX Cortex USB Port
Plug the other end of the USB A-to-A cable
into the USB port on the VEX Cortex.
3a. Turn the Cortex ON
3b. Status LEDs
The ROBOT and VEXnet LEDs will blink
green once the Cortex and VEXnet
Joystick have successfully paired.
VEX Cortex Configuration over USB
ROBOTC
• 5
