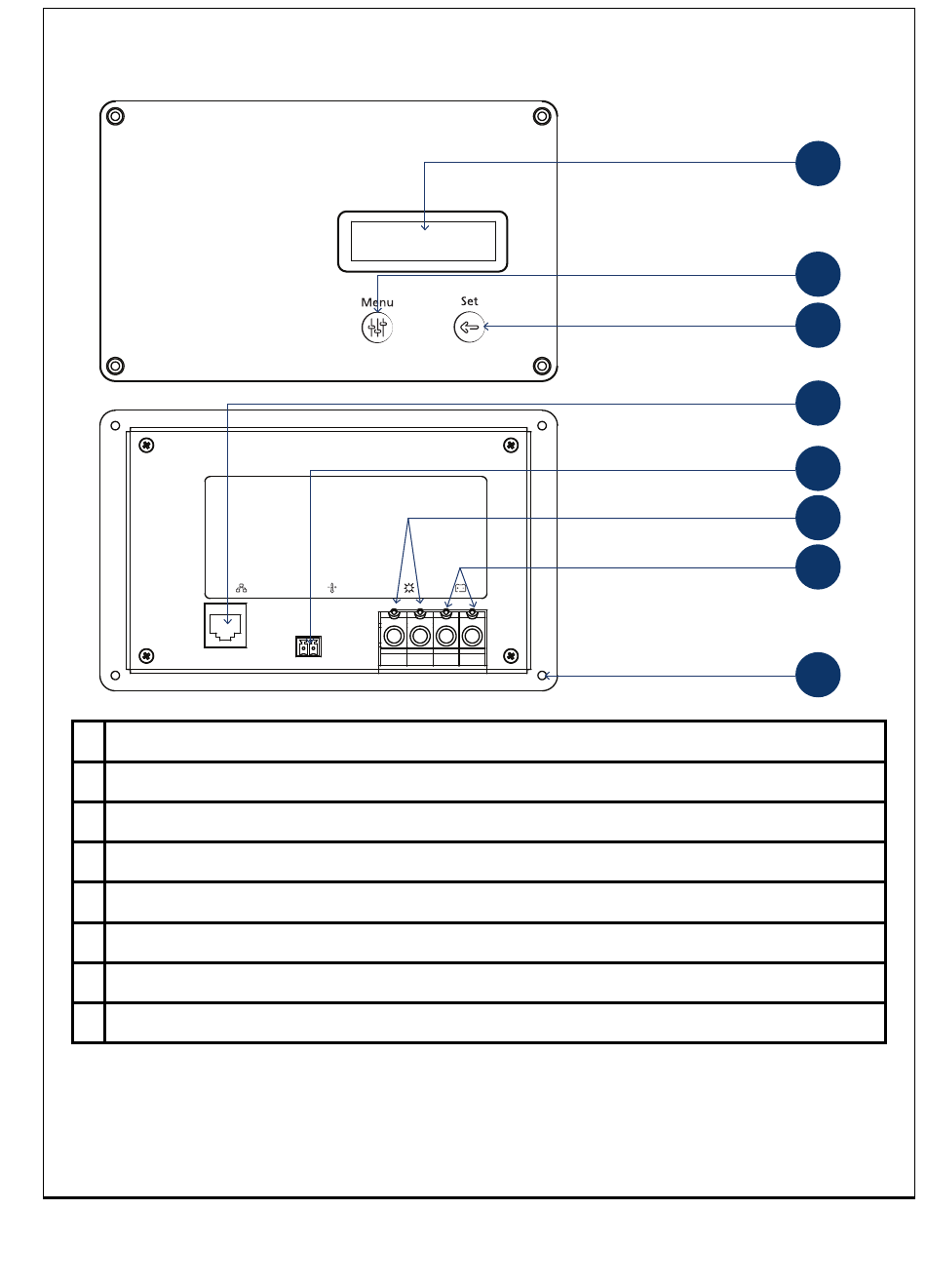

Unit Features

Comms
1 LCD display - See OPERATION on page 24.
2 MENU button - See OPERATION on page 24.
3 SET button - See OPERATION on page 24.
4 COM port non-functional. c Do not use.
5 BTS port - Connect the optional Remote Battery Temperature Sensor (PN: 708-0080).
6 PV - DC [+] and [–] input terminals - Connects to a PV/solar panel.
7 Battery - DC [+] and [–] output terminals - Connects to a 12V or 24V battery.
8 Mounting holes - See Mounting Requirements on page 18.
975-1012-01-01 Rev B
Oct 2019
Temp Sensor PV+ PV- Batt+ Batt-
1
2
3
4
5
6
7
8
13
