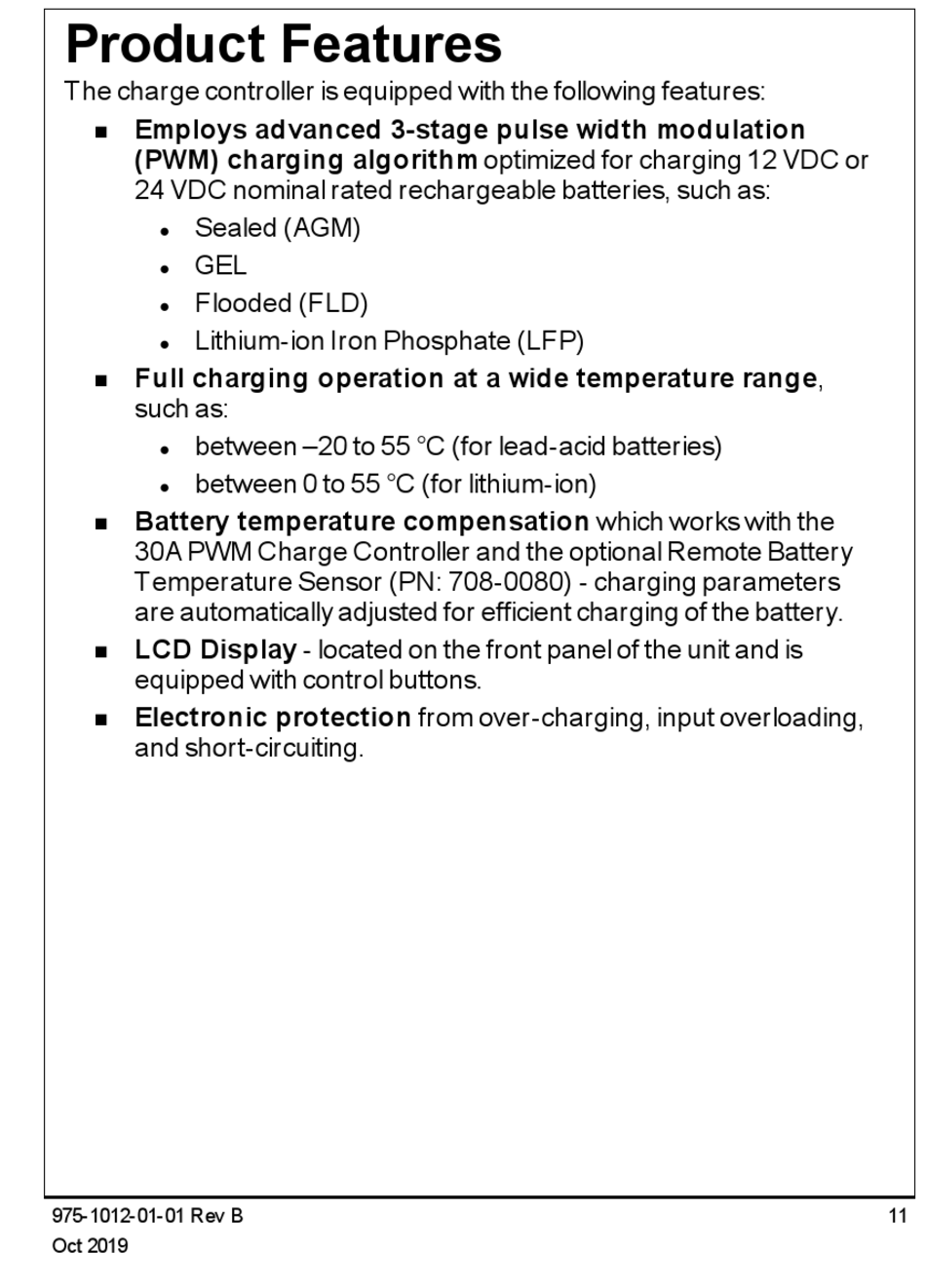

Product Features - Xantrex SOLAR CHARGE CONTROLLER 30 Owner's Manual

Product Features

The charge controller is equipped with the following features:
Employs advanced 3-stage pulse width modulation
n
(PWM) charging algorithm optimized for charging 12 VDC or
24 VDC nominal rated rechargeable batteries, such as:
Sealed (AGM)
l
GEL
l
Flooded (FLD)
l
Lithium-ion Iron Phosphate (LFP)
l
Full charging operation at a wide temperature range,
n
such as:
between –20 to 55 °C (for lead-acid batteries)
l
between 0 to 55 °C (for lithium-ion)
l
Battery temperature compensation which works with the
n
30A PWM Charge Controller and the optional Remote Battery
Temperature Sensor (PN: 708-0080) - charging parameters
are automatically adjusted for efficient charging of the battery.
LCD Display - located on the front panel of the unit and is
n
equipped with control buttons.
Electronic protection from over-charging, input overloading,
n
and short-circuiting.
975-1012-01-01 Rev B
Oct 2019
11
