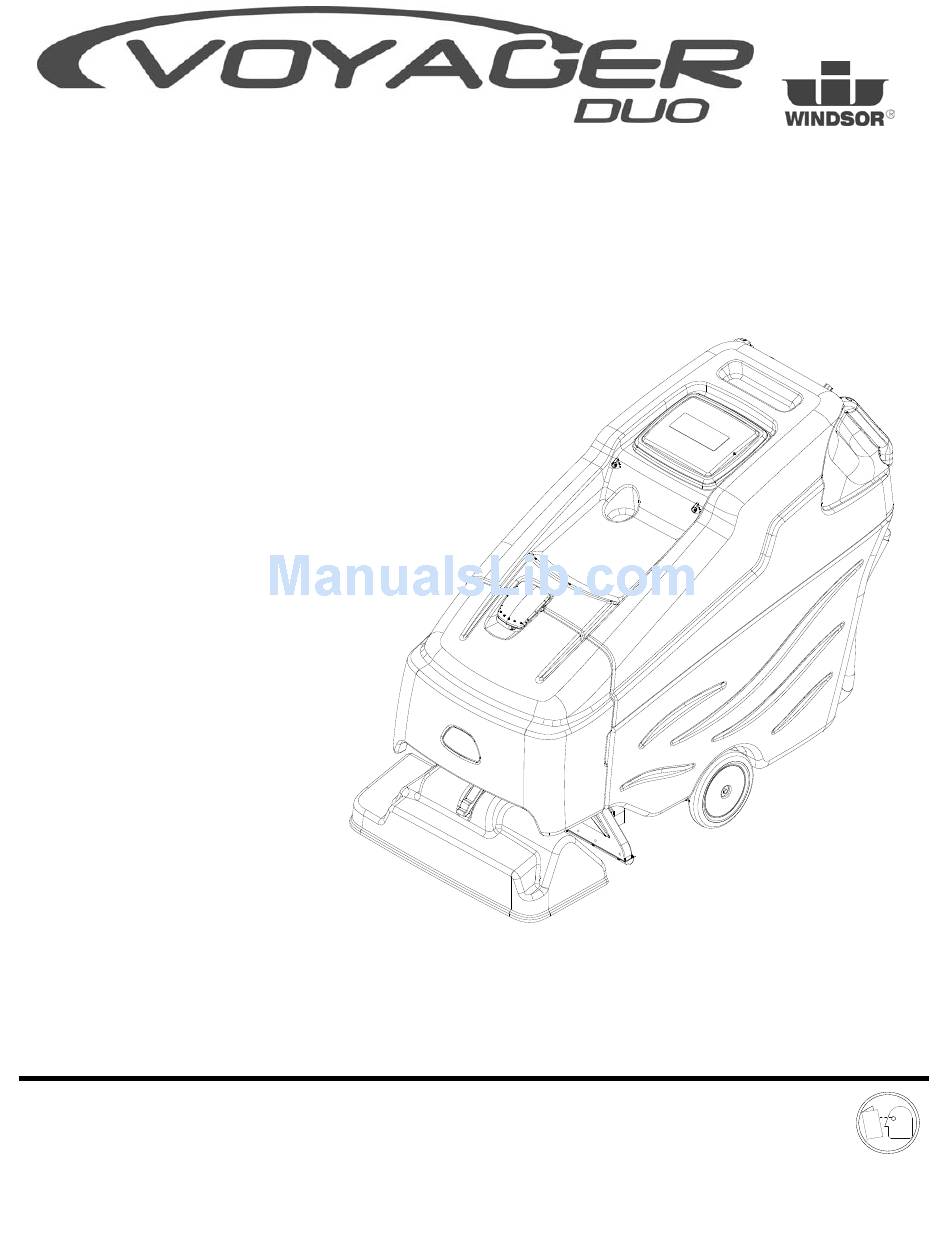

MACHINE DATA LOG/OVERVIEW MODEL _______________________________________ DATE OF PURCHASE __________________________ SERIAL NUMBER ______________________________ SALES REPRESENTATIVE # _____________________ YOUR DEALER Name: __________________________________________________________________________________________________ Address: _______________________________________________________________________________________________ Phone Number: _________________________________________________________________________________________ The Voyager Duo is a battery powered carpet extractor intended for commercial use. The Voyager Duo applies a cleaning solution onto a carpeted floor, sweeps and scrubs the carpet with two counter-rotating brushes and then vacuums the soiled water back into the recovery tank.
Machine Data Log/Overview...2 Table Of Contents ...3 HOW TO USE THIS MANUAL How To Use This Manual...1-1 SAFETY Important Safety Instructions ... 2-1 Hazard Intensity Level... 2-2 Safety Label Location... 2-3 OPERATIONS Technical Specifications... 3-1 How The Machine Works..3-4 Components...
The HOW TO USE THIS MANUAL section will tell you how to find important information for ordering correct repair parts. Parts may be ordered from authorized Windsor dealers. When placing an order for parts, the machine model and machine serial number are important.
IMPORTANT SAFETY INSTRUCTIONS When using an battery powered appliance, basic precaution must always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE. To reduce the risk of fire, electric shock, or injury: Use only indoors. Do not use outdoors or expose to rain. Use only as described in this manual.
WHEN SERVICING MACHINE: Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the machine. Use Windsor approved replacement parts. Batteries emit hydrogen gas. Explosion or fire can result. Keep sparks and open flame away. Keep solution tank in raised position when charging.
NOTE: These drawings indicate the location of safety labels on the machine. If at any time the labels become illegible, promptly replace them. FRONT PANEL CAUTION 86013310 BATTERY CAUTION 86252520 (PRV NO. 80885) SOLUTION WARNING 86244300 (PRV NO. 500955) 86292490 VOYAGER DUO 08/20/07 SAFETY LABEL LOCATION PINCH CAUTION 86243830...
ITEM Height Length Width Width of scrub path WIDTH SPECIAL NOTES: The sound pressure level at the operator’s ear was measured to be 70.5 dBA. This was a nearfield, broad- band measurement taken in a typical industrial environment on a tile floor. This appliance contains no possible source of impact noise.
The machine is designed to maintain your carpet using the Encapsulating Interim Carpet Cleaning Process. By using the Interim Carpet Maintainer in conjunction with Windsor Red Carpet Encapsulating Interim Cleaning (W450-4) or Encapsulating Interim Cleaning with Carpet Protection (W455-4) chemical...
1. Control Panel-Drive/Scrub 2. Front Cover 3. Solution Tank 4. Recovery Tank 5. Solution Fill Cover 6. Recovery Dome 7. Scrub Deck 8. Recovery Drain Hose 9. Solution Drain Hose 10. Vacuum Shoes 11. Chemical Tank “A” (Deluxe) 12. Chemical Tank “B” (Deluxe) 13.
1. KEY SWITCH Controls the power for machine functions. To turn the machine power on, rotate key clockwise. To turn the machine off, rotate key counterclockwise. 2. REVERSE BUTTON Controls the direction of travel of the vehicle. To travel in reverse, press the button and press either of the throttle switches. To travel forward, release the button are press either of the throttle switches.
SCRUB CONTROLS Solution Pump Switch Solution Pump Indicator 3. Function Switch 86292490 VOYAGER DUO 08/20/07...
Page 17
1. SOLUTION PUMP SWITCH Controls power to the spray pump. If the throttle is in neutral, or reverse control button is in reverse position, the flow is automatically interrupted. This feature prevents application of solution without scrubbing it into carpet. 2.
Page 18
SCRUB CONTROLS SCRUB DECK ROTARY SWITCH (DELUXE) Raises and lowers the scrub deck, and turns the scrub brush motors on and off, and controls the solution solenoids. For interim/pre-spray “A” mode, rotate the function knob to the “A” position. The “A” chemical will be drawn from its tank and delivered to the solution system.
PRE-RUN MACHINE INSPECTION Do a pre-run inspection to find possible problems that could cause poor performance or lost time from breakdown. Follow the same procedure each time to avoid missing steps. NOTE: See maintenance section for pre-run machine inspection checklist items. STARTING MACHINE NOTE: Perform pre-run machine check before operating machine.
MACHINE OPERATION FILLING SOLUTION TANK FOR SAFETY: Before leaving or servicing machine; stop on level surface, turn off machine and remove key. Turn the machine power off. Remove the front cover and the solution fill lid. Fill the solution tank with clean water. (See the Technical Specifications chart for exact capacity).
TO BEGIN SCRUBBING When operating the machine around people, pay close attention for unexpected movement. Use extra caution around children. 1. Turn machine power on. 2. Position rotary switch to the position matching the process to be preformed, and the chemical that was added to the solution tank or chemical tank (Deluxe), either interim or interim/pre-spray (Deluxe) or extraction cleaning.
MACHINE OPERATION SOLUTION DRAIN HOSE EMPTYING AND CLEANING SOLUTION TANK 1. Park the machine next to a floor drain. Drain hose is at the rear of the machine. 2. Turn the machine power off. 3. Remove the top of the hose from the barb mount and lower hose in direction of the drain.
Page 23
NOTES: 86292490 VOYAGER DUO 08/20/07 3-15...
MACHINE OPERATION SERVICE SCHEDULE MAINTENANCE Check water level of batteries after charging; add distilled water if necessary. Check brushes for proper installation. Check for securely attached drain hose, plug and cap. Check that solution fill lid seals tightly Visually check for damaged or worn tires. Check all throttle, direction and speed controls for proper operation.
MAINTENANCE-BATTERIES BATTERIES The batteries provide the power to operate the machine. The batteries require regular maintenance to keep them operating at peak efficiency. The machine batteries will hold their charge for long periods of time, but they can only be charged a certain number of times.
Page 27
CHECKING BATTERY SPECIFIC GRAVITY Use a hydrometer to check the battery specific gravity. Battery Check CHECKING GRAVITY A. Hydrometer B. Battery NOTE: Do not take readings immediately after adding distilled water, if the water and acid are not thoroughly mixed, the reading may not be accurate. Check the hydrometer readings against this chart.
MAINTENANCE-BATTERIES 6. Replace the battery caps, and leave them in place while charging. 7. Unplug the machine connector from the battery. FOR SAFETY: When charging, connect the charger to the batteries before connecting the charger to the AC wall outlet. Never connect the charger to the AC wall outlet first.
MAINTENANCE-SCRUB DECK SCRUB HEAD The dual cylindrical scrub head is designed to scrub chemical into the carpet. The two counter rotating brushes raise the pile of the carpet, giving it a lush groomed appearance. MAINTENANCE Scrub brushes should be exchanged front to back every 50 hours to ensure even wear.
Do not use a pressure washer to clean around the brush motors. Use tap pressure only. TO REPLACE SCRUB BRUSH MOTORS 1. With the scrub deck in the lowered position, remove the deck cover and disconnect brush motor wiring connector from harness. 2.
MAINTENANCE-SCRUB DECK ACTUATOR SCRUB DECK REMOVAL/REPLACEMENT FOR SAFETY: Before leaving or servicing machine, stop on a level surface. Turn off machine. 1. Lower scrub deck. Remove the front cover and raise recovery tank. 2. Disconnect electrical connector. 3. Remove the clevis pin retaining the bottom of the acutator.
CIRCUIT BREAKERS Circuit breakers interrupt the flow of power in the event of an electrical overload. When a circuit breaker is tripped, reset it by pressing the exposed button. If a circuit breaker continues to be found and corrected. 30 Amp. Protects the vacuum motor. 30 Amp.
MAINTENANCE-SOLUTION STRAINER & PUMP - BASIC SOLUTION STRAINER The solution strainer is located on the front of the machine under the front cover. The strainer protects the pump, solenoid valve and jets from debris. If there is little or no solution flow to the ground, check the strainer for debris.
Page 37
MAINTENANCE-SOLUTION STRAINER & PUMP - DELUXE SOLUTION STRAINER The solution strainer is located under the recovery tank. The strainer protects the pump, solenoid valve and jets from debris. If there is little or no solution flow to the ground, check the strainer for debris.
Page 38
MAINTENANCE SOLUTION STRAINER & PUMP - DELUXE A-B CHEMICAL PUMP & CHEMICAL PUMP 1. The chemical tank “A” holds either encapsulating interim chemical or pre-spray chemical. Tanks should be cleaned weekly. Extra chemical should be stored using the blank cap instead of the straw cap. 2.
Page 39
NOTES: 4-16 86292490 VOYAGER DUO 08/20/07...
DRIVE MOTOR CARBON BRUSH REPLACEMENT Do not use a pressure washer to clean around the motors. Use tap pressure only. FOR SAFETY: Before leaving or servicing machine, stop on a level surface, turn off machine and remove key. 1. Disconnect batteries from machine. 2.
MAINTENANCE-VACUUM 1. Vacuum Shoes 2. Vacuum Glides 3. Vacuum Shoe Retainer Knobs 4-19 4. “Y” Tube 5. Float Ball and Screen 6. Vacuum Motor 86292490 VOYAGER DUO 08/20/07...
Page 43
VACUUM SHOES The dual offset vacuum shoes are designed to extract soiled solution from the carpet. The plastic vacuum shoe glides minimize wear to flooring. MAINTENANCE The vacuum shoes should be removed and cleaned daily to ensure maximum recovery. VACUUM SHOE REMOVAL 1.
Page 44
MAINTENANCE-VACUUM TO REPAIR OR REPLACE VACUUM MOTOR(S) 1. Remove the front cover, drain the recovery tank and disconnect the vacuum hose assembly from the “Y” tube. 2. Raise the recovery tank and safely engage the prop rod latch. 3. Disconnect electrical connector from the vacuum motor(s) and connecting hoses.
PUSHING MACHINE The machine may be pushed for short distances at speeds not to exceed 5 mph. Be careful to avoid damaging machine. The machine may be pushed by hand from the rear. NOTE: To avoid damage caused by regenerative voltage, disconnect traction motor before towing or pushing machine.
MACHINE-TROUBLESHOOTING PROBLEM CAUSE No power to machine Battery disconnected Battery cables corroded Faulty key switch Little or no propel Low battery charge Machine turned on with propel trigger not in neutral position Tripped circuit breaker Controller overheated Loose motor connection Faulty throttle circuit or potentiometer Faulty brake circuit...
CONTROL PANEL MOUNTING 5-23 86292490 VOYAGER DUO 08/20/07...
Page 71
PART NO. PRV NO. 86276290 70626 86294250 86072110 141056 86274290 70162 DESCRIPTION SCR, #10 X 3/4 PPHST HI-LO BLK WASHER, .19 ID X .5 X .09TK BLK BRKT, BACK, CONTROL PANEL SCR, 10-32 X 3/8 PPHMS SS 86292490 VOYAGER DUO 10/15/07 CONTROL PANEL MOUNTING SERIAL NO.
Page 75
86013660 86004970 50990 86013330 86014330 DESCRIPTION LABEL, BASIC CONTROL LABEL, EXTRACTORS, BREAKERS LABEL, VOYAGER, LEFT LABEL, VOYAGER, RIGHT LABEL, WINDSOR LOGO DOMED LABEL, SOL FILL, 30 GAL LABEL, CHARGER CONNECTION 86292490 VOYAGER DUO 08/20/07 DECAL SERIAL NO. NOTES: FROM 5-28...
