Dynojet Power Commander V Installation Instructions page 3

FIG.A
FIG.B
FIG.C
Unplug
22-001 www.powercommander.com
1
2
3
4
PCV harness
5
6
Ground wire
7
Remove the main seat and the passenger seat.
Prop the front of fuel tank up.
Remove the rubber plug in the tail section near the tool kit.

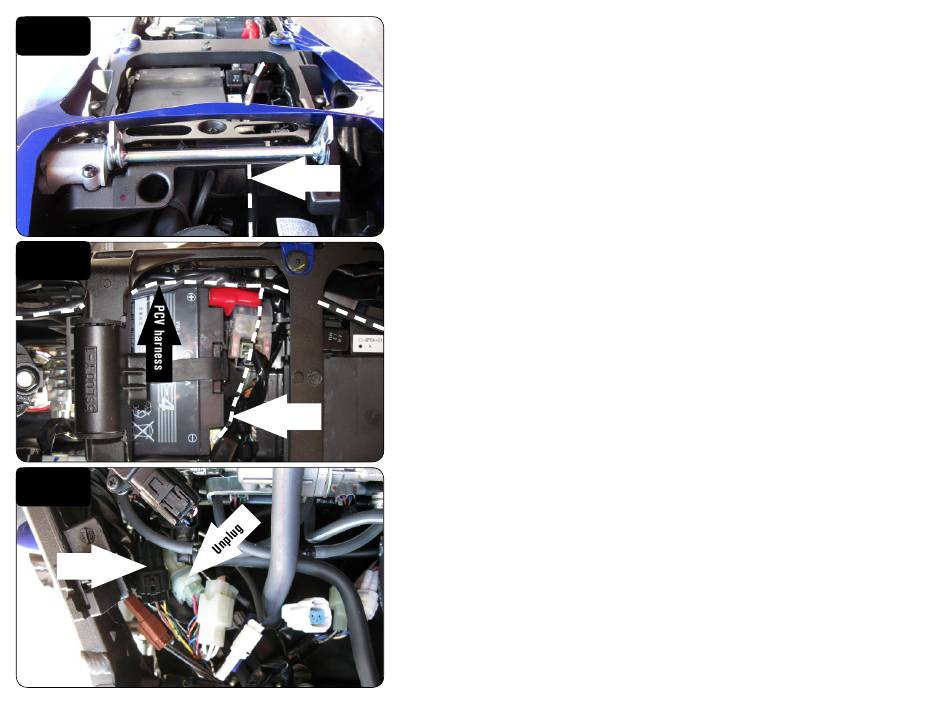

Lay the PCV unit in the tail section and route the harness thru the hole and
down the right side of the bike (Fig. A)
Route the PCV harness under the cross member for the subframe (Fig. B).
Attach the ground wire of the PCV to the negative side of the battery (Fig. B).
Unplug the 2 different 6 pin connectors from the throttle bodies (Fig. C).
One plug is BLACK and the other is CLEAR
2009 Yamaha R6S PCV - 3
