Williams Sound SoundPlus Infrared Transmitter WIR TX90 Specification page 4

SoundPlus Infrared Transmitter
®
Feet
90
80
70
60
50
40
30
20
10
0
-10
-20
-30
-40
-50
-60
-70
-80
-90
Feet
0
10 20

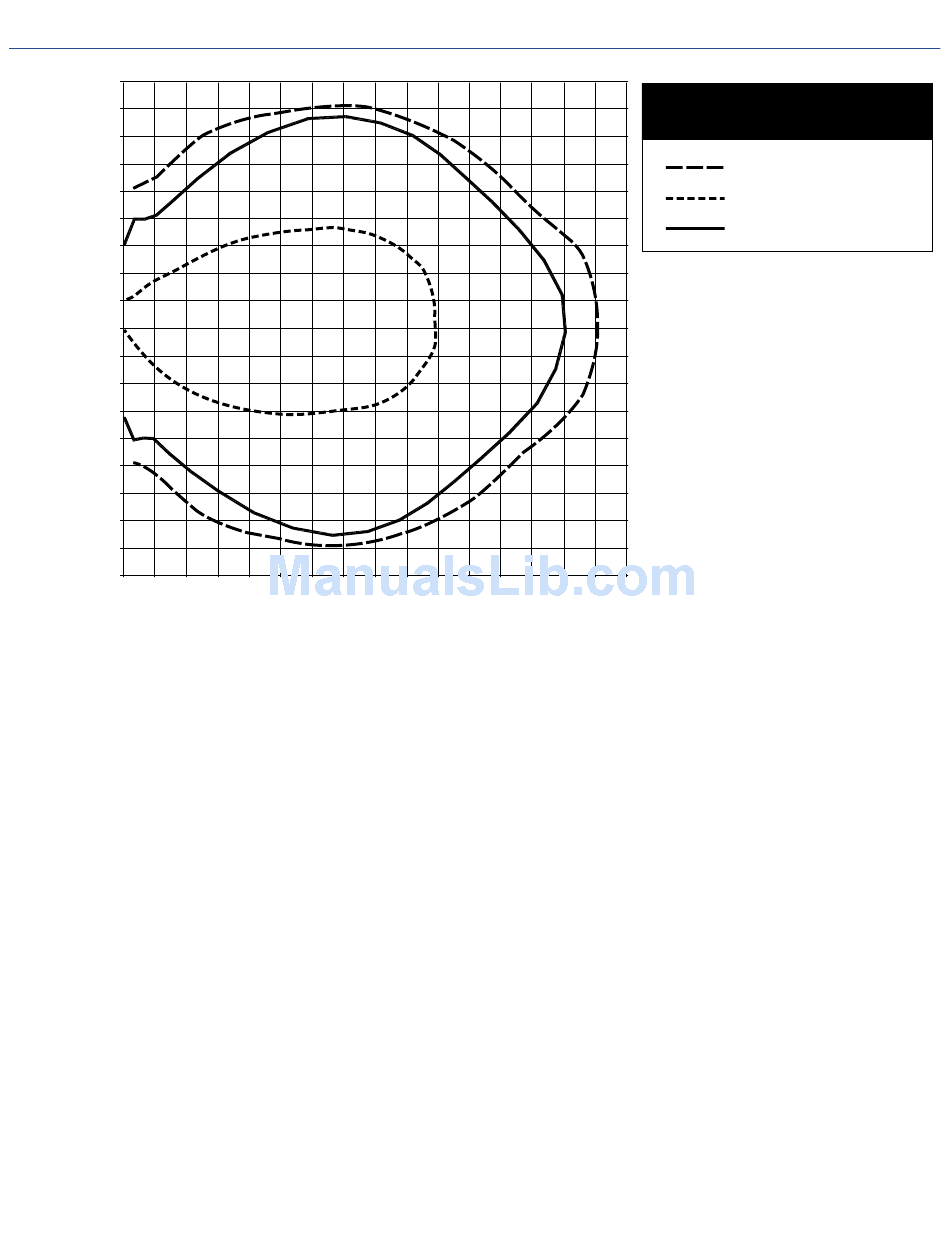

Fig. 3: Receiver Coverage Area with TX90 Transmitter in Single Channel Mode
The coverage area for the TX90 will vary depending on the receiver being used. The diagram above demonstrates the receiver coverage
when operating a single TX90 transmitter in single channel mode. Patterns are direct radiation patterns.
Note: Reflections of the infrared light from walls, ceilings and floors may change these patterns.
NOTE: SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE!
30 40 50 60 70 80
90 100 110 120 130 140 150 160
Receiver Coverage Area with TX90
Transmitter in Single Channel Mode
RX22-4 Receiver
RX15-2 Receiver
RX18 Receiver
