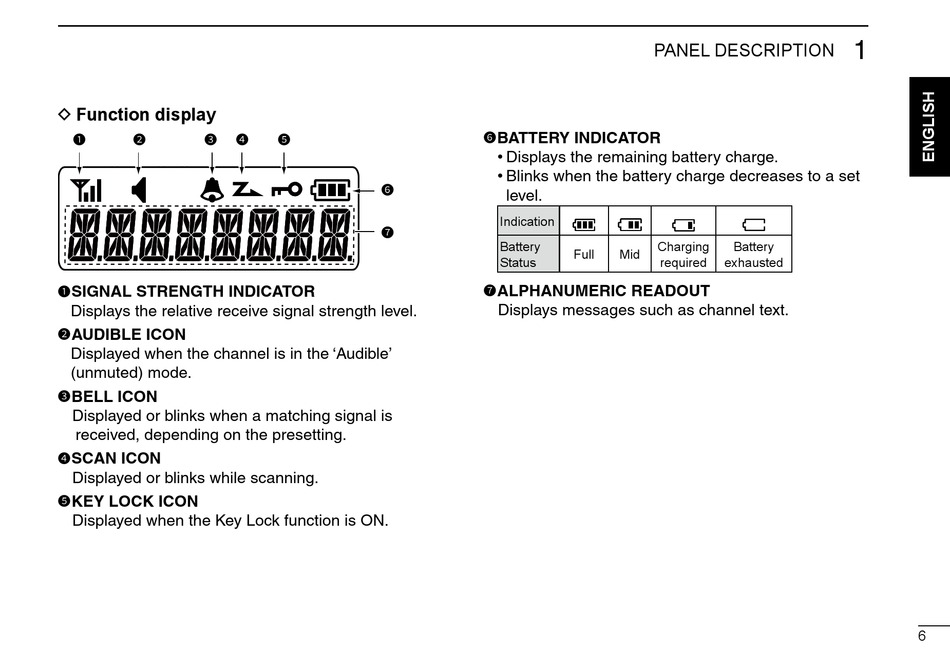

D Function display
1 2 3 4
S IGNAL STRENGTH INDICATOR
1
Displays the relative receive signal strength level.
A UDIBLE ICON
2
Displayed when the channel is in the 'Audible'
(unmuted) mode.
B ELL ICON
3
Displayed or blinks when a matching signal is
received, depending on the presetting.
S CAN ICON
4
Displayed or blinks while scanning.
K EY LOCK ICON
5
Displayed when the Key Lock function is ON.
5
6
7
PANEL DESCRIPTION
B ATTERY INDICATOR
6
• Displays the remaining battery charge.
• Blinks when the battery charge decreases to a set
level.
Indication
Battery Charging
Full Mid
Status required
A LPHANUMERIC READOUT
7
Displays messages such as channel text.
1
Battery
exhausted
