The ISDN 8510T Voice Terminal Firmware
If it becomes necessary to update the firmware cartridge in the bottom of
the 8510T voice terminal, use the following procedures.
Removing the Voice Terminal from Operation
If the voice terminal is in operation, you must disconnect the line and
adjunct cords before you can change the EPROM board. See Figure 1
for the location of the jacks, cords and routing channels.
Pick up the handset (you can leave it connected to the voice
1
terminal) and lay it aside.
Turn the voice terminal over and disconnect the line cord from the
2
Line jack and the cord of any adjunct equipment from the Adjunct
jack. You can leave the cables in the routing channels.
Kickstand
Routing channel
for line cord and
adjunct cord
Line jack
Adjunct jack

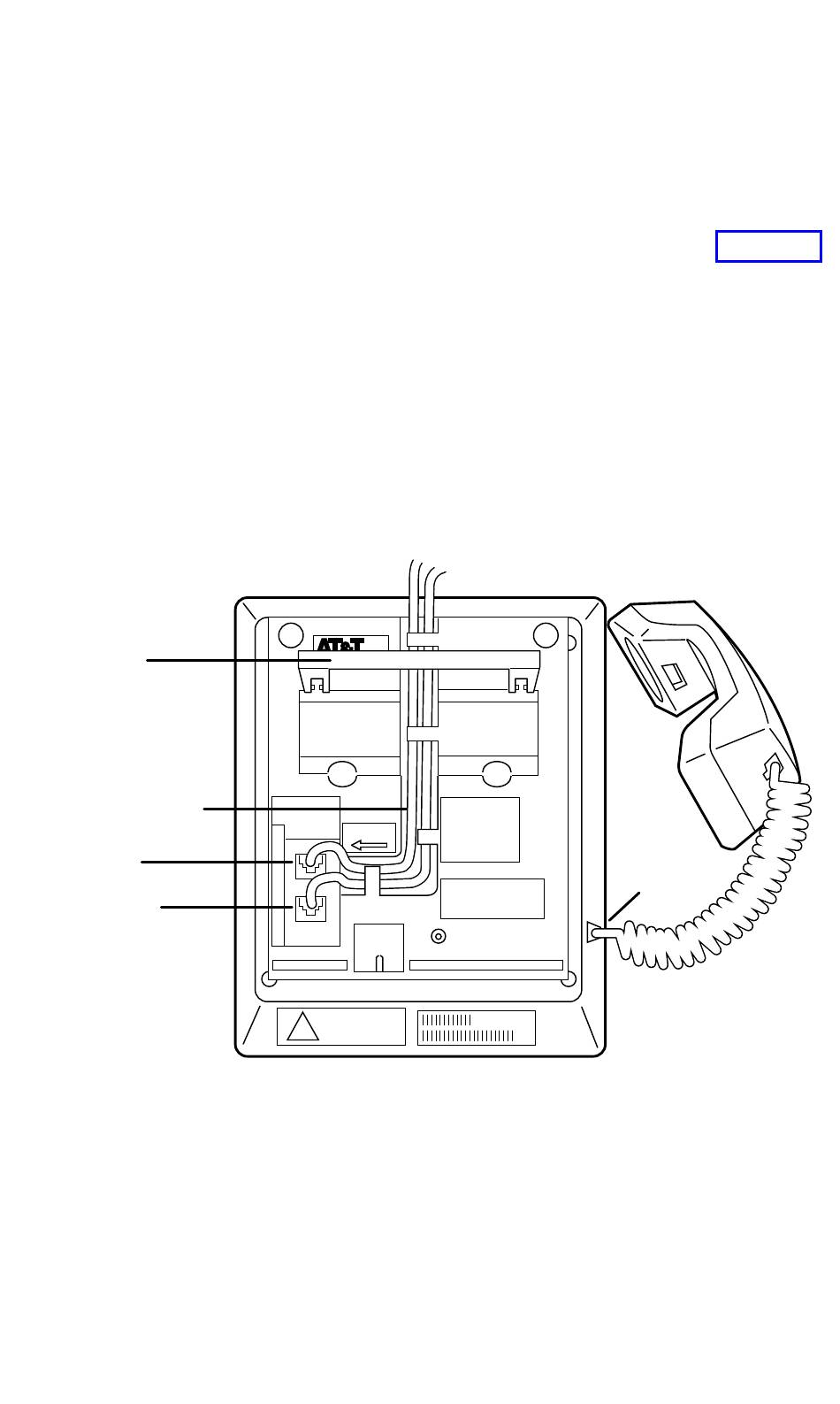

FIGURE 1 Line, Adjunct, and Handset Cord Routing for Desktop Installation
DO NOT PLUG
HANDSET!
!
4
Handset
jack
