Control device LEDOTRON
Control device LEDOTRON
Order No. : 2290 00
Operating instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
Danger of electric shock. Always disconnect before carrying out work on the devise or
load. At the same time, take into account all circuit breakers that supply dangerous
voltage to the device or load.
These instructions are an integral part of the product, and must remain with the end
customer.
2 Device components
(1) Control unit
(2) Frame
(3) Central plate
(4) Control button
(5) Screw terminals
3 Function
Intended use
-
Switching and dimming of Ledotron lamps
-
Switching incandescent lamps
-
Installation in appliance box according to DIN 49073
Product characteristics
-
Ledotron is a digital communication standard for switching and dimming lamps
-
Electronic short-circuit protection with permanent switch-off after 100 milliseconds
-
Electronic over-temperature protection
-
Changeover switch possible in combination with two dimmers
32577822
10499280 I01

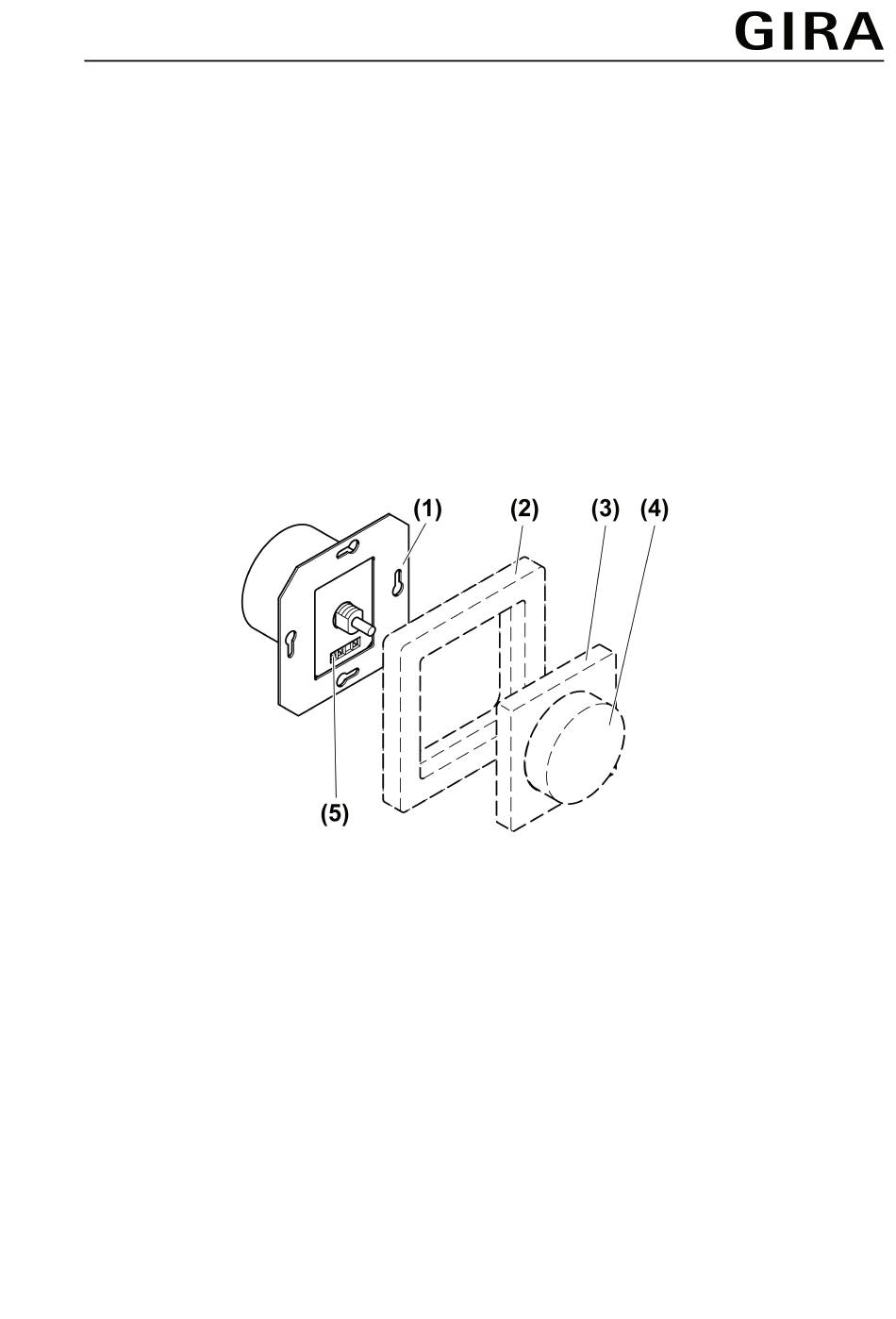

Figure 1: Device components
14.07.2014
1/4
