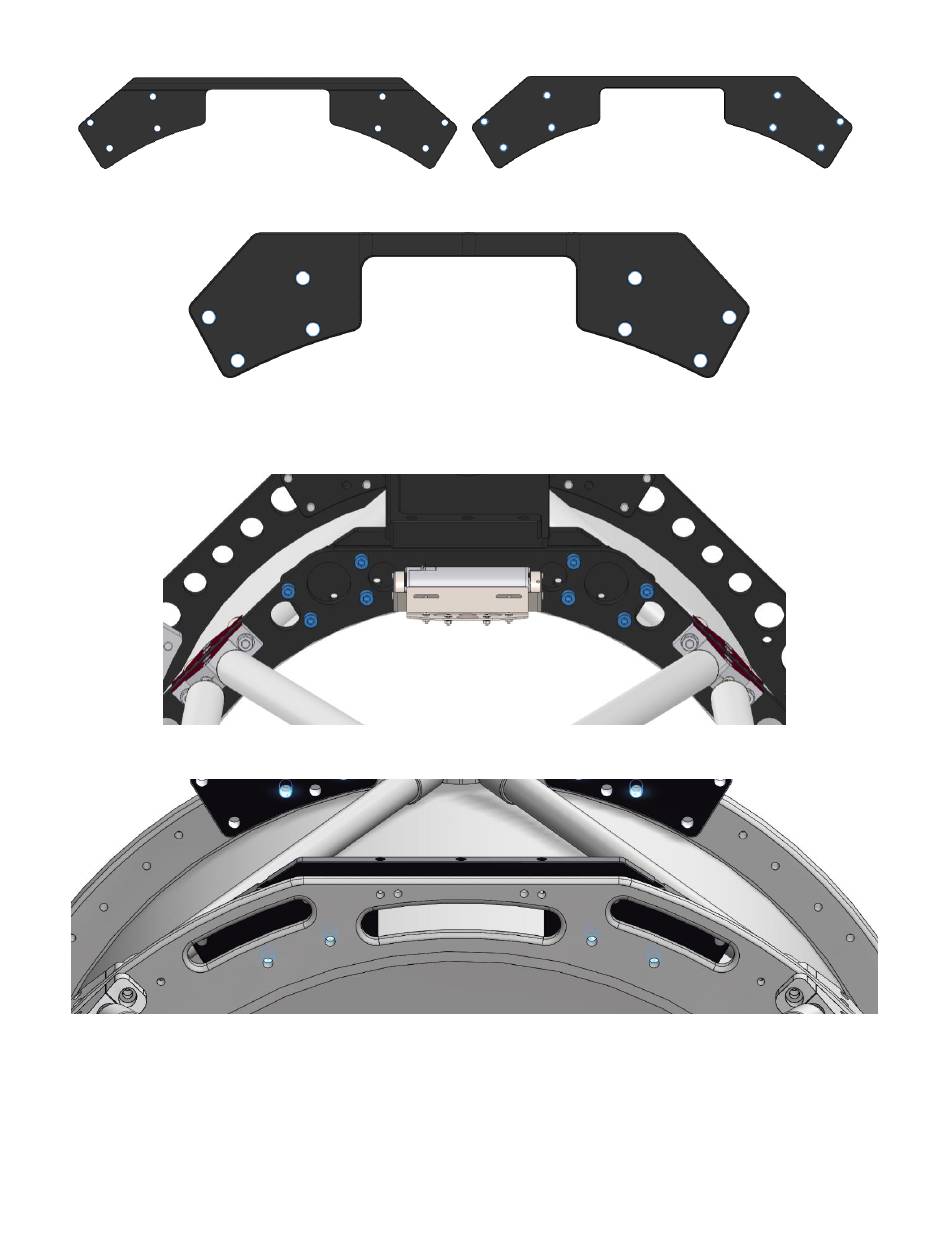

Figure 6: Eight 5/16-18 threaded holes for Officina Stellare 600 OTA bracket (front on the left, rear on the right)
Figure 7: Eight 5/16-18 threaded holes for Officina Stellare 400 OTA bracket (front and rear are the same)
The plates are mounted in the orientation shown in Figure 8.
Figure 8: Front bracket installed (Officina Stellare top, Planewave bottom)
Install the second front plate on the opposite side of the scope (90 degrees from the first) as shown in
Figure 1.
P a g e
| 9
