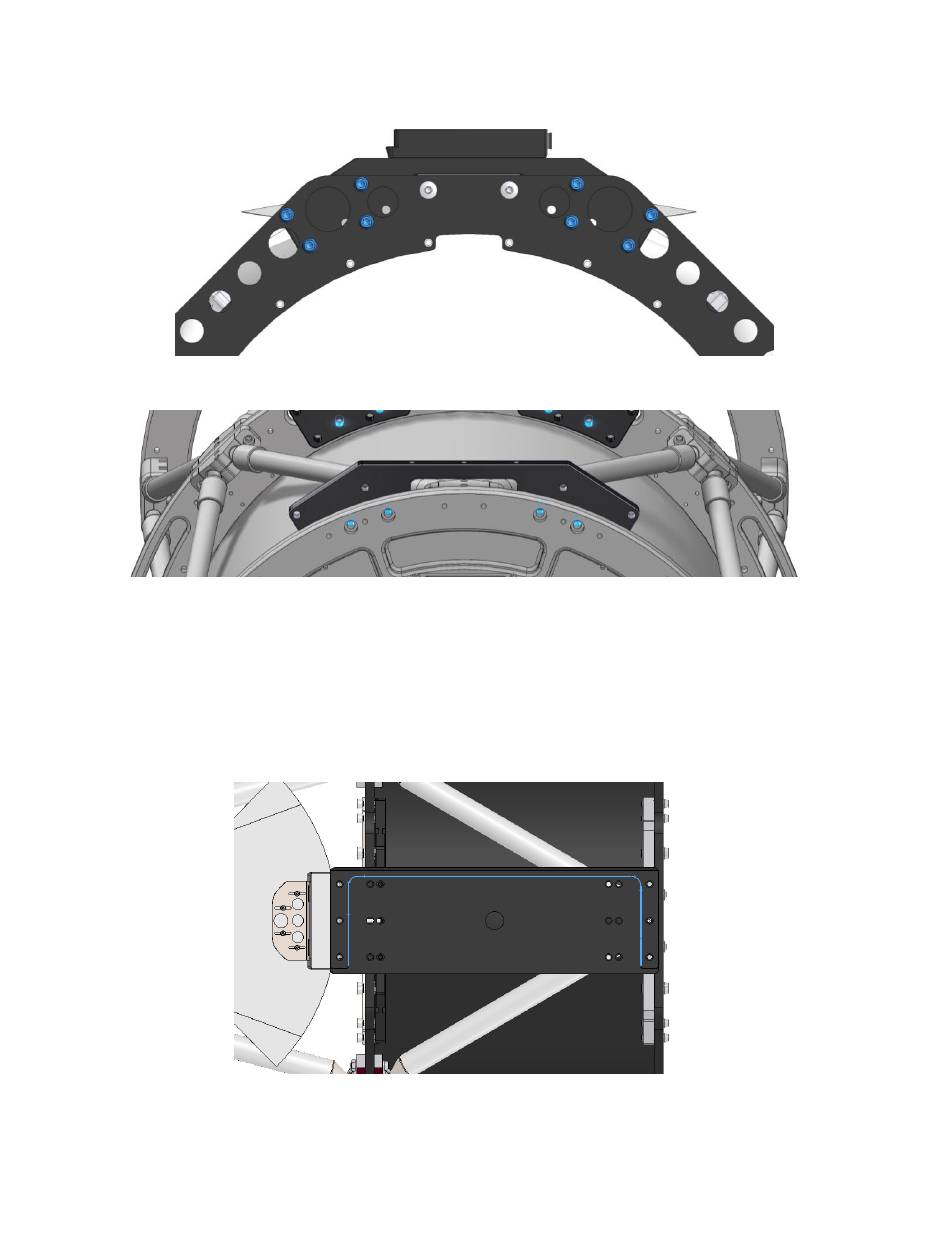

Figure 11: Rear bracket installed (Officina Stellare top, Planewave bottom).
Scope Rail Installation
There are two scope rails, and the orientation of the rail is critical for easy installation into the forks. As
shown below in Figure 13, the U-Shape section of the scope rail needs to be installed facing toward the
ground when the scope is in the position of 0 degrees altitude. Each of the plates are identical, so both
need to be mounted on the front and rear brackets described in the instructions above.
Figure 12: Scope rail installation orientation.
The scope rails can be attached in two different positions to allow OTA balancing. In Figure 13 the rail is
mounted in the further-back position for back-heavy OTAs. The plates have slotted holes to
P a g e
| 11
