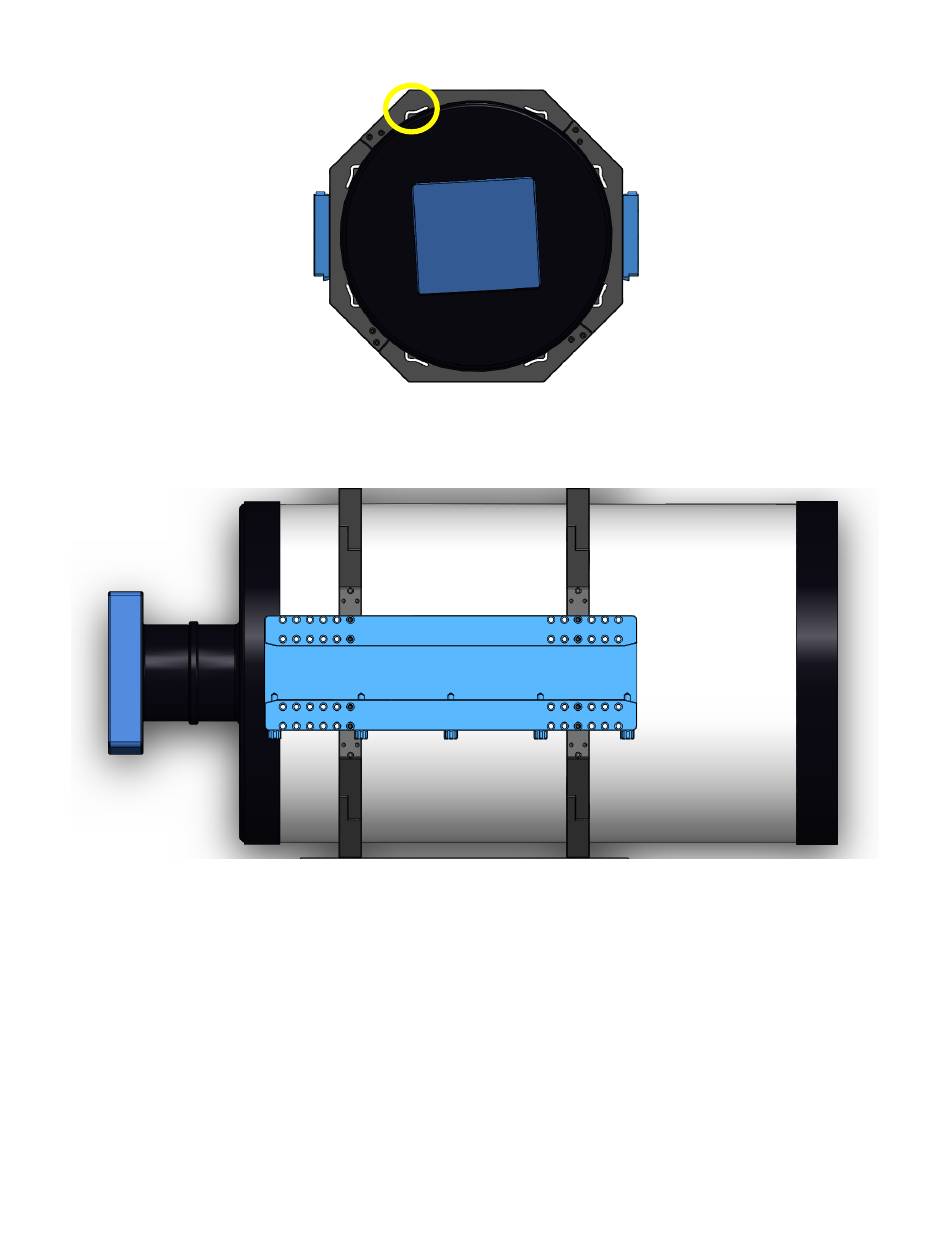

Figure 37: One of the OTA captivation slots is highlighted in yellow above.
Ring Dovetail Accessory Plate Installation
Figure 38: Accessory Plate installed
The optional scope rail accessory plate can be installed on the other three sides of the scope rings if
needed, to mount additional imaging and viewing accessories. The plate includes eight additional ¼-20 x
½-inch SHCSs for mounting to the same holes as the scope rails in multiple positions.
Cage Array Installation
The Software Bisque-designed cage array assembly can be used to attach an array of two, three, four, six
or nine 11-inch or 14-inch OTAs to the Paramount Taurus. The OTAs can be adjusted to point all at one
object or a wide-field "mosaic" formation.
P a g e
| 27
