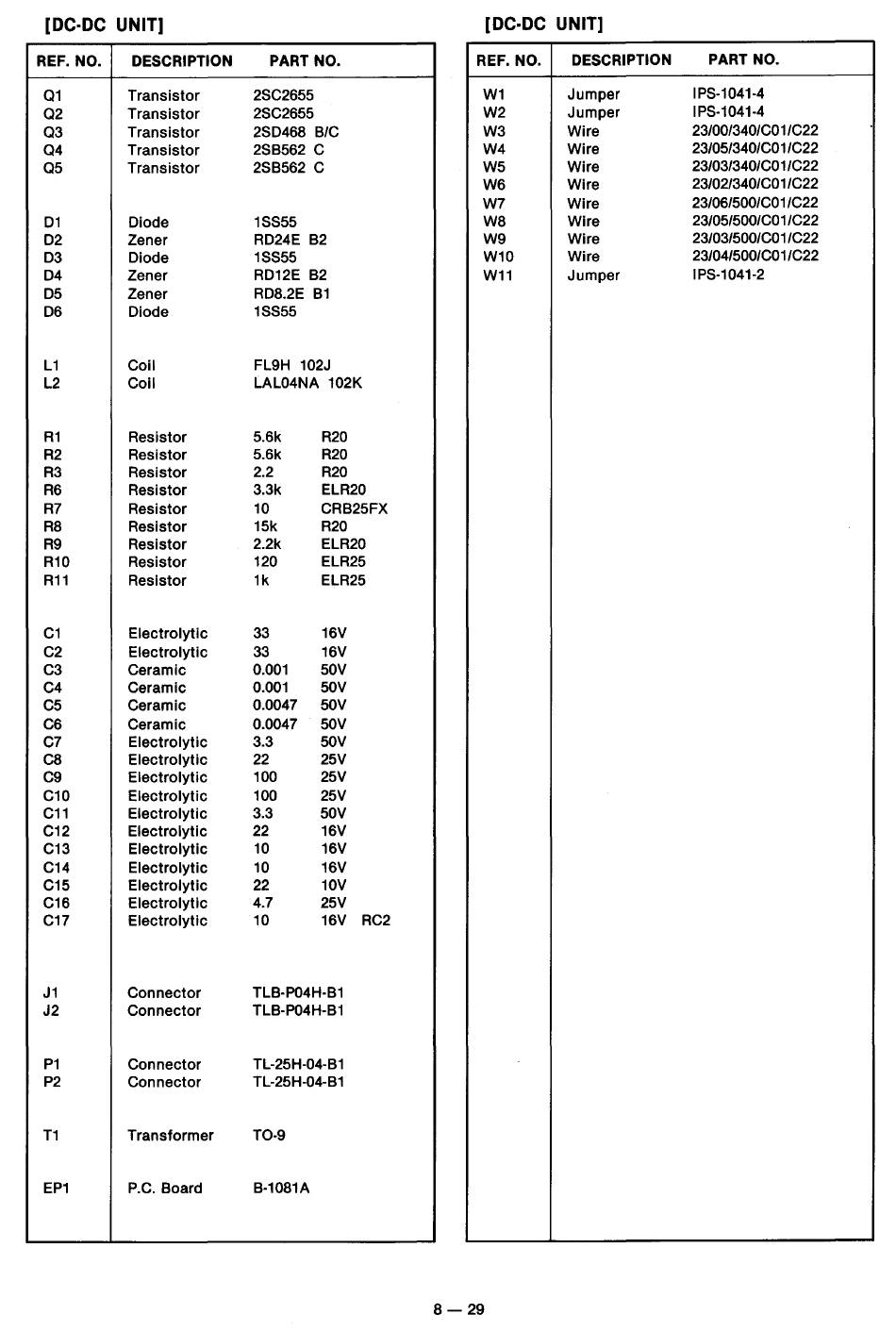

[DC·DC UNIT]
[DC-DC UNIT]
REF. NO. DESCRIPTION PART NO.
REF. NO.
DESCRIPTION PART NO.
01
Transistor 28C2655
W1
Jumper
IP8-1041-4
02
Transistor 28C2655
W2
Jumper IP8-1041-4
03 Transistor 28D46B 8/C
W3 Wire
23/00/340/C01 /C22
04 Transistor
288562
c
W4 Wire
23/05/340/C01 /C22
05 Transistor
288562
c
W5 Wire
23/03/340/C01/C22
W6 Wire
23/02/340/C01/C22
W7 Wire
23/06/500/C01 /C22
D1 Diode 18855
WB Wire
23/05/500/C01 /C22
D2 Zener
RD24E 82
W9 Wire 23/03/500/C01 /C22
D3 Diode 18855 W10
Wire
23/04/500/C01/C22
D4 Zener RD12E 82 W11 Jumper
IP8-1041-2
D5 Zener
RDB.2E 81
D6 Diode 18855
L1 Coil FL9H 102J
L2 Coil
LAL04NA 102K
R1
Resistor
5.6k R20
R2 Resistor 5.6k R20
R3 Resistor 2.2 R20
R6 Resistor
3.3k ELR20
R7 Resistor 10 CR825FX
RB Resistor 15k R20
R9 Resistor 2.2k ELR20
R10 Resistor
120 ELR25
R11
Resistor
1k ELR25
C1 Electrolytic 33 16V
C2 Electrolytic 33 16V
C3 Ceramic 0.001 50V
C4 Ceramic
0.001 50V
C5 Ceramic
0.0047 50V
C6 Ceramic
0.0047 50V
C7 Electrolytic 3.3 50V
CB Electrolytic 22 25V
C9 Electrolytic 100 25V
C10 Electrolytic 100 25V
C11 Electrolytic 3.3 50V
C12 Electrolytic 22 16V
C13 Electrolytic
10 16V
C14 Electrolytic
10
16V
C15 Electrolytic 22 10V
C16 Electrolytic 4.7 25V
C17 Electrolytic 10 16V RC2
J1
Connector
TL8·P04H·81
J2 Connector TL8-P04H-81
P1 Connector
TL-25H-04-81
P2
Connector
TL-25H-04-81
T1
Transformer T0-9
EP1 P.C. Board 8-10B1A
B-29
