5·3

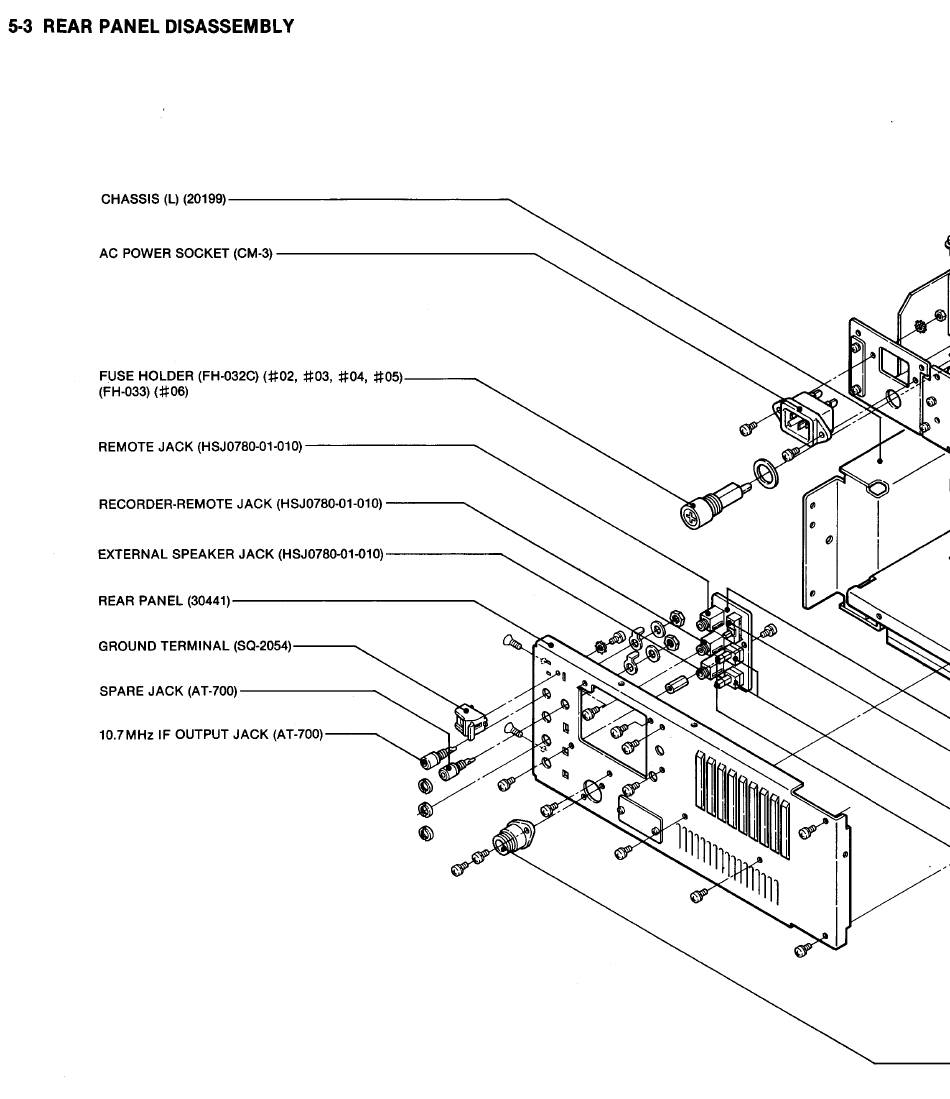

REAR PANEL DISASSEMBLY
CHASSIS (L) ( 2 0 1 9 9 ) - - - - - - - - - - - - - - . . . .
AC POWER SOCKET (CM-3) - - - - - - - - - - - - - . . . .
FUSE HOLDER (FH-032C) (#02, #03, #04, #05)----....
(FH-033) (#06)
REMOTE JACK (HSJ0780-01-010)---------....
RECORDER-REMOTE JACK (HSJ0780-01-010)----
REAR PANEL ( 3 0 4 4 1 ) - - - - - - - - - - -
GROUND TERMINAL (SQ-2054)----....
SPARE JACK (AT-700)--------..
10.7MHz IF OUTPUT JACK (AT-700)---
