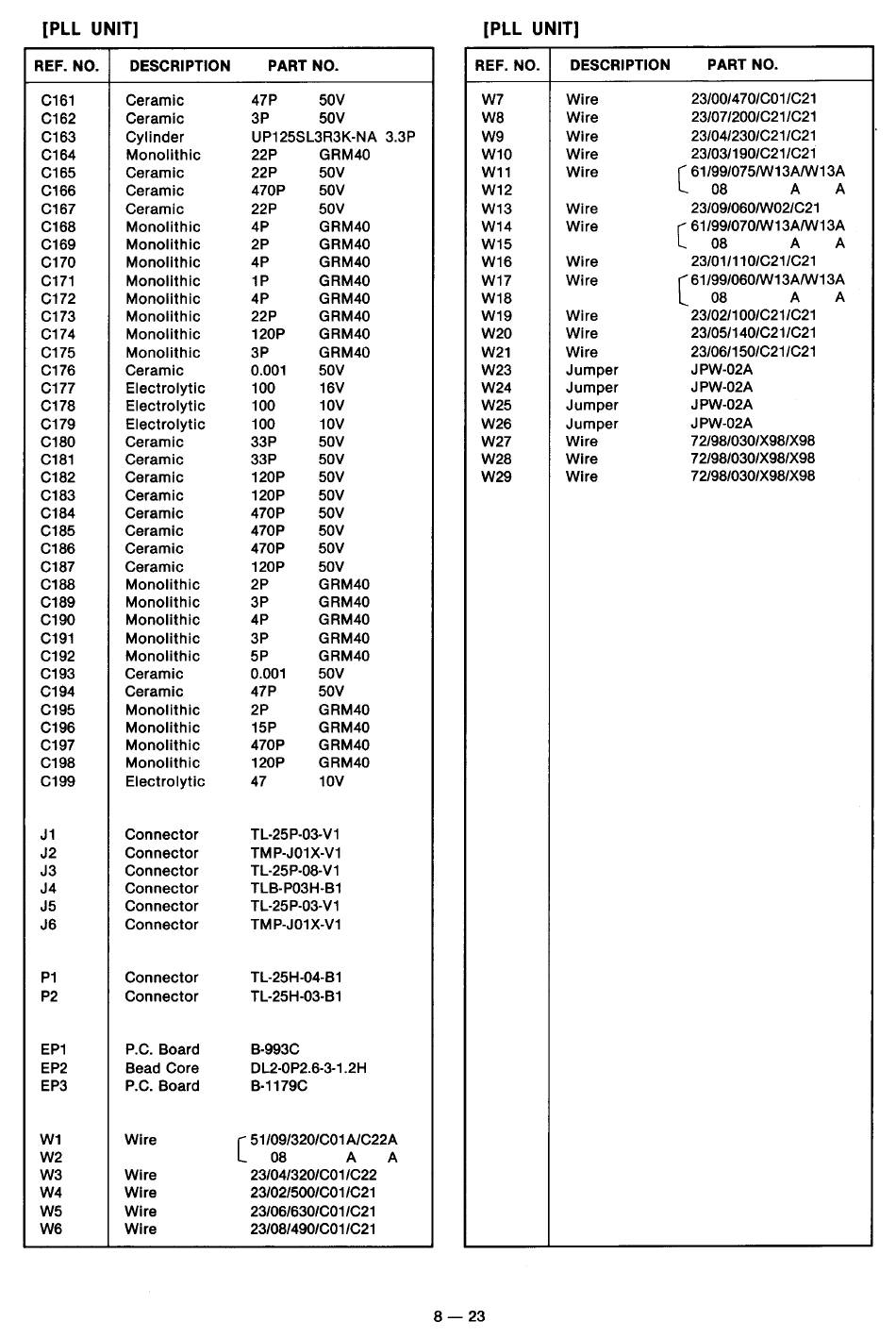

Icom IC-R7000 Service Manual page 93

[PLL UNIT] [PLL UNIT]
REF. NO. DESCRIPTION
PART NO. REF. NO. DESCRIPTION
PART NO.
C161 Ceramic 47P
50V W7 Wire
23/00/470/C01/C21
C162 Ceramic 3P
50V W8 Wire
23/07/200/C21 /C21
C163
Cylinder UP125SL3R3K·NA 3.3P W9 Wire
23/04/230/C21 /C21
C164
Monolithic 22P GRM40 W10 Wire
23/03/190/C21/C21
C165 Ceramic 22P 50V
C166 Ceramic 470P 50V
W11 Wire
c
61/99/075/W13A/W13A
W12
08 A A
C167 Ceramic
22P 50V W13 Wire 23/09/060/W02/C21
C168 Monolithic 4P GRM40
C169
Monolithic 2P GRM40
W14 Wire ( 61/99/070/W13A/W13A
W15
08 A A
C170 Monolithic 4P GRM40 W16
Wire 23/01/110/C21/C21
C171 Monolithic 1P GRM40
C172 Monolithic 4P GRM40
W17
Wire
[ 61/99/060/W13A/W13A
W18
08 A A
C173
Monolithic 22P GRM40 W19 Wire
23/02/1 OO/C21 /C21
C174 Monolithic 120P GRM40 W20
Wire 23/05/140/C21 /C21
C175 Monolithic 3P GRM40
W21 Wire
23/06/150/C21 /C21
C176
Ceramic 0.001 50V W23 Jumper
JPW·02A
C177 Electrolytic 100 16V W24 Jumper
JPW·02A
C178 Electrolytic 100 10V W25
Jumper JPW·02A
C179 Electrolytic 100 10V W26 Jumper
JPW-02A
C180 Ceramic
33P 50V W27 Wire
72/98/030/X98/X98
C181 Ceramic 33P 50V W28
Wire
72/98/030/X98/X98
C182 Ceramic
120P 50V W29 Wire
72/98/030/X98/X98
C183 Ceramic 120P 50V
C184 Ceramic 470P
50V
C185 Ceramic 470P 50V
C186 Ceramic 470P 50V
C187 Ceramic 120P 50V
C188 Monolithic 2P GRM40
C189 Monolithic 3P GRM40
C190
Monolithic 4P GRM40
C191 Monolithic 3P GRM40
C192 Monolithic 5P GRM40
C193 Ceramic
0.001 50V
C194 Ceramic 47P 50V
C195 Monolithic 2P GRM40
C196 Monolithic 15P GRM40
C197 Monolithic 470P GRM40
C198 Monolithic 120P GRM40
C199 Electrolytic 47 10V
J1 Connector TL·25P·03·V1
J2 Connector TMP·J01X·V1
J3 Connector TL·25P·08·V1
J4
Connector TLB·P03H·B1
J5 Connector TL·25P·03·V1
J6 Connector TMP·J01X·V1
P1 Connector TL·25H·04·B1
P2 Connector TL·25H·03·B1
EP1 P.C. Board B·993C
EP2 Bead Core DL2·0P2.6·3·1.2H
EP3 P.C. Board B·1179C
W1 Wire [ 51/09/320/C01A/C22A
W2 08 A A
W3 Wire 23/04/320/C01 /C22
W4 Wire
23/02/500/C01 /C21
W5 Wire 23/06/630/C01 /C21
W6 Wire 23/08/490/C01 /C21
8-23
