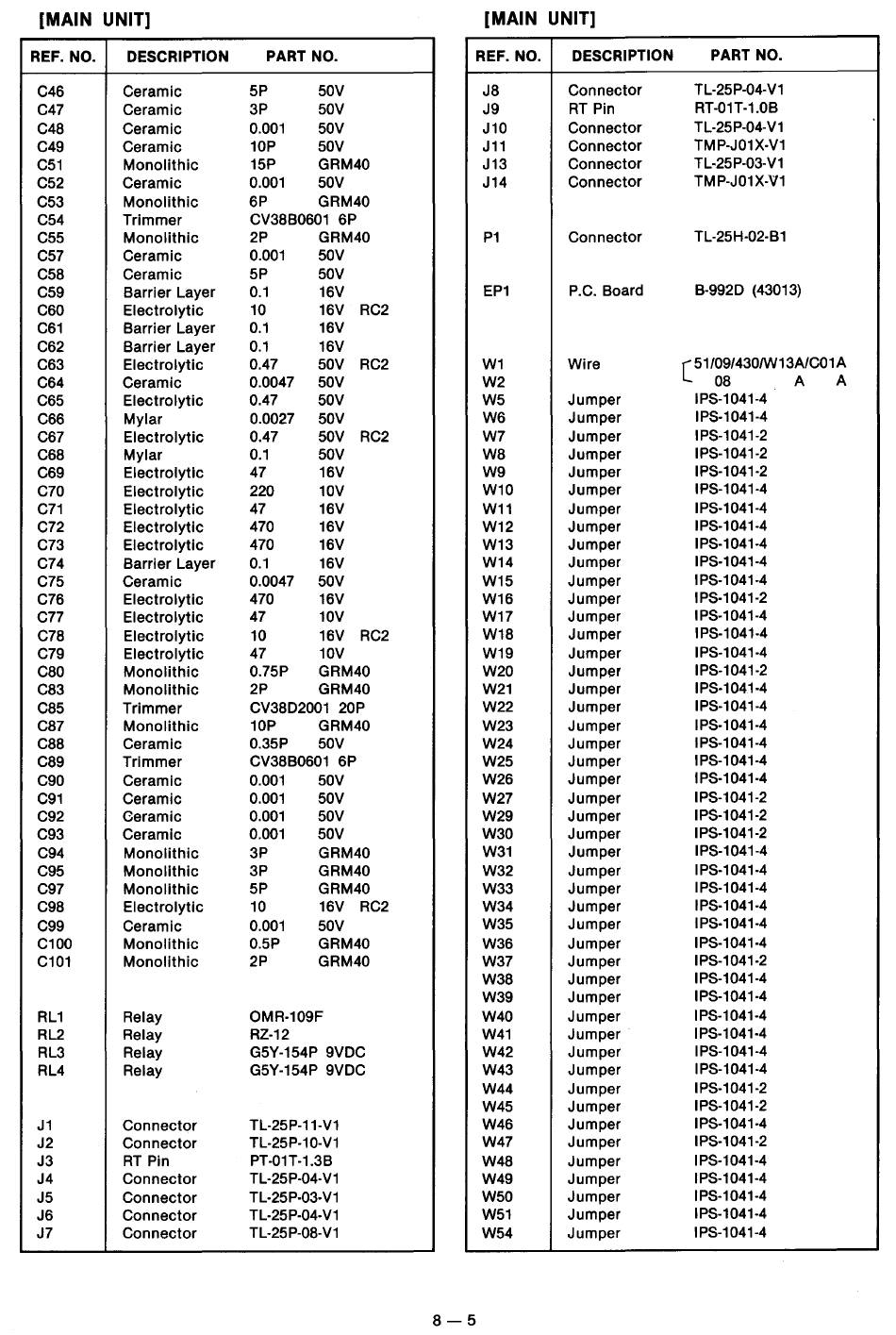

Icom IC-R7000 Service Manual page 75

[MAIN UNIT]
[MAIN UNIT]
REF. NO. DESCRIPTION PART NO. REF. NO.
DESCRIPTION
PART NO.
C46 Ceramic
5P 50V JS
Connector
TL-25P-04-V1
C47 Ceramic
3P 50V J9 RT Pin
RT-01T-1.0B
C48 Ceramic 0.001 50V J10
Connector
TL-25P-04-V1
C49 Ceramic 10P 50V
J11 Connector
TMP-J01X-V1
C51 Monolithic
15P GRM40 J13
Connector
TL·25P-03-V1
C52 Ceramic
0.001 50V J14
Connector
TMP-J01X-V1
C53 Monolithic
6P GRM40
C54 Trimmer
CV38B0601 6P
C55 Monolithic
2P GRM40 P1 Connector
TL-25H-02-B1
C57 Ceramic
0.001 50V
C58 Ceramic
5P 50V
C59 Barrier Layer
0.1 16V
EP1
P.C. Board B-9920 (43013)
C60
Electrolytic 10 16V RC2
C61
Barrier Layer 0.1 16V
C62 Barrier Layer 0.1 16V
C63 Electrolytic 0.47 50V RC2
C64 Ceramic 0.0047 50V
W1 Wire ( 51/09/430/W13A/C01A
W2
08 A A
C65 Electrolytic
0.47 50V W5 Jumper
IPS-1041-4
C66 Mylar
0.0027 50V
W6 Jumper
IPS-1041-4
C67
Electrolytic 0.47 50V RC2 W7 Jumper
IPS-1041-2
C68 Mylar
0.1 50V W8 Jumper
IPS-1041-2
C69 Electrolytic
47 16V W9 Jumper
IPS-1041-2
C70 Electrolytic 220 10V
W10 Jumper
IPS-1041-4
C71 Electrolytic 47 16V W11 Jumper
IPS-1041-4
C72 Electrolytic 470 16V W12 Jumper
IPS-1041-4
C73 Electrolytic 470 16V W13
Jumper IPS-1041-4
C74 Barrier Layer 0.1 16V
W14
Jumper
IPS-1041-4
C75 Ceramic
0.0047 50V W15 Jumper
IPS-1041-4
C76 Electrolytic
470 16V W16 Jumper
IPS-1041-2
C77 Electrolytic
47 10V W17 Jumper
IPS-1041-4
C78 Electrolytic
10 16V RC2
W18
Jumper IPS-1041-4
C79 Electrolytic
47 10V W19 Jumper
IPS-1041-4
C80
Monolithic 0.75P GRM40 W20 Jumper
IPS-1041-2
C83 Monolithic
2P GRM40 W21
Jumper IPS-1041·4
C85 Trimmer CV38D2001 20P
W22 Jumper
IPS-1041-4
C87 Monolithic 10P GRM40 W23 Jumper
IPS-1041-4
C88 Ceramic 0.35P 50V W24 Jumper
IPS-1041-4
C89 Trimmer
CV38B0601 6P W25 Jumper IPS-1041·4
C90 Ceramic 0.001 50V
W26 Jumper
IPS-1041-4
C91 Ceramic 0.001 50V W27
Jumper IPS-1041-2
C92 Ceramic
0.001 50V
W29
Jumper
IPS-1041-2
C93 Ceramic 0.001 50V
W30 Jumper
IPS-1041-2
C94 Monolithic
3P GRM40
W31 Jumper
IPS-1041-4
C95 Monolithic 3P GRM40 W32
Jumper
IPS-1041-4
C97 Monolithic
5P GRM40 W33 Jumper
IPS-1041·4
C98 Electrolytic
10 16V RC2 W34 Jumper
IPS-1041-4
C99 Ceramic 0.001 50V
W35 Jumper
IPS-1041-4
C100 Monolithic 0.5P GRM40 W36
Jumper
IPS-1041-4
C101 Monolithic
2P
GRM40 W37
Jumper
IPS-1041-2
W38 Jumper
IPS-1041-4
W39 Jumper
IPS-1041-4
RL1 Relay OMR-109F W40
Jumper IPS-1041-4
RL2 Relay RZ-12 W41
Jumper IPS-1041·4
RL3 Relay G5Y-154P 9VDC W42
Jumper IPS-1041·4
RL4 Relay
G5Y-154P 9VDC W43 Jumper IPS-1041·4
W44
Jumper IPS-1041-2
W45 Jumper
IPS-1041-2
J1
Connector
TL-25P-11-V1
W46 Jumper
IPS-1041-4
J2 Connector TL-25P-10-V1
W47 Jumper
IPS-1041-2
J3 RT Pin
PT-01T-1.3B
W48 Jumper
IPS-1041·4
J4 Connector
TL-25P-04-V1
W49 Jumper
IPS-1041·4
J5 Connector
TL-25P-03-V1 W50 Jumper
IPS-1041-4
J6 Connector
TL-25P-04-V1
W51 Jumper
IPS-1041-4
J7 Connector
TL-25P-08-V1
W54
Jumper
IPS-1041-4
8-5
