SECTION 5
MECHANICAL PARTS AND DISASSEMBLY
5·1

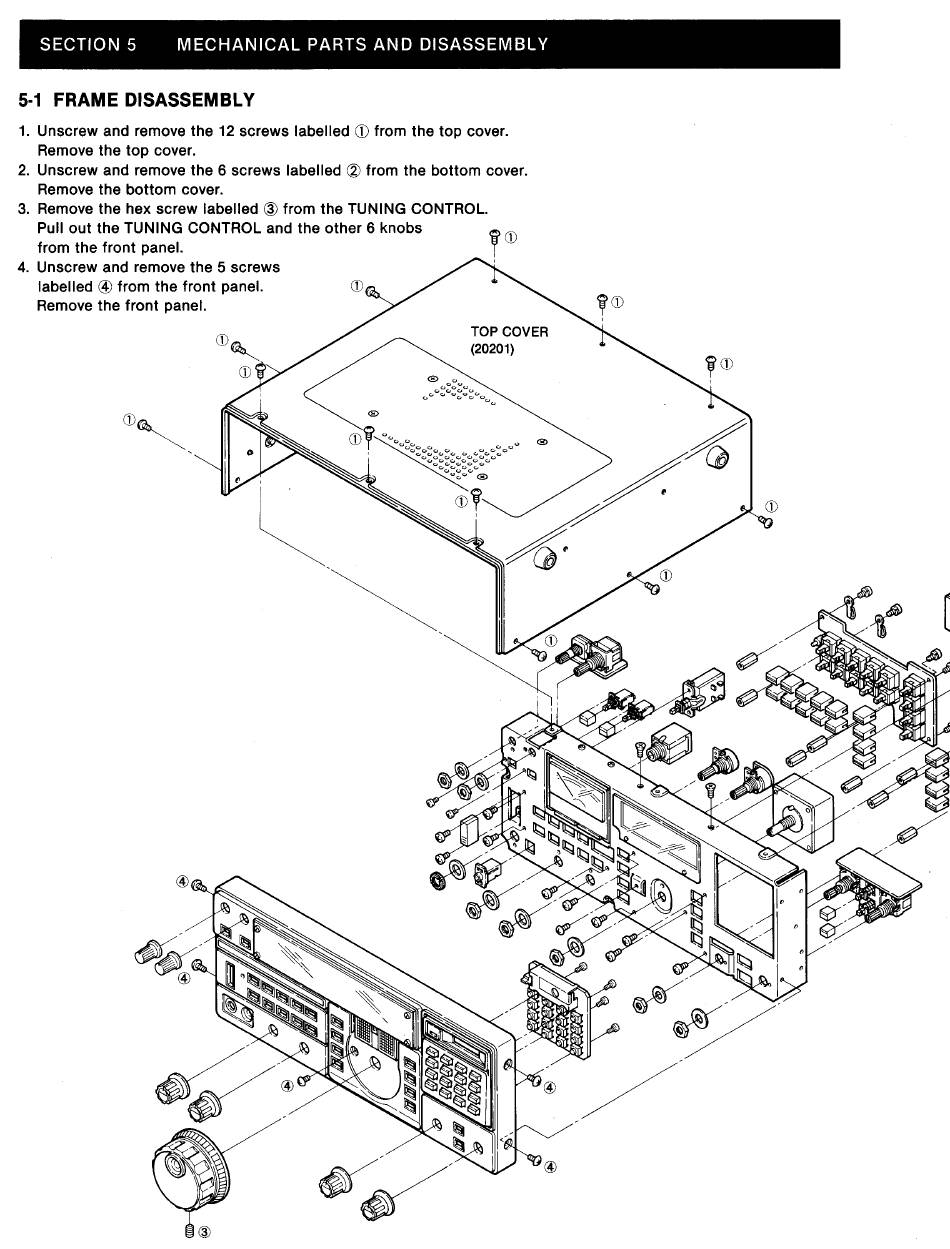

FRAME DISASSEMBLY
1. Unscrew and remove the 12 screws labelled
CD
from the top cover.
Remove the top cover.
2. Unscrew and remove the 6 screws labelled@ from the bottom cover.
Remove the bottom cover.
3. Remove the hex screw labelled@ from the TUNING CONTROL.
Pull out the TUNING CONTROL and the other 6 knobs
from the front panel.
4. Unscrew and remove the 5 screws
labelled
@
from the front panel.
Remove the front panel.
@
CD
TOP COVER
(20201)
(
